Chemistry Lab Lcd Digital 5L 380C Ceramic Hotplate Laboratory Mixer Heating Magnetic Stirrer

Product feature

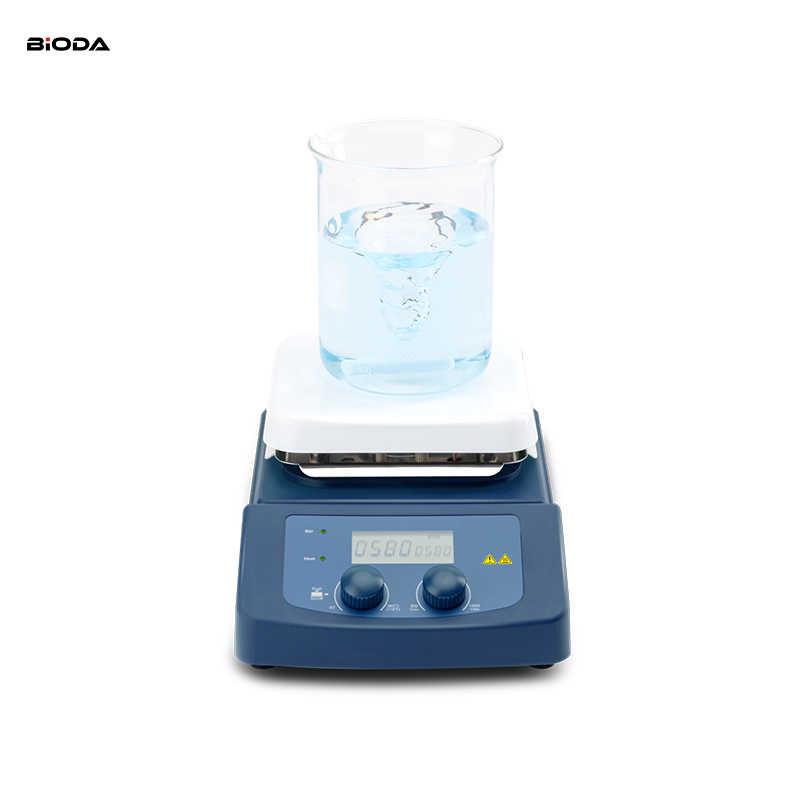

MS-H380-Pro LCD Digital Magnetic Hotplate Stirrer

• Maximum heating temperature is 380°C

• High resolution LCD displays actual temperature and speed

• Brushless DC motor is maintenance free

• Aluminum ceramIc coating work plate, allowing immediate heat transfer

• External temperature control is possible with temperature sensor PT1000

• Digital speed control with maximum speed up to 1500rpm

• Maximum stirring quantity of H2O at 5L

PRODUCT PARAMETERS

Cat.No.

8030261115

Work plate Dimension

140x140mm

Work plate material

Aluminum cover with ceramic coating

Max. stirring quantity [H2O]

5L

Speed range

200-1500rpm

Speed display

LCD

Temperature display

LCD

Heating temperature range

Room Temp.-380℃

Temperature control accuracy

±1℃(<100℃) ±1%(>100℃)

Temperature display accuracy

±0.1℃

External temperature sensor

PT1000 ( accuracy±0.2℃ )

"Hot" warning

-

Overheating temperature protection

420℃

Motor type

Brushless DC motor

Stirring positions

1

Max. magnetic bar length

50mm

Data connector

-

Timer function

-

Protection class

IP21

Motor rating output

1.8W

Power

510W

Heating output

500W

Voltage,Frequency

100-120V/200-240V，50/60Hz

Dimension [WxDxH]

320x180x108mm

Weight

2.2kg

Permissible ambient temperature

5-40℃

Permissible ambient humidity

80% RH
