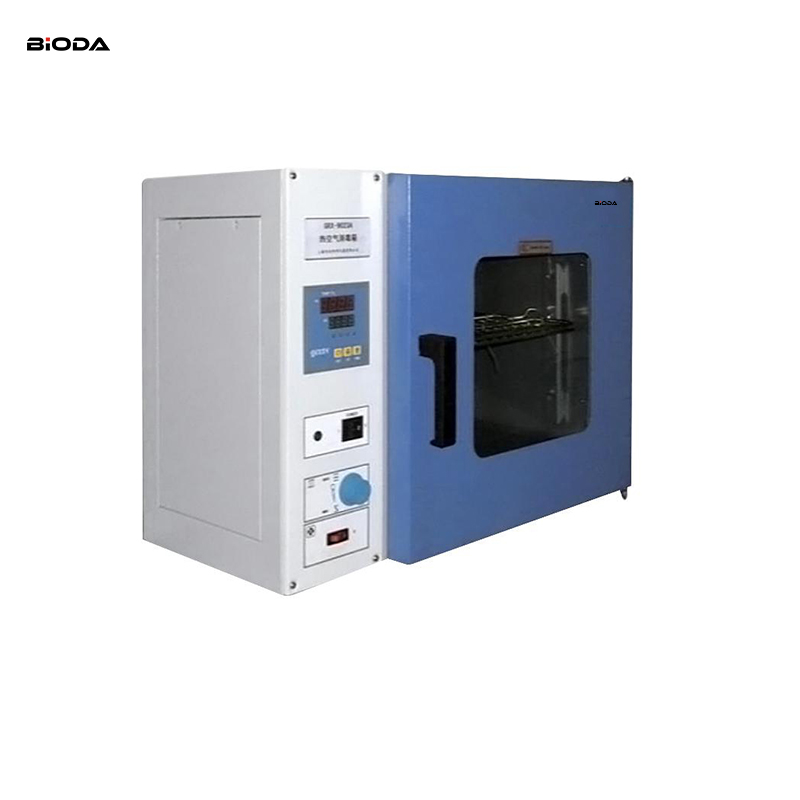

BRX series hot air oven
Hot air oven
Overview of use:
The use of high-temperature dry heat can oxidize microorganisms, denature proteins, and cause poisoning due to dielectric concentration. The main purpose is to destroy the cell protoplasm through oxidation and cause the death of microorganisms, so all microorganisms can be killed within a certain heating time.
Features:
1. Digital microcomputer temperature controller with timing function, accurate and reliable temperature control.
2. Rapid heating, forced convection, hot and dry air directly passes through the heated object, drying and disinfecting, and the time is significantly shortened.
3. It will automatically interrupt when the temperature exceeds the limit to ensure safety.
4. Adjustable damper, shelf spacing can be adjusted arbitrarily.
Technical parameters:
model | BRX-9023A | BRX-9053A | BRX-9073A | BRX-9123A | BRX-9203A | BRX-9403A | BRX-9603A |
voltage | 220V/50HZ | 380V/50HZ | |||||
Temperature control range | RT+10℃~300℃ | ||||||
Temperature resolution | 0.1℃ | ||||||
temperature fluctuations | ±1 ℃ | ||||||
Power consumption | 870W | 1120W | 1570W | 2070W | 2470W | 3300W | 4200W |
Chamber size (mm) | 340x325x320 | 420×395×350 | 450×400×450 | 550×450×550 | 600×600×650 | 600×550×1300 | 800×600×1300 |
Overall dimensions (mm) | 620x490x490 | 720x590x520 | 740x590x630 | 840x570x730 | 880x750x825 | 780x760x1800 | 980x800x1800 |
Cargo carrier (standard) | 2 | 3 | 4 | ||||
Timing range | 1-9999 minutes |
