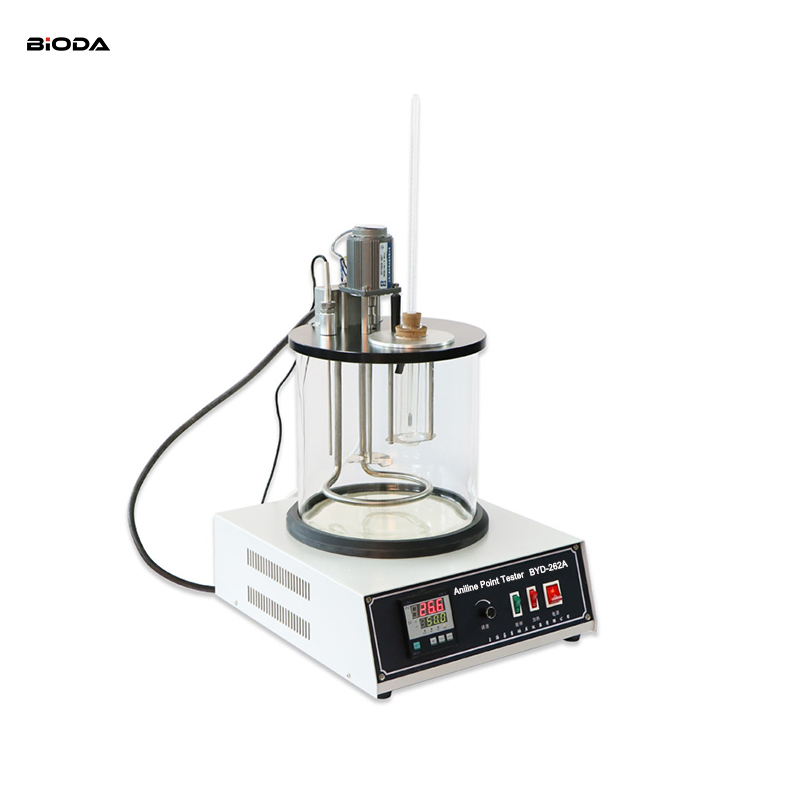

BYD-262A Aniline Point Tester

Summary

This instrument is designed and made as per test method two in national standard of People’s Republic of China GB/T262 Petroleum Products and Hydrocarbon Solvents-Determination of Aniline Point and Mixed Aniline Point. The standard GB/T262 is refer to standard ISO2977. It is also suitable for test method E in ASTM D611 Standard Test Methods for Aniline Point and Mixed Aniline Point of Petroleum Products and Hydrocarbon Solvents.

I. Main technical features

1. The design can meet requirements for determining aniline point of transparent oils and aniline point of dark color oils according to standards GB/T262, ISO 2977 and ASTM D611

2. Digital temperature controller. High temperature control precision. Stable and reliable. Easy to operate.

II. Main technical specifications

1. Power supply：  AC(220±10%)V, 50Hz

2. Heating power：  ≤2100W

3. Temperature range：  Ambient to 200℃

4. Temperature precision：  ≤0.5℃

5. Suitable environment：

  Ambient：15℃～35℃，

RH：≤85%；

6. Dimension：370mm×520mm×460mm

7. Net weight：14kg
