Touchscreen Advanced 4°C to 65°C Temperature Control Incubator Shaker
Features
Pull out rail platform.It can easily pull the platform out to load or unload fixtures and then push it back and lock, whichis fast and convenient to operation.

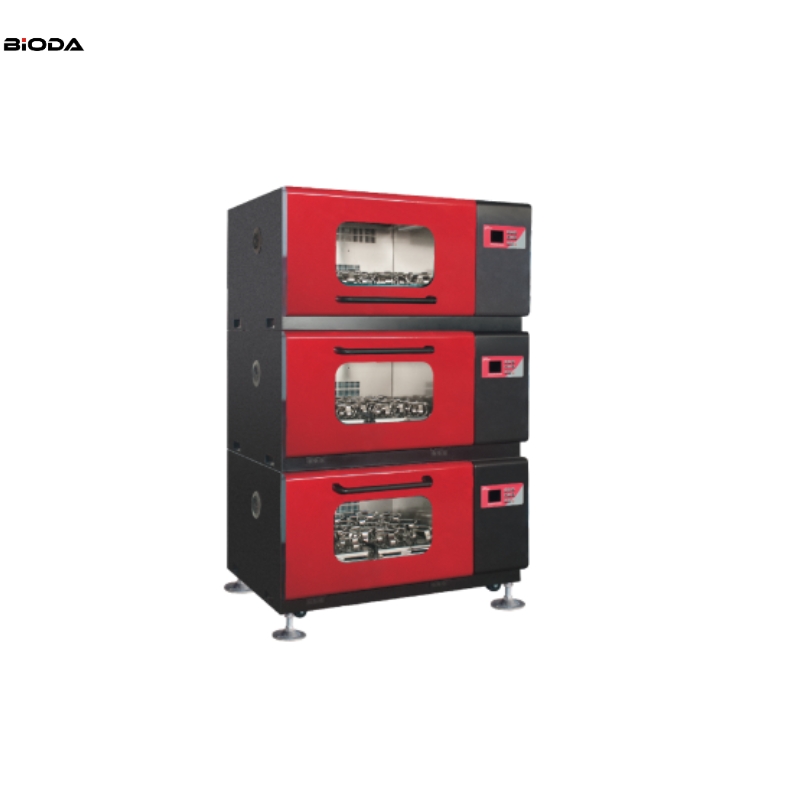

Three stackable layers structure.Each layer can be independently controlled. Temperature, speed and time can be set alone. Users can run any layer according to need.
Note: stackable incubator shaker would be optional high temperature incubator shaker (temperature up to 80 ℃); Humidifying incubator shaker.
High pressure water rinsesthe bottom of the chamber and platform. Simple cleaning, fast and efficient.
Automatic analyzing, listing table, charting and printing on downloaded dates.Itcan trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.
High quality servo motor.Speed control accurately, noiseless, durable and high efficiency.
Multi-steps rotate speed, temperature and time control systems.Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation.
Slow accelerate and decelerate design. Slowly start and stop, prevent bacteria or cells to shear force is too large and damage.
Advantaged air ductdesign.Air duct design contributes to high-precision temperature uniformity.
Automaticdefrosting function.It makes shakers operating stably in low temperature for a long time.
High-precision speed control. PID feedback control, the motor speed is stable and accurate, the accuracy of ±1RPM
High-precision temperature control. PID feedback control, the measurement accuracy of 0.1 °C. Audible and visual alarm, whenthe measured temperature deviation from the set value ≥±3 °C,
Unique drive system.It makes the machine running smoothly, stably, durably and reliably.
Open door protection. When the door opens, the machine stops running to protect the safety of the operator.
Super visual 7 inch color touch screen. Modular classification displays different functions, 7 inch touch screen under largeangle to display control parameters.
The display has a real time temperatureand speed curve display function. Historical data and real time date at the same diagram display, easyto check.
Memorizedand protectedoperating parameters.Unexpected power outage, the original set-up process can be automatically resumed.
Functionof encrypted and lockedoperating parameters.It can avoidhuman errors.
Continuouslyrunningor timing. Shakers can display the set time and time remaining
Unique slow-start design.Preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments
Aremote WIFI operationas an optional. Mobile phone operationcan be realized.
Clock and date can be displayed (touch screen only).
Technical parameters:
Model | HNYC-203T |
Specifications | |
Control model | P.I.D microprocessor chip |
Convection model | forced convection |
Shake model | convolution |
Display | 7 inch touch screen |
Control system | Multiple Programmable mode(temp,speed,time) |
Cyclotron frequency range(rpm) | 0；20-350(top floor 20-300)(To do static culture) |
Cyclotron frequency sensitivity(rpm) | ±1 |
Orbit Diameter(mm) | Φ26 |
Maximum capacity | 250ML×32 OR 500ML×21 OR 1L×13 OR 2L×7(per unit) |
Standard capacity | 500ml×20 |
Size of platform(mm) | 610×460 |
Timing range(h) | 0-999.9(Any time,continuous duty) |
Temperature range(℃） | 4°Cto 65°C（ 20°C） |
Temperature regulate sensitivity(℃） | ±0.1 |
Temperature uniformity(℃） | ±0.6（37℃） |
Temperature uniformity(℃） | ≤0.1（37℃） |
Number of platform | one(per unit) |
Outside dimension（W*D*H)（mm） | 1120×790×620(per unit) |
Capacity（L) | 180 |
Power（W) | 1200 |
Power supply | AC220±10% 50HZ |
