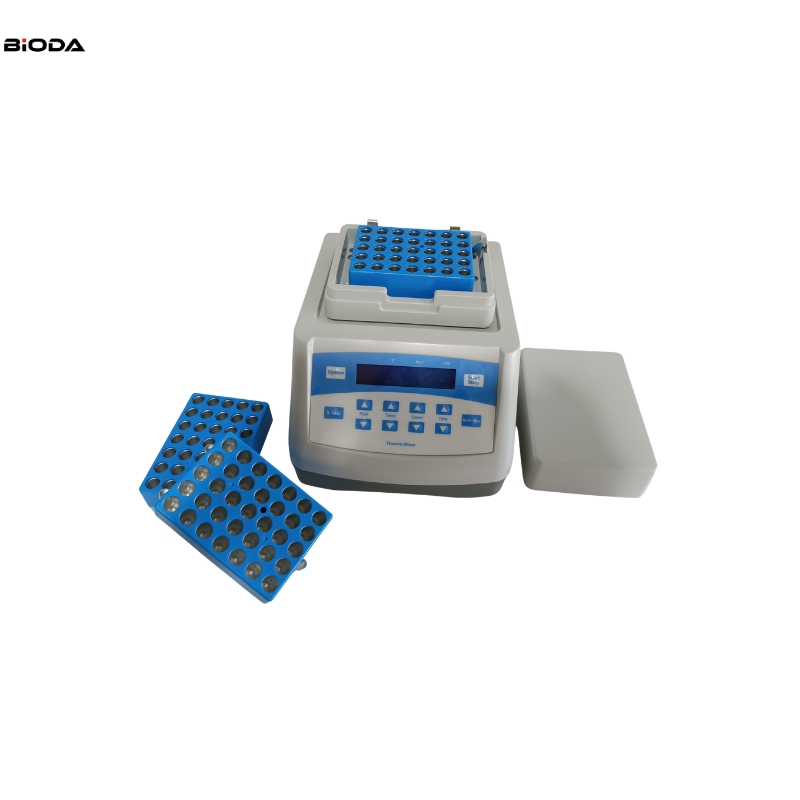

TS100 Thermo Shaker

TS100 Thermo Shaker

TS100 thermo shaker is a temperature controlled shaker, which is useful for a variety of molecular biology applications. Speed, time and temperature settings are continuously visible on the LCD, simultaneously showing both actual and selected values. Inte
Send Inquiry

Thermo ShakerTS100

Description:

TS100 thermo shaker is a temperature controlled shaker, which is useful for a variety of molecular biology applications. Speed, time and temperature settings are continuously visible on the LCD, simultaneously showing both actual and selected values. Integral over-temperature control ensures long time, safety and sample integrity.



Features:

LCD display. It is easy to setup and use.

Reliable design with inner extra temperature protection.

Each device is equipped with lifter that is easy to replace different blocks.

Digital accuracy and convenience.

Precision wells for uniform thermal transfer.

Assorted blocks for a wide variety of tube sizes.

Brushless DC Motor: noiseless long service life maintenance-free.

Conform to CE safety standard.

Accurately control and display time, temperature and speed.

Applications:

Storing enzymes or DNA libraries at your work station.

Transporting samples from the field at exactly the right temperature.

Heating samples in the field.

Enzyme reactions and deactivations.

PCR sample preparation.



Parameters:

Model

TS100

Temp setting range

0~100

Temp control range

RT.+5~100

Time range

1min ~ 99h59min/∞

Temp accuracy

≤±0.3*

Display accuracy

0.1

Temp uniformity

≤±0.3*

Speed range

200~1800rpm

Orbit

3mm

Heating time

≤12min(from 25 to 100)*

Multi point running

Yes(Max 5points)

Multi cycle

Yes(Max 99times)

Auto heating

Yes

Auto running

Yes

Auto resume to run

Yes

Power supply

150W

Voltage

AC220V or AC110V/50-60Hz

Fuse

250V 3A  Ф5×20

Dimension(mm)

260x195x150

Weight(kg)

7.0


Optional blocks

Type

Capacity

Temp range

Max Speed

MD30

96x0.2ml

0~100

1800rpm

MD31

54x0.5ml

0~100

1800rpm

MD32

35x1.5ml

0~100

1800rpm

MD33

35x2.0ml

0~100

1800rpm

MD34

20x1.5ml+15x0.5ml

0~100

1800rpm

MD35

96x0.2ml

0~100

1800rpm

MD36

24x5ml

0~100

1000rpm

MD37

15x10ml

0~100

1000rpm

MD38

12x15ml

0~100

800rpm

MD39

6x50ml(round-shape bottom)

0~100

800rpm

MD39-S

6x50ml(cone-shape bottom)

0~100

800rpm
