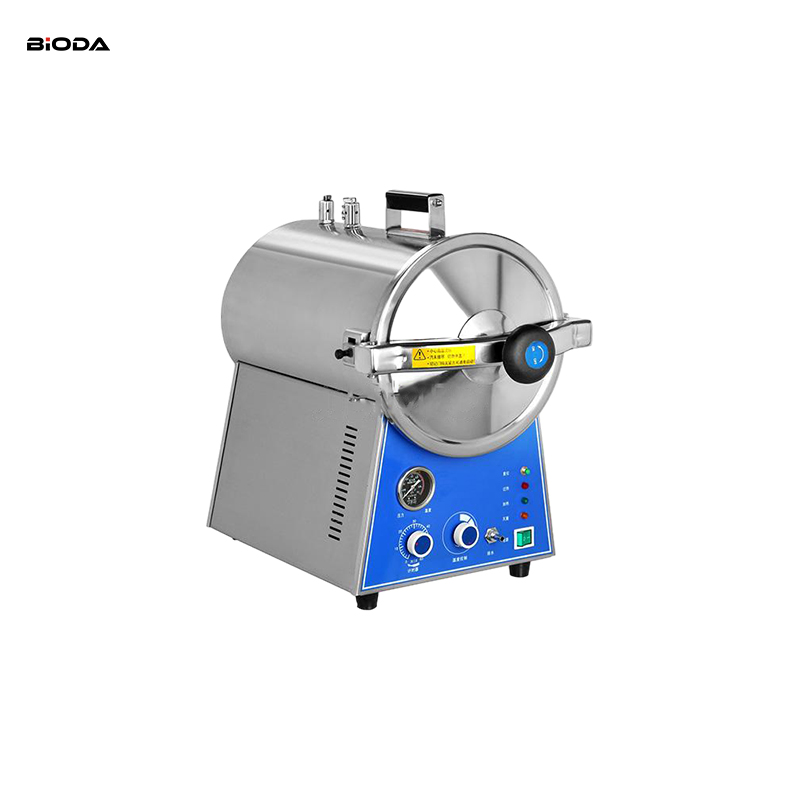

TM-T16J/TM-T24J Table top steam sterilizer

TM-T16J/TM-T24J Table top steam sterilizer

The table type sterilizers are safely autocontrolled, which are designed for the dental clinics, hospitals, school lab. scientific research institutionsand laboratory.
Send Inquiry

Application

The table type sterilizers are safely autocontrolled, which are designed for the dental clinics, hospitals, school lab. scientific research institutionsand laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culturemedium and biological dressing, food, etc.


Characteristics

• Sterilizing course: Automatic sterilization controlled by computer, easy to operate.

• Maximum temperature: 134℃, suitable for 4-6 minutes flash sterilizing.

• Safe protection of water lacking.

• With over heat and over pressure protection.

• After sterilization it will automatically cut the power and then alarm.

• Fully stainless steel structure.


Technical parameters

MODEL

TM-T16J

TM-T24J

Technical Data

Stenilizing chamber volume

16L

φ250×360mm

24L

φ270×410mm

Working pressure

0.22Mpa

Working temperature

134℃

Temperature adjust range

105-134℃

Timer range

0-60min

Heat average

≤±1℃

Power

1.5KW/AC220V.50Hz

Sterilizing plate

340×200×30(3piece)


Dimensionmm

545×328×423

560×350×500

Exerior package dimensionmm

605×390×480

620×410×570

G.W/N.W

17/15Kg

20/18Kg
