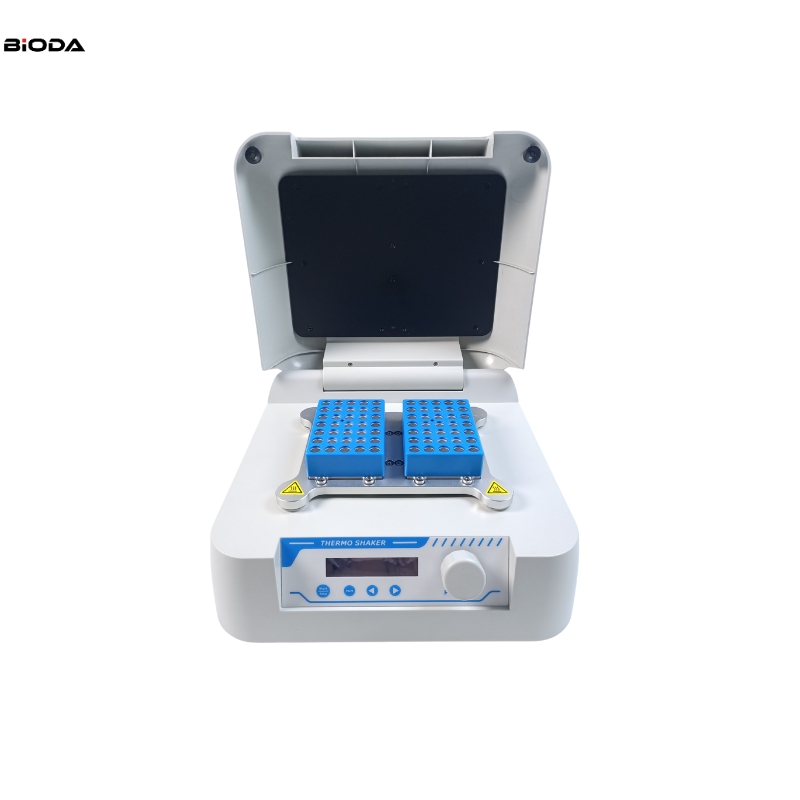

TPS2000 Thermo Shaker/Mixer (with heating lid)

TPS2000 Thermo Shaker/Mixer (with heating lid)

TPS2000 Thermo Shaker (with heating lid) is a multipurpose thermostatic shaker controlled by brushless DC motor. Its PID intelligent temperature control technology ensures the temperature accuracy, automatically adjusts the heating rate and reduces waitin
Send Inquiry

Thermo Shaker/Mixer (with heating lid)TPS2000



Description:

TPS2000 Thermo Shaker (with heating lid) is a multipurpose thermostatic shaker controlled by brushless DC motor. Its PID intelligent temperature control technology ensures the temperature accuracy, automatically adjusts the heating rate and reduces waiting time. Heating lid temperature control function can effectively prevent the phenomenon of evaporation and tube burst, and greatly improve the temperature uniformity in the test tube. It is the ideal automation tool for sample incubation, catalysis, blending and preservation.



Features:

LCD display. It is easy to setup and use.

Accurate temperature control, high stability.

Dual-blocks with large capacity.

Max. speed to 2000rpm.

Two options for heating lid temperature control: automatic or manual.

Brushless DC motor: noiseless long service life maintenance-free.

Support multi points running function.

Automatic preheating function.

Auto resume to run after power failure.

Automatic running function.

Built-in temperature calibration function.

Built-in over-heating protection device, safe and reliable.



Parameters:

Project

Parameters

Temp. setting range

0°C~100°C

Temp. control range

RT.+5°C~100°C

Time range

1min~99h59min/∞

Temp. accuracy

≤±0.2°C@37°C

Display accuracy

0.1°C

Temp. uniformity

≤±0.2°C@37°C

Heating lid temp. setting range

Auto/0~+15°C

Heating lid temp. control mode

Automatic / Manual

Speed range

200~2000rpm

Orbit

2mm

Heating time

15min(from 25°C to 100°C)

Multi point running

Yes(Max 5points)

Multi cycle

Yes(Max 99times)

Auto constant temp. at the end of run

Yes

Auto preheating

Yes

Auto running

Yes

Auto resume to run

Yes

Block quantity

2

Power supply

450W

Voltage

AC220V/50-60Hz

Fuse

250V 3A  Ф5×20

Dimension(mm)

340x320x200

Weight(kg)

10.7


Optional blocks

Type

Capacity

Max Speed

MD30

96x0.2ml PCR Plate

2000rpm

MD31

54x0.5ml centrifuge tube

2000rpm

MD32

35x1.5ml centrifuge tube

2000rpm

MD33

35x2.0ml centrifuge tube

2000rpm

MD34

20x1.5ml+15x0.5ml centrifuge tube

2000rpm
