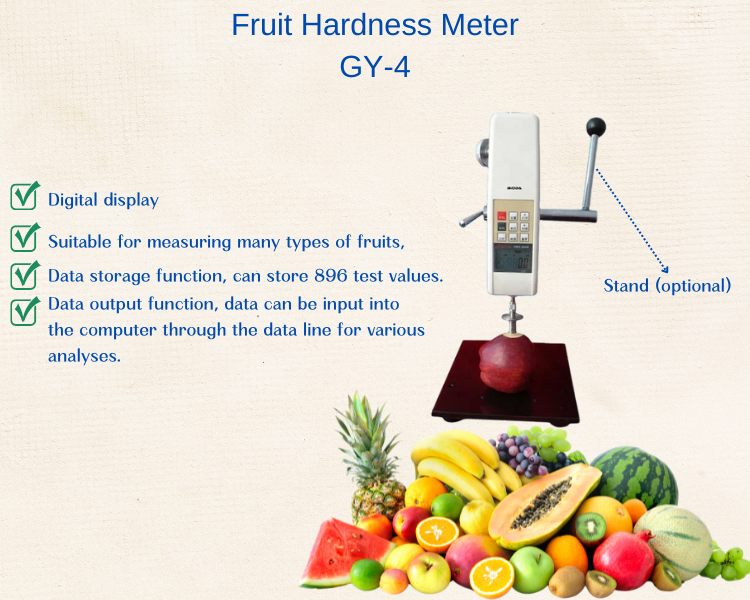

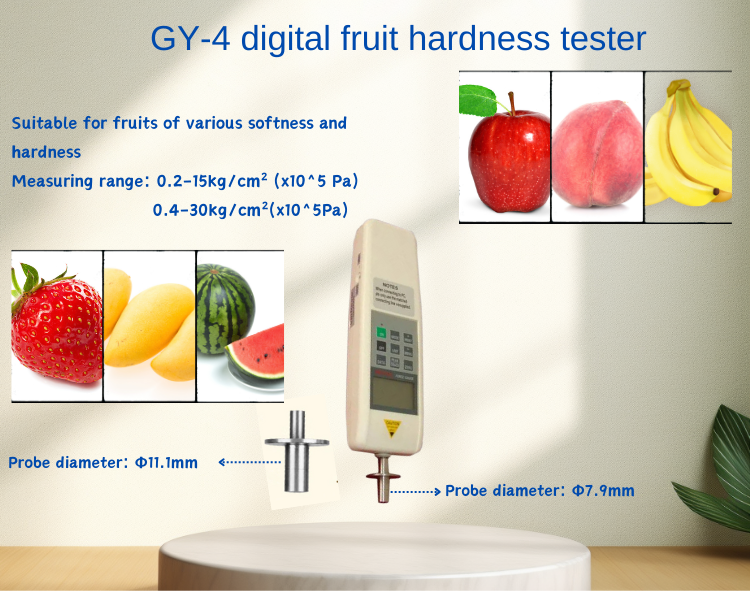

Digital Fruit Hardness Meter GY-4

Digital Fruit Hardness Meter GY-4

GY-4 digital display fruit hardness tester is suitable for many types of fruit measurement, the instrument has a data storage function, can store 896 test values, suitable for fruit tree research departments, fruit farms, fruit companies, universities and colleges and other units to use!

Features:

1, data storage function, can store 896 test values;

2、Keep the peak value display until manually cleared;

3、Data output function, the data can be input into the computer through the data line to do all kinds of analysis;

4, automatic peak function, keep displaying the peak value 2 seconds after the automatic lifting;

5, green, 10 minutes without operation automatically shut down;

6, rechargeable battery, with low voltage display function;

7, 6-bit large screen display.

Technical parameters:

Resolution: 0.01kg/cm2

Unit: kg/cm2 (×105 Pa)

Output interface: RS232 nine hole socket

Power supply: rechargeable battery charger (charging voltage 100∨～240∨)

Sensor structure: S-type high precision sensor (built-in)

Operating Temperature: 5℃～35

Relative humidity: 15%～80%RH

Working environment: no vibration source and corrosive medium around.

Net weight: 450g

Overall Dimension: 230×66×36mm

Optional device: Fruit Hardness Tester Test Rack GY-4-J

Features:

1, hand pressure type operation, simple and stable operation.

2, compact structure, gear, rack and pinion type transmission

3, specially equipped for GY-4 digital display fruit hardness tester, is more stable and accurate measurement results.

4, the installation of solid, large feet, heavy body, and can be mounted on the table (table) surface use of this machine, so that the rack is more stable.

GY-4-J Technical parameters:

1、Stroke: 90mm

2、Maximum load: 500N

3, the shape of the inch (length x width x height): 255x240x505mm

4、Net weight: 12kg
