Digital Temperature Speed Control Chemical Mixing 550C Magnetic Stirrer Hotplate
Product feature

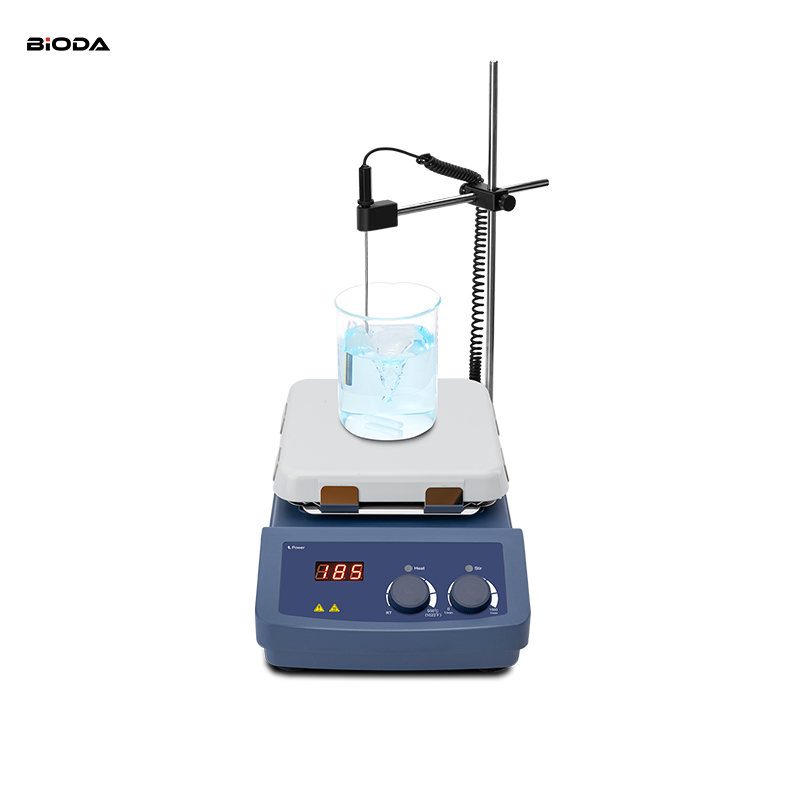

MS7-H550-S LED Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate
LED displays actual temperature
Built-in PID controller ensures safe heating of the medium with overheating protection
Maximum heating plate temperature up to 550℃
Glass ceramic work plate is resistant to corrosion and is easy to clean
External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy of ±0. 2℃
Digital speed control with maximum range of 1500rpm
Outstanding brushless DC motor offers more stirring power
Two knobs enable easy adjustment of speed and temperature
“HOT” warning flashes when work plate temperature is above 50℃ even when hotplate is turned off
Remote function provides PC control and data transmission
PRODUCT PARAMETERS
Cat.No.
8030122211
Work plate Dimension
184x184mm ( 7 inch )
Work plate material
Glass ceramic
Max. stirring quantity [H2O]
10L
Speed range
0-1500rpm
Speed display
Scale
Temperature display
LED
Heating temperature range
Room Temp.-550℃, increment 5℃
Temperature control accuracy
±10℃
Temperature display accuracy
±1℃
External temperature sensor
PT1000 (accuracy ±0.2℃)
"Hot" warning
50°C
Overheating temperature protection
580°C
Motor type
Shaded pole motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
-
Timer function
-
Protection class
IP21
Motor rating output
1.5W
Power
1030W
Heating output
1000W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
215x360x112mm
Weight
4.5KG
Permissible ambient temperature
5~40℃
Permissible ambient humidity
80% RH
