Lab LCD Digital 20l Mixing 550℃ Hotplate Ceramic Laboratory Heating Magnetic Stirrer

Product feature

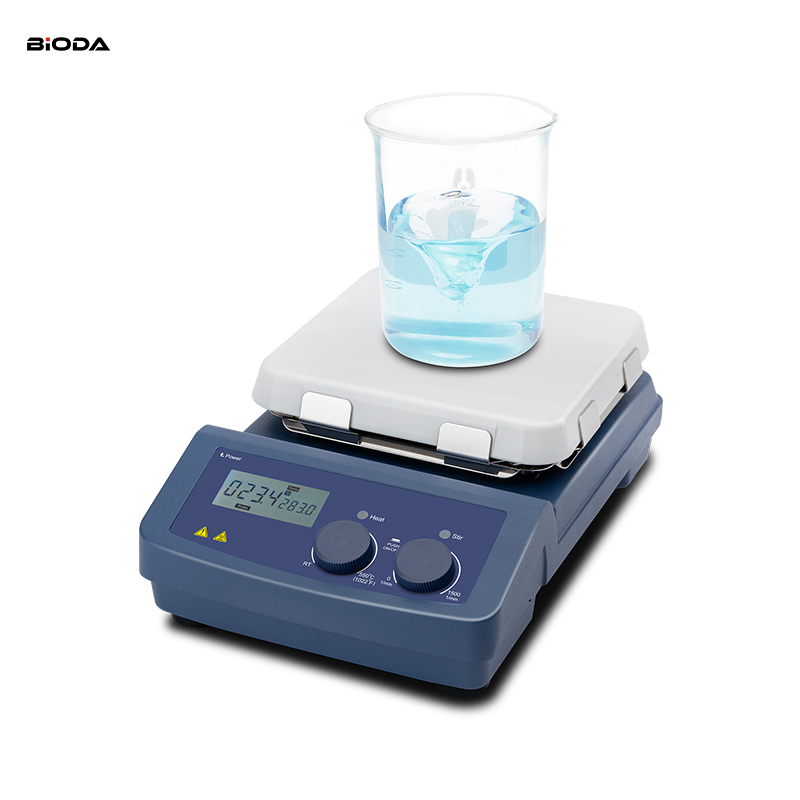

MS7-H550-Pro LCD Digital Magnetic Hotplate Stirrer With 7 Inch Ceramic Plate

• LCD displays actual temperature & speed

• Built-in PID controller ensures safe heating of the medium with overheating protection

• Maximum heating plate temperature up to 550℃

• Glass ceramic work plate is resistant to corrosion and is easy to clean

• External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy of ±0. 2℃

• Digital speed control with maximum range of 1500rpm

• Outstanding brushless DC motor offers more stirring power

• Two knobs enable easy adjustment of speed and temperature

• “HOT” warning flashes when work plate temperature is above 50℃ even when hotplate is turned off

• Remote function provides PC control and data transmission

PRODUCT PARAMETERS

Cat.No.

8030122111

Work plate Dimension

184x184mm ( 7 inch )

Work plate material

Glass ceramic

Max. stirring quantity [H2O]

20L

Speed range

100-1500rpm，resolution±1rpm

Speed display

LCD

Temperature display

LCD

Heating temperature range

Room Temp.-550℃, increment 1℃

Temperature control accuracy

±1℃(<100℃) ±1%(>100℃)

Temperature display accuracy

±0.1℃

External temperature sensor

PT1000(accuracy ±0.2℃)

"Hot" warning

50℃

Overheating temperature protection

580℃

Motor type

Brushless DC motor

Stirring positions

1

Max. magnetic bar length

80mm

Data connector

RS232

Timer function

-

Protection class

IP21

Motor rating output

10W

Power

1050W

Heating output

1000W

Voltage,Frequency

100-120V/200-240V，50/60Hz

Dimension [WxDxH]

215x360x112mm

Weight

5.3kg

Permissible ambient temperature

5-40℃

Permissible ambient humidity

80% RH
