Laboratory High Speed Programmable 20l Glass Ceramic Hotplate Electric Mixer Magnetic Stirrer

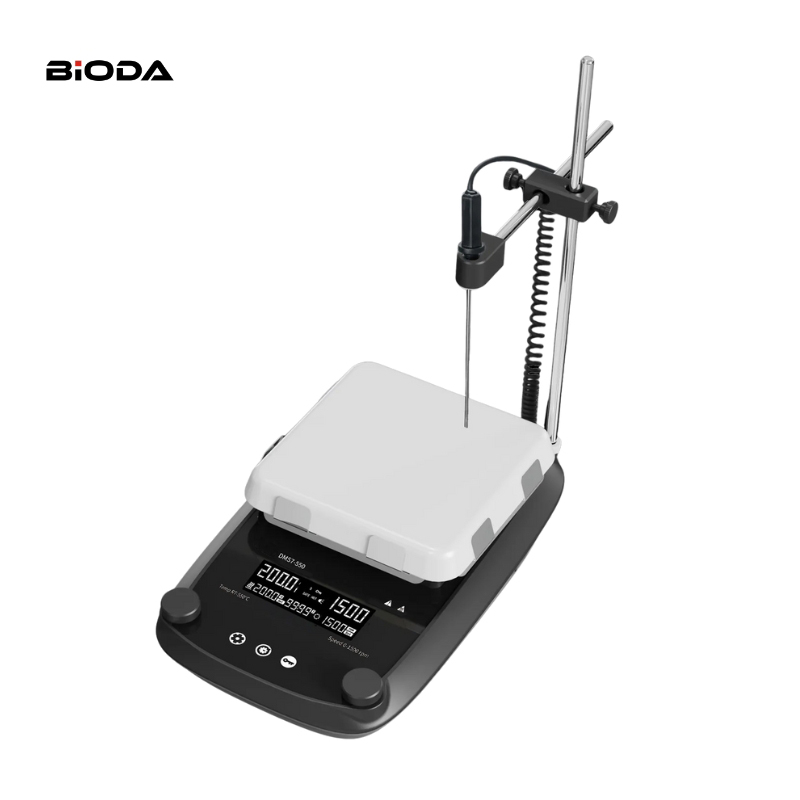

DMS7-550M LCD Glass Ceramic Heating Magnetic Stirrer with Timer
The ceramic plate has strong corrosion resistance, capable of withstanding strong acids, alkalis, and high temperatures. It is easy to clean solvents, oils, or other contaminants that may accidentally spill.
The corrosion-resistant full metal casing has excellent heat dissipation performance and reliable fire protection capabilities.
The efficient flow platform and waterproof design prevent liquids from entering the interior of the machine, protecting the electronic components from corrosion.
High-temperature resistant, strong magnetic stirrers provide powerful stirring force, suitable for mixing viscous liquids.
Safety lock to prevent accidental changes in operating status.
Buzzer: When the machine malfunctions or the countdown for the timing function ends, the buzzer emits a "beep" sound to alert the user.
Residual heat warning: When the plate temperature exceeds 50°C, heating will be automatically turned off, and the display will show a flashing "HOT" warning. Even when the power is turned off, the "HOT" warning will continue flashing on the display, alerting the user of the high temperature.
Two independent safety circuits continuously monitor the device. In case of overheating, sensor malfunction, or a system error, the machine will stop heating. If a short circuit occurs, the power will be automatically cut off, ensuring the operator's safety.
DC brushless motor: Spark-free, long lifespan, low noise, maintenance-free, and smooth operation.
LCD display: Shows set and real-time values for speed, time, and temperature, offering clear and intuitive readings.
The timer function is available with a range of 1 minute to 99 hours and 59 minutes. Once the countdown ends, heating will stop, but stirring will continue to avoid thermal damage to the sample.
Remote control function is available, allowing the device to be connected to a computer.
Safety temperature can be set.
PRODUCT PARAMETERS
Cat.No.
8021482211
Work plate Dimension
184x184mm（7inch）
Work plate material
Glass ceramic
Max. stirring quantity [H2O]
20L
Speed range
50~1500rpm，increment 1rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room Temp.-550℃，increment1℃
Temperature control accuracy
±1℃(<100℃) | ±1%(>100℃)
Temperature display accuracy
0.1℃
External temperature sensor
PT1000(accuracy±0.2℃ )
"Hot" warning
50℃
Overheating temperature protection
580℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
RS232
Timer function
1min-99h59min
Protection class
IP21
Motor rating output
10W
Power
1200W
Heating output
1150W
Voltage,Frequency
100-120/200-240V，50/60Hz
Dimension [WxDxH]
360x230x110mm
Weight
4.3kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80%RH
