BOR-20 Ultra Pure Type I 18.2 MΩ·cm Water Treatment System
BOR-20 Ultra Pure Type I 18.2 MΩ·cm Water Treatment System

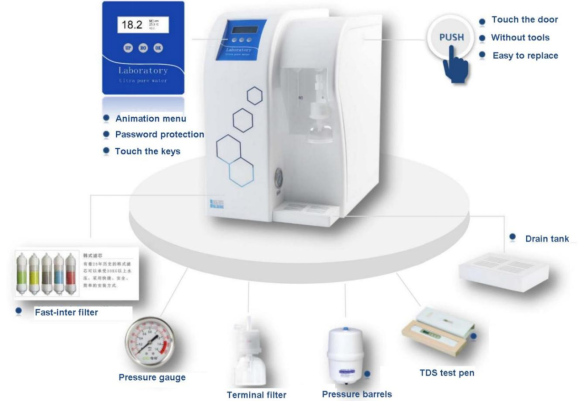

Product Features
Ø The case adopts ABS plastic spraying process; the appearance adopts curve design to be more beautiful and generous with removable drain tank
Ø All Korean-style quick-inserted filter columns in the entire system are built into the chassis; easy maintenance and replacement;
Ø Water quality online monitoring system, which can measure the water quality of the produced water immediately;
Ø Equipped with a portable TDS pen, which can test TDS content, conductance and water temperature anytime and anywhere;
Ø Touch the keys, two water quality, ready to use;
Ø The case adopts ABS plastic spraying process; the appearance adopts curve design to be more beautiful and generous with removable drain tank
Ø All Korean-style quick-inserted filter columns in the entire system are built into the chassis; easy maintenance and replacement;
Ø Water quality online monitoring system, which can measure the water quality of the produced water immediately;
Ø Equipped with a portable TDS pen, which can test TDS content, conductance and water temperature anytime and anywhere;
Ø Touch the keys, two water quality, ready to use;

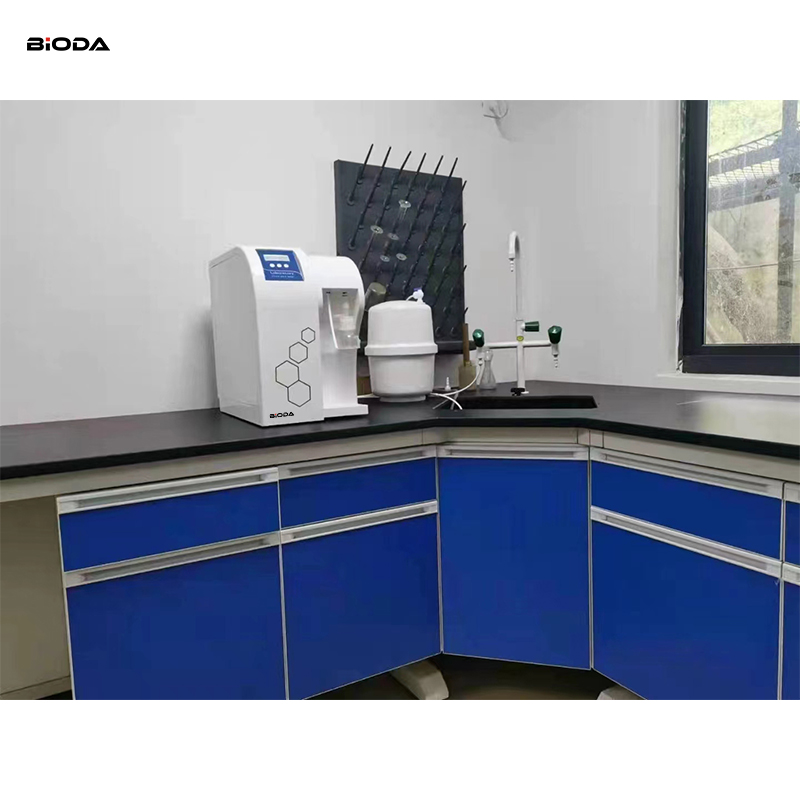

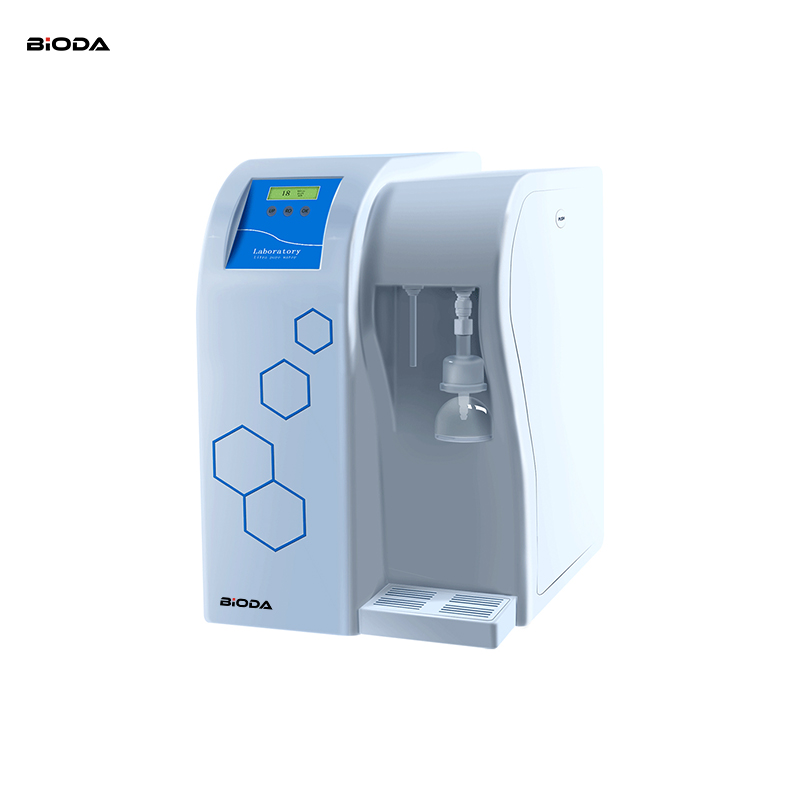

Product lmage
Product parameter
BOR series ultrapure water machine | ||||
Type classification | Standard | Low Endotoxin | Low TOC | Comprehensive |
The machine model | BOR | BOR-F | BOR-V | BOR-VF |
Water rate | 10/20/30 lph | |||
The water requirements | Urban tap water, inlet water pressure: 0.15-0.5mpa, water temperature 5-40℃ | |||
RO water Parameter | ||||
Ion rejection rate | 97%-99% (when using a new RO membrane) | |||
Organic matter rejection rate | >99% when MW>200 Dalton | |||
Particle and bacterial rejection | > 99% | |||
UP water Parameter(ASTM TYPE I grade water) | ||||
Resistivity (25℃) | 18.25 M Ω. Cm @ 25 ℃ | |||
Heavy metal ion | < 0.01 ppb | |||
Total organic carbon (TOC) * | <10 ppb | <3 ppb | ||
bacteria | < 1 cfu/ml *(with terminal filter) | |||
Particulate matter (> 0.1 microns) | <1/ml | |||
Pyrogen (endotoxin) | N/A | < 0.001 Eu/ml | N/A | < 0.001 Eu/ml |
Ribonuclease (RNases) | N/A | <1pg/ml | N/A | <1pg/ml |
Deoxyribonucleases | N/A | <5pg/ml | N/A | <5pg/ml |
Application | All kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment | High sensitivity ICP/MS, PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute | Atomic absorption/emission spectrometry, mass spectrometry, TOC detection, environmental monitoring, biochip development, trace organic matter analysis | Molecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing |
Electrical requirements | 100-240V, 50/60Hz, 48-72W | |||
The system configuration | Host machine (including 1 set of purification column)+12L pressure water storage tank +TDS pen + accessory bag | |||

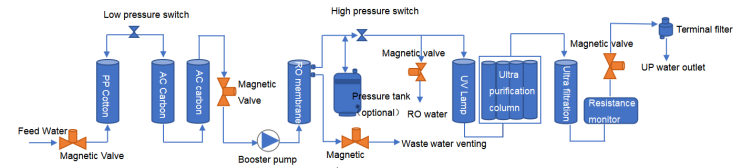

Process(*BOR-VF configuration)

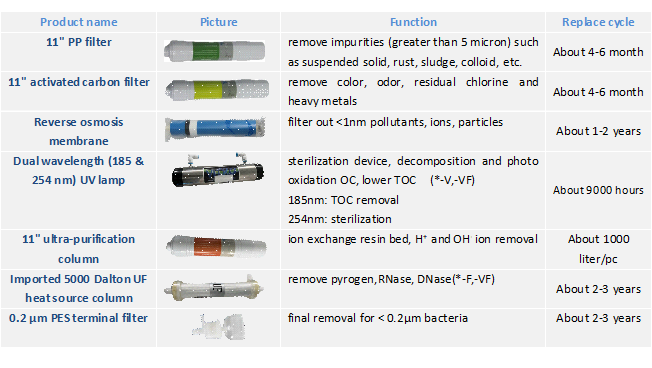

Filter consumables list
