Lcd Display Corrosion Resistance Ceramic Coated Aluminum Plate Magnetic Stirrer with Timer
Product feature

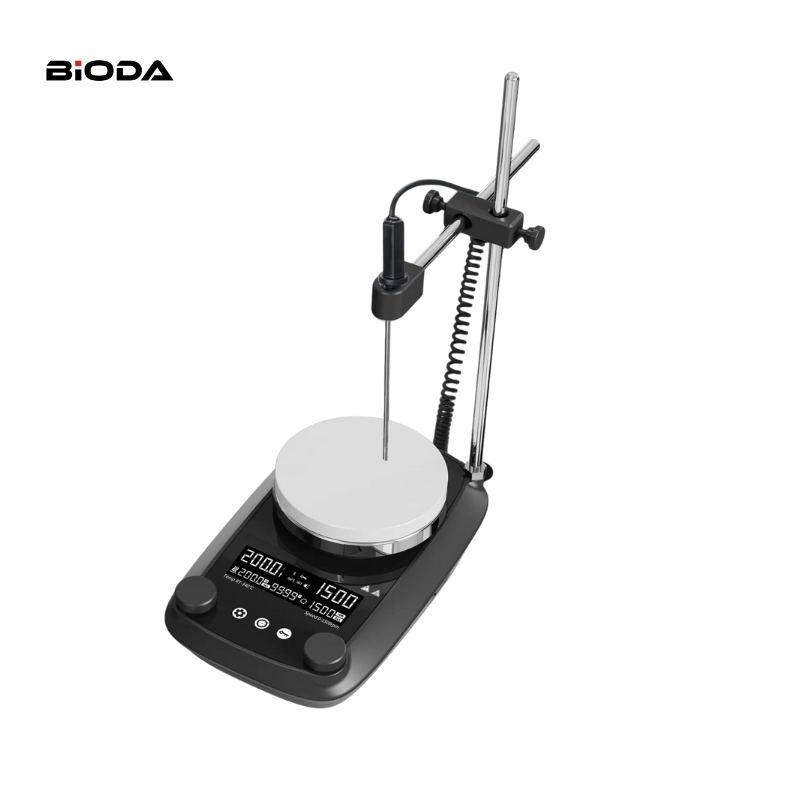

DMS5-340 LCD Heating Magnetic Stirrer with Timer
Ceramic-coated aluminum plate, with strong corrosion resistance and easy to clean.
Corrosion-resistant full metal casing with excellent heat dissipation performance and reliable fire protection capabilities.
Strong magnetic field, ideal for mixing viscous samples.
High protection level: IP42.
Heating modes:
A: Rapid heating mode
B: Standard heating mode
C: Stable heating mode
To meet different customer needs.
Safety lock to prevent accidental changes in operating status.
Buzzer: When the machine malfunctions or the countdown for the timing function ends, the buzzer emits a "beep" sound to alert the user.
Residual heat warning: When the plate temperature exceeds 50°C, heating will be automatically turned off, and the display will show a flashing "HOT" warning. Even when the power is turned off, the "HOT" warning will continue flashing on the display, alerting the user of the high temperature.
Two independent safety circuits continuously monitor the device. In case of overheating, sensor malfunction, or system error, the machine will stop heating. If a short circuit occurs, the power will be automatically cut off, ensuring the operator's safety.
DC brushless motor: Spark-free, long lifespan, low noise, maintenance-free, and smooth operation.
LCD display shows set and real-time values for speed, time, and temperature, offering clear and intuitive readings.
The timer function is available with a range of 1 minute to 99 hours and 59 minutes. Once the countdown ends, heating will stop, but stirring will continue to avoid thermal damage to the sample.
Remote control function is available, allowing the device to be connected to a computer.
The device comes with a variety of accessories, making it suitable for chemical synthesis laboratories in universities, research institutes, and enterprises.
Safety temperature can be set.
PRODUCT PARAMETERS
Cat.No.
8021522210
Work plate Dimension
Ø135mm（5inch）
Work plate material
Aluminum with ceramic coating
Max. stirring quantity [H2O]
20L
Speed range
50~1500rpm，increment 1rpm
Speed display
LCD
Temperature display
LCD
Heating temperature range
Room Temp.-340℃，increment1℃
Temperature control accuracy
±1℃(<100℃) | ±1%(>100℃)
Temperature display accuracy
±0.1℃
External temperature sensor
PT1000(accuracy±0.2℃ )
"Hot" warning
50℃
Overheating temperature protection
420℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
80mm
Data connector
RS232
Timer function
1min-99h59min
Protection class
IP42
Motor rating output
10W
Power
650W
Heating output
600W
Voltage,Frequency
100-120/200-240V，50/60Hz
Dimension [WxDxH]
270x175x98mm
Weight
2.2kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80%RH
