Lab Digital Chemical Mixing Equipment 280C Ceramic Coated Hotplate Magnetic Stirrer
Product feature

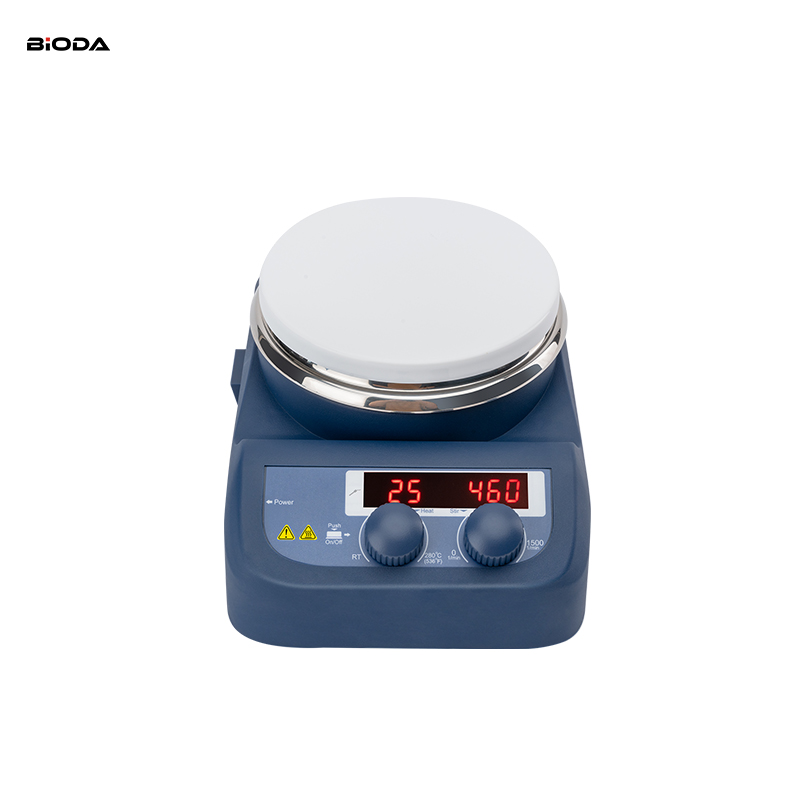

MS-H280-Pro LED Digital Magnetic Hotplate Stirrer
Digital temperature control with maximum temperature up to 280°C
Digital speed control with maximum speed up to 1500rpm
Stainless steel with ceramic coating work plate provides high chemical resistant performance
External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy at ±0.2°C
LED display shows temperature and stirring speed
"HOT" warning flashes if work plate temperature is above 50°C
PRODUCT PARAMETERS
Cat.No.
8030101212
Work plate Dimension
Ø 135mm(5 inch)
Work plate material
stainless steel cover with ceramic coating
Max. stirring quantity [H2O]
3L
Speed range
200-1500rpm
Speed display
LED
Temperature display
LED
Heating temperature range
Room Temp.-280℃
Temperature control accuracy
±1℃ (<100℃) ±1% (>100℃)
Temperature display accuracy
±1℃
External temperature sensor
PT1000 ( accuracy±0.2℃ )
"Hot" warning
50℃
Overheating temperature protection
320℃
Motor type
Brushless DC motor
Stirring positions
1
Max. magnetic bar length
50mm
Data connector
-
Timer function
-
Protection class
IP42
Motor rating output
3W
Power
515W
Heating output
500W
Voltage,Frequency
100-120V/200-240V，50/60Hz
Dimension [WxDxH]
150x260x100mm
Weight
1.8kg
Permissible ambient temperature
5-40℃
Permissible ambient humidity
80% RH
