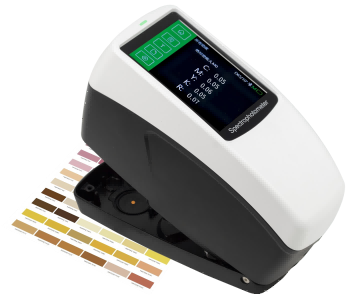

Bluetooth Digital Portable Packaging Printing CMYK Color Density Densitometer

Suitable for printing and packaging industries

Solve the color quantization problem of CMYK and spot colors

Provide quantitative operating guidance to printing press staff

一、Product features

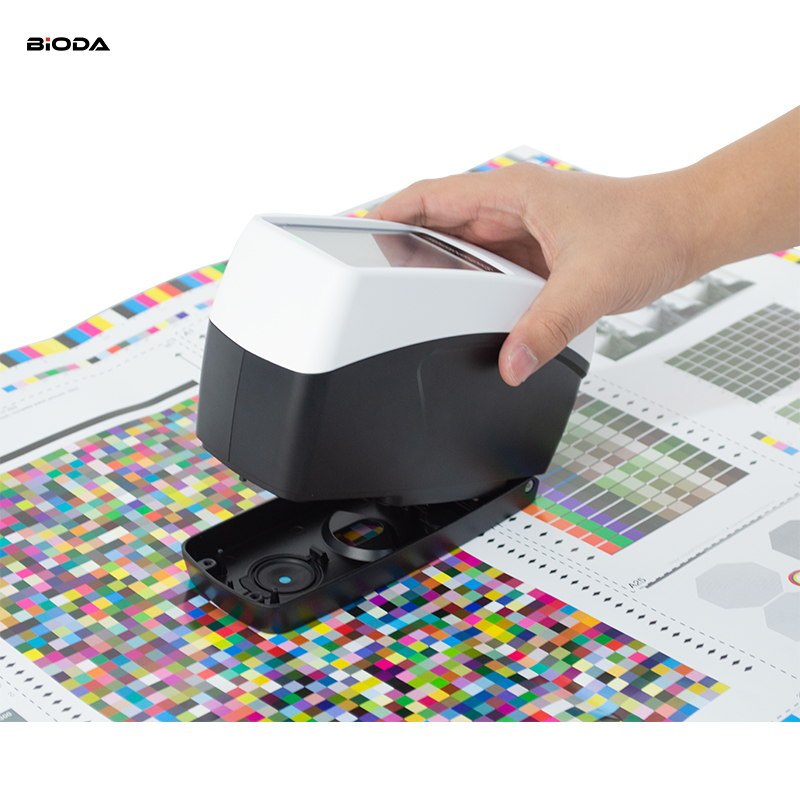

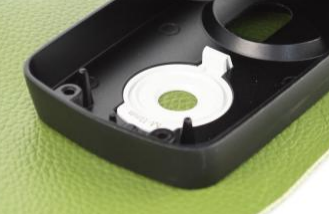

n Horizontal compression measurement, physical positioning observation window

l The DS 52X series Color Densitometer adopts a horizontal

design with a low center of gravity, which can be

stableMeasure the surface being measured. During the

measurement process, you can follow the observation

windowCheck the measurement position at all times to

avoid measurement position errors.

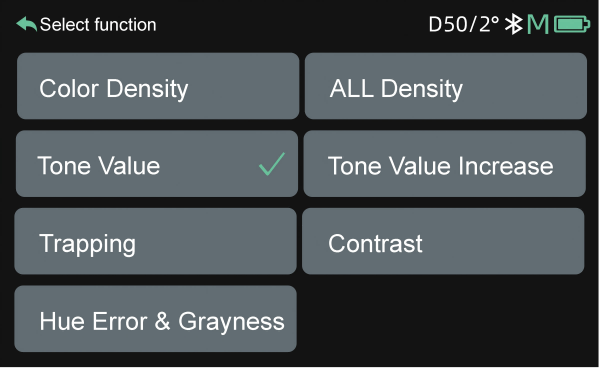

n Provide printing-specific measurement indicators to help users adjust colors efficiently

l Color density measurement, dot area measurement,

overprint rate measurement, printing contrast measurement, hue error and grayscale measurement.

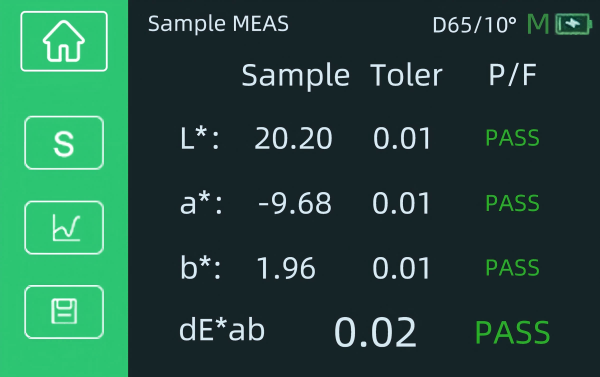

n Ultra-high repeatability accuracy：dE*ab

≤0.02

l Repeatability accuracy is the most important indicator

to describe the performance of a Color Densitometer.

The DS 52X series Color Densitometer adopts

high-precision nanometer spectroscopic devices, which enables the repeatability accuracy of the instrument to reach a level of dE*ab≤0.02 that is difficult to match with similar products.

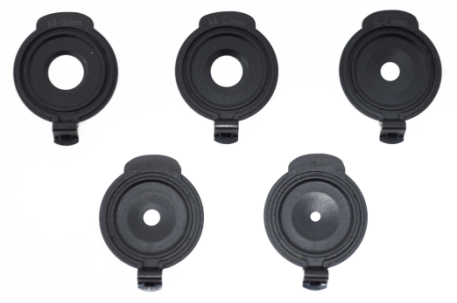

n DS 52X series supports 5 measurement calibers

l The DS 52X series Color Densitometer supports 5

apertures, Φ11mm, Φ10mm, Φ6mm, Φ5mm, Φ3mm,

and can be flexibly applied to a variety of samples of

different sizes and testing conditions.

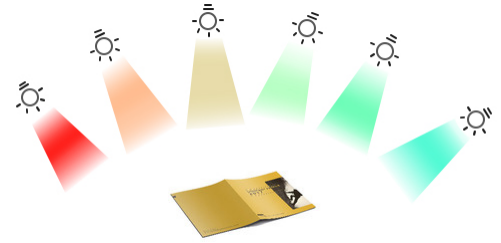

n More than 30 measurement parameters and nearly 40 evaluation light sources

l DS 52X series Color Densitometer provide spectral

reflectance, CIE-Lab, CIE-LCh,ΔE*ab, covering power, whiteness, yellowness and other 30+ measurement indicators; A, B, C,There are nearly 40 evaluation light sources to choose from such as D50, D55, and D65, covering almost all industries All color measurement metrics and light source types included.

n Use the powerful PC-side color management system ColorExpert

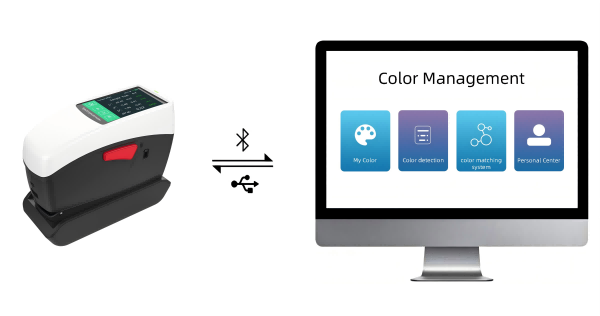

The DS 52X series Color Densitometer comes with the Windows color management system ColorExpert, which can be connected to the DS 52X series Color Densitometer via Bluetooth or USB cable. ColorExpert is a full-featured color management software with four major functional modules: My Color, Color Detection, Color Matching System, and Personal Center.

1. In the "My Colors" function module, users can collect or create new color libraries they need among

hundreds of color libraries shared by other users. Electricity The brain software and mobile APP can share an account, aSuitable for printing and packaging industries Solve the color quantization problem of CMYK and spot colors Provide quantitative operating guidance to printing press staffnd the color library data follows the account to achieve information synchronization between PC and mobile terminals.

2. In the "Color Detection" function module, users can calibrate, measure, and set up the

spectrophotometer through computer software. Users can use the colors in the cloud database as standard samples to measure color differences, view spectra, color difference charts, standard sample data, and export the desired data test report.

3. In the "Color Matching System" function module, it can provide users with a more convenient and

efficient color matching process. After the instrument measures the color of the sample, the system calculates the formula in the formula center and automatically corrects the color, finally achieving an accurate match. Suitable for computer automatic color matching applications in paints, coatings, printing, textiles and other fields.

4. In the "Personal Center" function module, users can edit their personal information, search or delete

connected instrument information, manage downstream users, and manage color libraries shared with downstream users.

一、Product parameters

Diffuse illumination/8° direction reception, including specular reflected light/removing specular reflected light

After the whiteboard is calibrated, measure the whiteboard 30 times at 5-second intervals and measure the standard deviation of the results using the MAV caliber.
