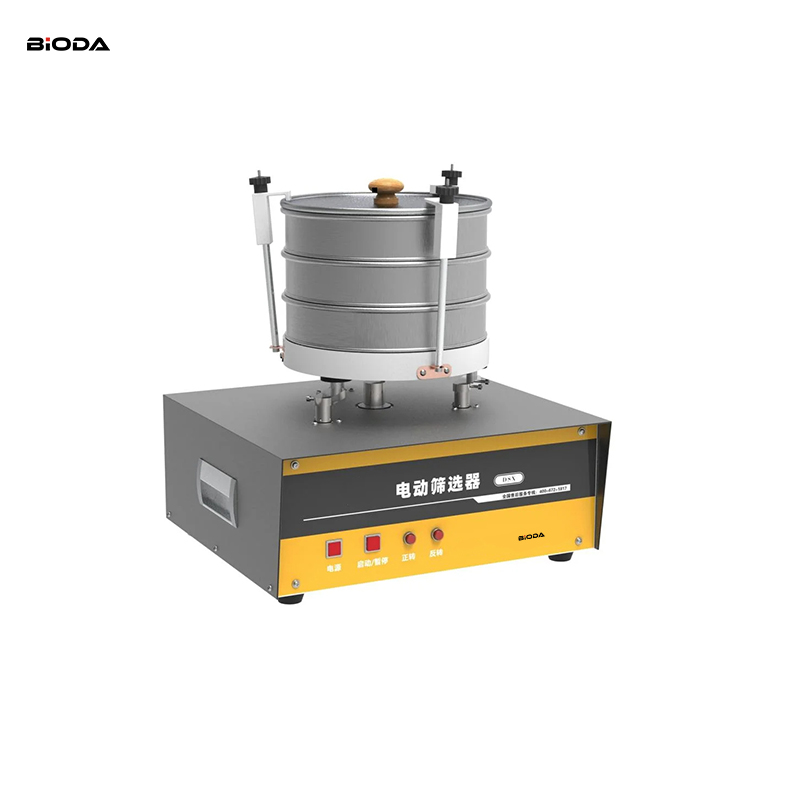

Sieve Vibrating Shaker DSX

Sieve Vibrating Shaker DSX

Features:

The computerized sifter is developed according to the national standard, adopting desktop structure, worm gear for variable speed rotation, the sifter body is supported by a three-point plane, and the plane rotates through the eccentric linkage mechanism, which has the advantages of compact and reasonable structure, stable operation, stable performance, and convenient operation, etc. The electronic control part adopts the 89LE52 single-chip microcomputer to control the forward and reverse rotation, and the controlled forward and reverse rotation time is of high precision.The DSX computerized sifter is widely used for the screening and determination of grain and oilseeds, and it is the necessary sieving and grading equipment for agricultural breeding. DSX type computerized sifter is widely adapted to the screening and determination of grains and oilseeds, and is the necessary sieving and grading equipment for agricultural breeding.

Technical parameters:

The standard configuration of this instrument does not contain grain sieve, it’s optional accessory

Maximum sieving capacity: 500g

Sieve frame level: 3 layers

Sieving amplitude: 100mm

Rotary speed: 115±5r/min

Matching sieve outer diameter: 220mm

Motor power: 60W

Power supply: AC220V 50Hz

Weight of the whole machine: 12kg

Optional accessory: grain sieves

Grain set sieve is to test the grain, oilseed samples of impurity rate and rice, bran powder content, to determine its quality level of a test instrument.

Technical parameters:
