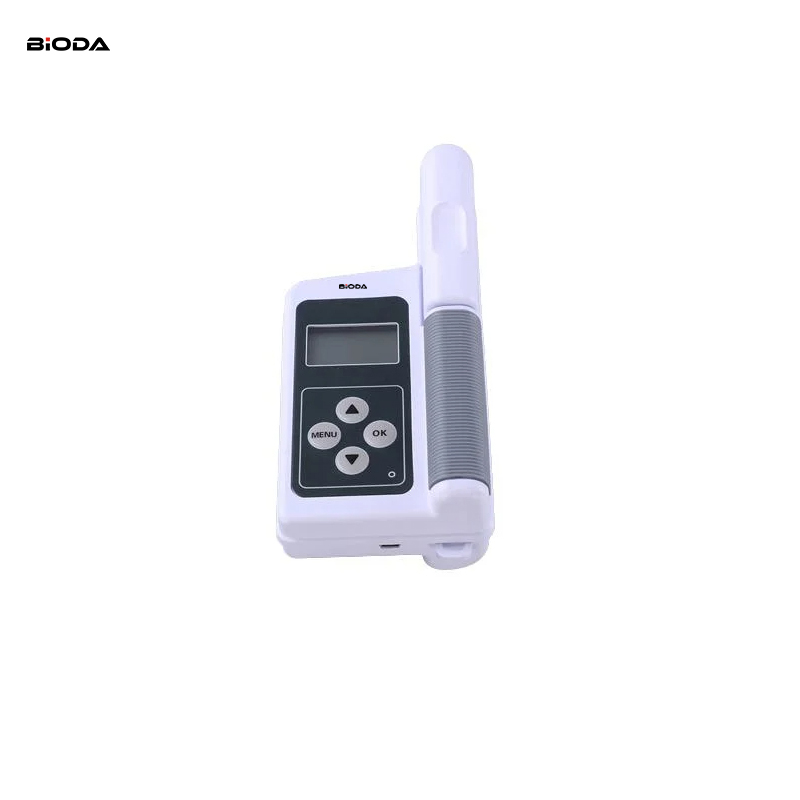

Plant chlorophyll meter TYS-B
Plant chlorophyll meter TYS-B
The plant nutrient analyzer saves three parameters (chlorophyll, nitrogen content, and leaf temperature) at the same time.
Plant chlorophyll, nitrogen content, and leaf temperature are important nutrients. They're an important basis for plant
fertilization and irrigation. Use near-infrared spectroscopy, to test leaf chlorophyll, nitrogen, and leaf temperature by near‐infrared spectrum nondestructive testing. Can nondestructive test three plant nutrition and growth physiology information.
Features:
1.Be able to save chlorophyll, nitrogen, and leaf temperature at the same time, easy to draw graph of plant nutrient, leaf temperature etc. Provide for plant precision irrigation and fertilization.
2. Nondestructivetest plant quickly, not to affect plant growth.
3. Rapiddetermination: Test plant chlorophyll, nitrogen, and leaf temperature at the same time.
4. Manual measurement
5. View past stored data, and show three parameters at the same
6. The computer can transfer wired or wireless data so as to manage and
7. Easy to store data, directly show stored Show low power consumption.
Technical parameter:
Model | TYS-B |
Measuring area | 10mm |
Measuring mode | 2-wavelength concentration difference of optical methods |
Display mode | Measuring value: 3 digits liquid crystal display |
Min measuring interval | < 2s |
Measuring Range | 0.0-99.9 SPAD |
Accuracy | ±1.0 SPAD |
Repeat | ±0.3SPAD |
Operating temperature | 0-50°C |
Storage temperature | -20-55°C |
Power | 2 AA batteries |
Dimensions (L × W × H) | 155mm * 70mm * 42mm |
Battery life | can maintain more than 20000 operations |
Memory capacity | 30datum, automatically calculate and show the average. On: to open the power and OFF: to close the power. |
AVG button | Calculate the average of data |
Del (to move all data) button | Clear all the data |
DISP button | Display stored datum |
MEAS button | Press MEAS key to test |
Weight | 320 grams (excluding batteries) |
