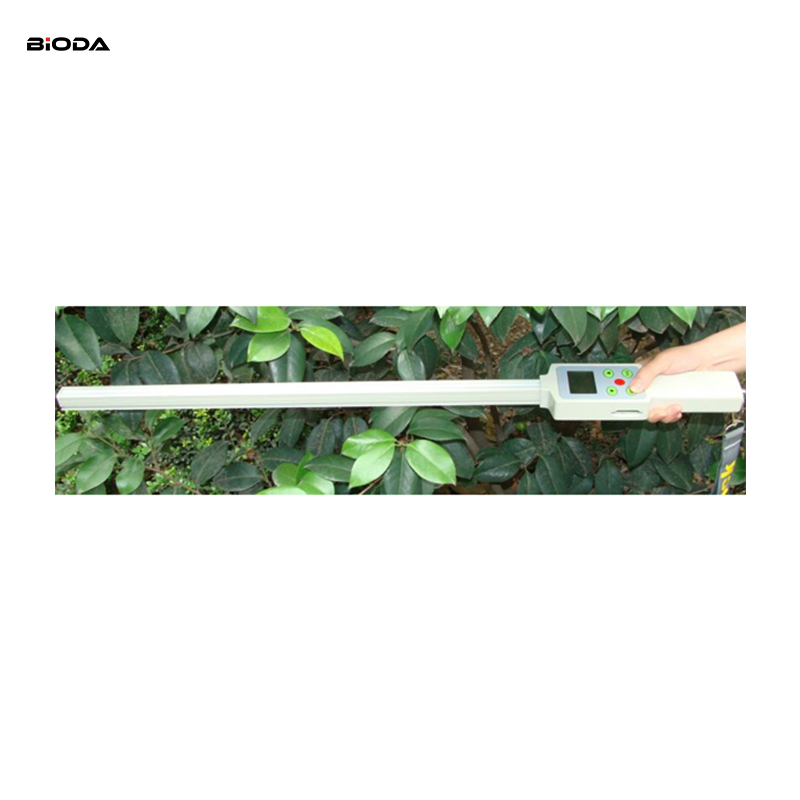

Auto Plant Canopy Analyzer TOP-1200

Auto Plant Canopy Analyzer TOP-1200

Automatic Canopy Analyser is used for automatic measurement and analysis of plant canopy, which can quickly determine the vegetation surface parameters, plant canopy information, plant nutrient information, soil nutrient information, environmental parameters, the degree of plant pests and diseases, etc. The software can analyse the vegetation index RVI, NDVI, nitrogen content in the crop leaf layer, nitrogen accumulation, leaf area index, dry weight of the leaf and so on.

Features:

Can dynamically monitor plant growth.

1、High waterproof grade: all aluminium alloy, waterproof grade IP65.

2、Adopting visible/near-infrared light reflectance spectroscopy technology and multi-channel spectral information scanning technology, it can quickly determine the vegetation surface parameters, plant canopy information, plant nutrient information, soil nutrient information, environmental parameters, the degree of plant pests and diseases, and so on.

3、Multi-functions of software analysis: it can analyse vegetation index RVI, NDVI, crop leaf layer nitrogen content, nitrogen accumulation, leaf area index, leaf dry weight and so on.

4. Low power consumption design, increase system monitoring and protection measures to avoid system crash.

5. Chinese liquid crystal display, can display the current date and time, each sensor measurement data, storage capacity, the number of stored data, and other information.

6, the host data storage capacity: equipment internal Flash can store the last 30,000 data, standard 4G memory card unlimited storage, can also be stored with the Flash data at the same time.

7, built-in lithium battery power supply: 7.4V2.8Ah lithium battery, with charging protection, low voltage prompt function. External power supply is 8.4V (1000mA or more) DC power supply.

8、Acquisition settings: used in the case of unattended use, can be set to collect timed, can also be collected manually.

9, voice settings: according to the need to set the voice broadcast function on / off / over the limit on.

10, voice alarm function: host voice set to exceed the limit of open, you can voice broadcast over the limit of information.

11、The host can access different types of sensors through the hub, without affecting each other's accuracy.

12, comes with GPS positioning function, data collection can automatically display the geographic coordinates of the collection point.

13, can extend the type and number of sensors, up to 32 kinds (extension line for IP67, one-piece structure).

TOP-1200 Technical parameters:

Working environment: 0℃~60℃, relative humidity 0~100%RH (no water vapour condensation)

Storage environment: -30℃~70℃, relative humidity ≤95%RH

Power supply: 8.4VDC

Light source: LED

Centre wavelength: 730nm, 810nm

Spectral bandwidth: <8 nm FWHM

Field of view: 30°

Acquisition area: 0.23~0.38㎡

Number of channels: 2

Collector material: full aluminium alloy, waterproof grade IP67
