BRE-100L digital 100L rotary evaporator

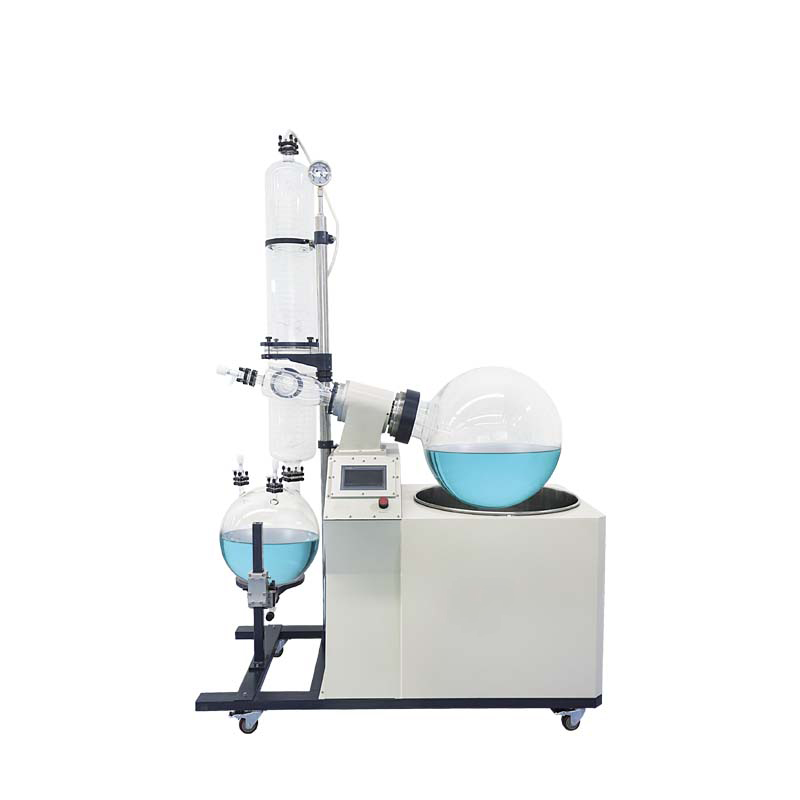

BRE-100L rotary evaporator
Brief introduction:
Rotary evaporator is an evaporation instrument widely used in laboratories. It consists of a motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure conditions. , used in chemistry, chemical industry, biomedicine and other fields.
It is also the main means for manufacturing and analyzing experiments when they do extraction and concentration .
Technical parameters:
Mode | BRE-100L |
Glass meterial | GG-17 |
Holder material | Stainless steel |
Pot shell | Spray anti-corrosion |
Material | 820*820mm |
Pot bravery | Stainless steel |
795*330mm | |
Plate size | 1600*830mm |
Evaporator | 100L |
flask | flange mouth:Φ180mm |
Collect flask | 50L |
ball mouth:Φ40mm | |
Vacuum degree | 0.098Mpa |
Rotary speed | 0-110RPM |
Rotary power | 400W 220V/50HZ |
Heating power | 12KW 380V/50HZ |
Heating temp. | 0-400 |
Temp. accuracy | ±1 |
Lifting stroke | 180mm |
Dimension | 1700*850*2600 |
Packing weight | 400 |
