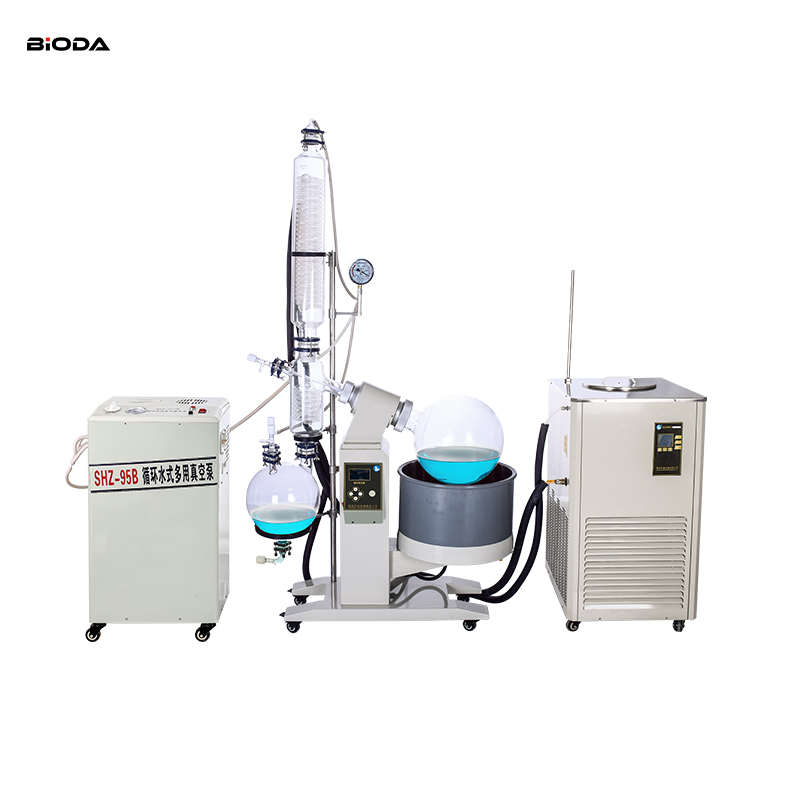

5L-50L digital rotary evaporator
Brief introduction:
Rotary evaporator is an evaporation instrument widely used in laboratories. It consists of a motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure conditions. , used in chemistry, chemical industry, biomedicine and other fields.
It is also the main means for manufacturing and analyzing experiments when they do extraction and concentration .
Technical parameters:
Model | BR-1005 | BR-1010 | BR-1020 | BR-1050 |
Voltage | 220V/50HZ/60HZ | 220V/50HZ/60HZ | 220V/50HZ/60HZ | 220V/50HZ/60HZ |
Rotary motor | 30W | 60W | 60W | 100W |
Lifting motor | 20W | 40W | 40W | 60W |
Heating power | 2KW | 4.5KW | 5KW | 8KW |
Vacuum degree | 0.098Mpa | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Rotary flask | 5L | 10L | 20L | 50L |
Φ230mm/Φ80mm | Φ280mm/Φ95mm | Φ355mm/Φ95mm | Φ3550mm/Φ95mm Flange mouth | |
Flange mouth | Flange mouth | Flange mouth | ||
Collection flask | 3L | 5L | 10L | 20L |
Φ195mm/Φ50m | Φ230mm/Φ50mm | Φ280mm/Φ60mm | Φ355mm/Φ60mm | |
Flange mouth | Flange mouth | Flange mouth | Flange mouth | |
Rotary speed | 0-120rpm/min | 0-120rpm/min | 0-120rpm/min | 0-120rpm/min |
Temp. controlling range | 0-400℃ | 0-400℃ | 0-400℃ | 0-400℃ |
Temp. accuracy | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
Glass bear temp. | -80-250℃ | -80-250℃ | -80-250℃ | -80-250℃ |
Oil bath lifting stroke | 0-140(mm) | 0-180(mm) | 0-180(mm) | 0-180(mm) |
Condenser size | Φ120×630H(mm) | Main Φ130×640H(mm) ViceΦ130×410H(mm) | MainΦ130×680H(mm) ViceΦ130×410H(mm) | Main Φ160×840H(mm) ViceΦ160×480H(mm) |
Feeding valve | Φ35 Flange mouth | Φ35 Flange mouth | Φ35 Flange mouth | Φ35 Flange mouth |
Release valve | Φ35 Flange mouth*2 | Φ35 Flange mouth*2 | Φ35 Flange mouth*2 | Φ35 Flange mouth*2 |
Discharge valve | Φ10mmm Glass side discharge port | Φ10mmm Glass side discharge port | Φ10mmm Glass side | Φ10mmm Glass side discharge port |
discharge port | ||||
Bath size | Φ280×170H(mm) | Φ350×220H(mm) | Φ450×250H(mm) | Φ550×320H(mm) |
10L | 21L | 39L | 76L | |
Dimension | 920*490*1300(mm) | 1100*400*1900 | 1200*500*2000 | 1400*600*2250 |
Packing size | 790L×430W×1060H(mm) | 1070L×520W×1210H(mm) | 1070L×520W×1210H(mm) | 1270L×620W×1440H(mm) |
Packing weight | 80kg | 95kg | 102kg | 118kg |
