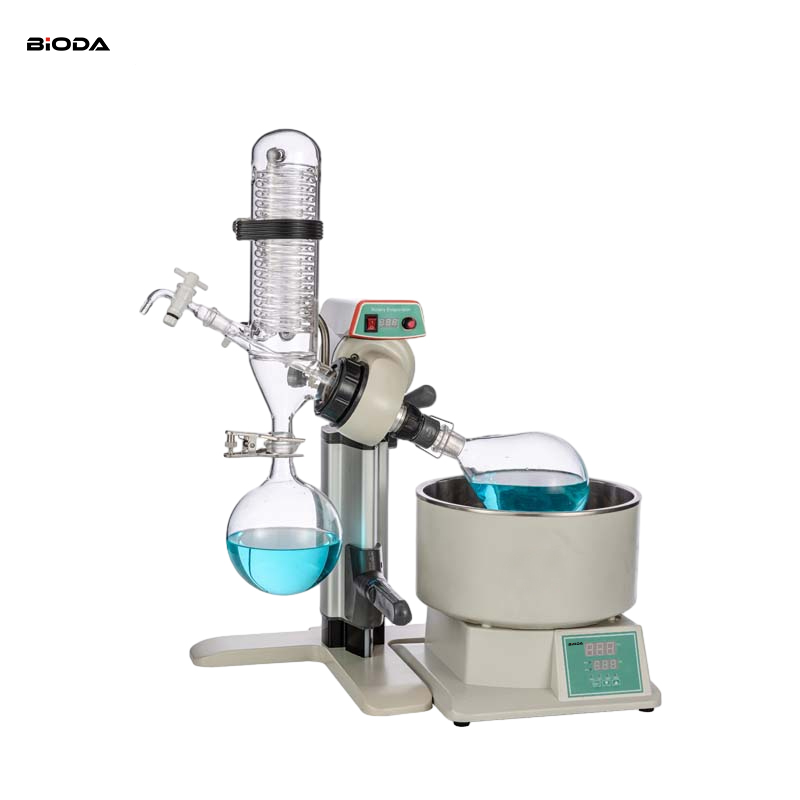

BRE-2010 rotary evaporator
BRE-2010 rotary evaporator
Brief introduction:
Rotary evaporator is an evaporation instrument widely used in laboratories. It consists of a motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure conditions. , used in chemistry, chemical industry, biomedicine and other fields.
It is also the main means for manufacturing and analyzing experiments when they do extraction and concentration .
Features:
1. Quick and easy lifting mechanism.
2. Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.
3. Vertical condensation system of high rate of evaporation.
4. Vacuum sealing way.
5. Automatic control temperature digital display.
Technical parameters:
Model | BRE-2010 |
Glass material | GG-17 |
Frame material | Aluminium alloy |
Pot bravery material | Aluminum alloy + Teflon composite pot, fully enclosed heating 250*130mm |
Evaporator flask | 1L 24#standard port (optional 500-3000ml) |
Collect flask | 1L 35# ball mill mouth |
Rotary power | 40W |
Rotary speed | 20-195rpm |
Evaporate capacity | 20ml/min (water） |
Vacuum degree | 0.098Mpa |
Heating power | 1.5KW |
Heating temp.range | 0-99℃ |
Temp. accuracy | ±1℃ |
Lifting disctance | 100mm+150mm(Sliding lift + manual lift） |
Voltage | 220V/50Hz |
Dimension(mm*mm*mm) | 550*400*（780-1040） |
Packing size(mm*mm*mm) | 720*525*385 |
Packing weight（KG） | 20 |
