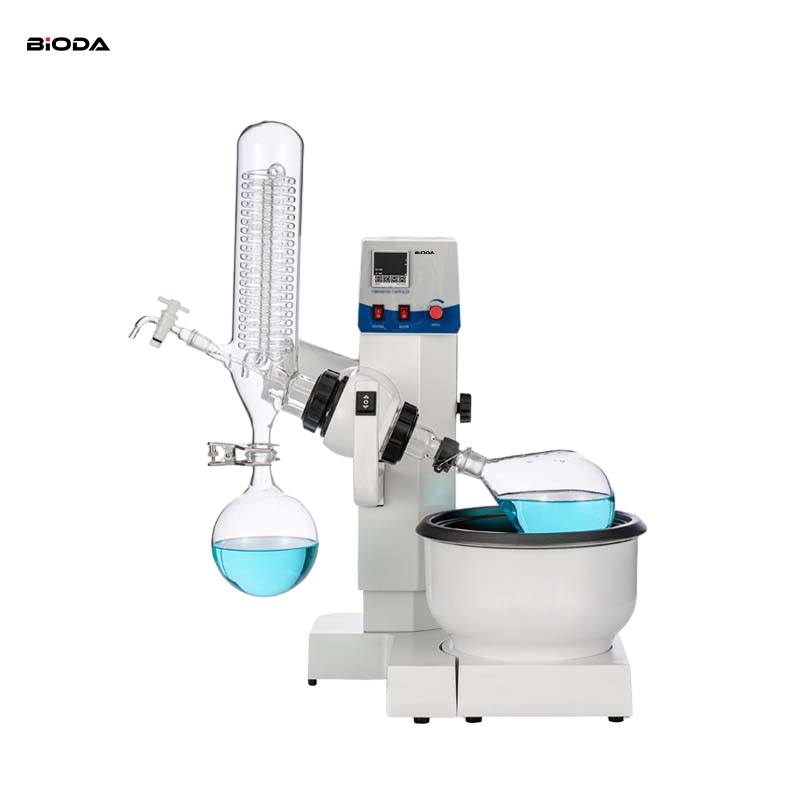

BRE-2000A/BRE-2000B/ BRE-2000E digital auto rotary evaporator
BRE-2000A/BRE-2000B/ BRE-2000E rotary evaporator
Brief introduction:
Rotary evaporator is an evaporation instrument widely used in laboratories. It consists of a motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure conditions. , used in chemistry, chemical industry, biomedicine and other fields.
It is also the main means for manufacturing and analyzing experiments when they do extraction and concentration .
Features:
1. Quick and easy lifting mechanism.
2. Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.
3. Vertical condensation system of high rate of evaporation.
4. Vacuum sealing way.
5. Automatic control temperature digital display.
Technical parameters:
Model | BRE-2000A | BRE-2000B | BRE-2000E |
Glass material | GG-17 | ||
Frame material | Aluminium alloy | ||
Pot bravery material | Teflon compound pot, fully enclosed heating 230*120mm | ||
Evaporator flask | 1L 24#standard port,(250-2000ml optional) | ||
Collect flask | 1L 35# ball mill port | ||
Rotary power | 40W | 40W brushless motor | |
Rotary speed | 0-180rpm | ||
Heating power | 1.5KW | ||
Heating temp.range | 0-200℃ | ||
Temp. accuracy | ±1℃ | ||
Lifting power | 15W | ||
Lifting disctance | 120mm | ||
Voltage | 220V/50Hz | ||
Dimension(mm*mm*mm) | 660*420*830 | ||
Packing size(mm*mm*mm) | 615*615*470 0.17方 | ||
Packing weight（KG） | 23 | ||
Speed mode | No display | Digital display | LCD display |
