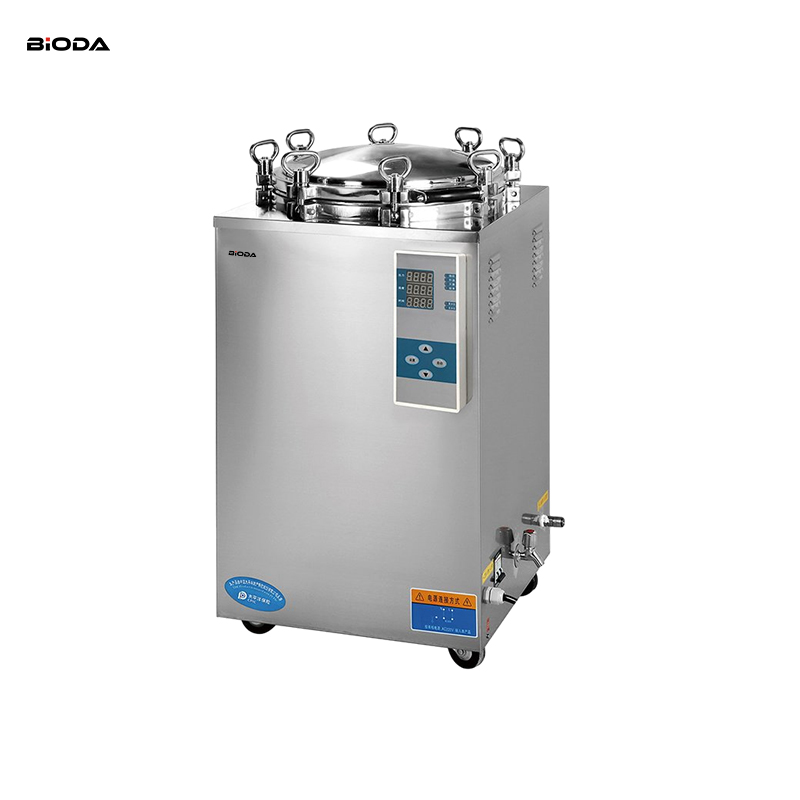

LS-LD LCD Auto Vertical Pressure Steam Sterilizer

LS-LD LCD Auto Vertical Pressure Steam Sterilizer

The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. The
Send Inquiry

Application

The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.



Characteristics

• Fully stainless steel structure.

• LED display of working status, touch type key.

• Auto discharge the cool air, and steam discharging automatically after sterilization.

• Automatically shut off with beep reminding after sterilization.

• Easy to operate, safe and reliable.

• With two stainless steel sterilizing baskets.


Technical parameters

MODEL

LS-35LD

LS-50LD

LS-75LD

LS-100LD

LS-120LD

LS-150LD

Technical Data

Chamber volume

35L

φ318×450mm

50L

φ340×550mm

75L

φ400×600mm

100L

φ440×650mm

120L

φ480×660mm

150L

φ510×740mm

Working pressure

0.22Mpa

Working temperature

134℃

Max.working pressure

0.23Mpa

Heat average

≤±1℃

Timer range

0-99min/0-99hour59min

Temperature adjust range

105-134℃

Power

2.5KW/AC220V 50HZ

3KW/AC220V 50HZ

4.5KW/AC220V 50HZ

7KW/AC220V 50HZ

Overall dimension(mm

480×460×850

520×520×980

560×560×980

590×590×1080

600×640×1140

670×690×1130

Transport dimensionmm

570×550×970

590×590×1110

650×630×1150

680×650×1220

730×730×1270

760×760×1270

G.W/N.W

56Kg/42Kg

68Kg/50Kg

90Kg/70Kg

105Kg/85Kg

125Kg/100Kg

135Kg/110Kg
