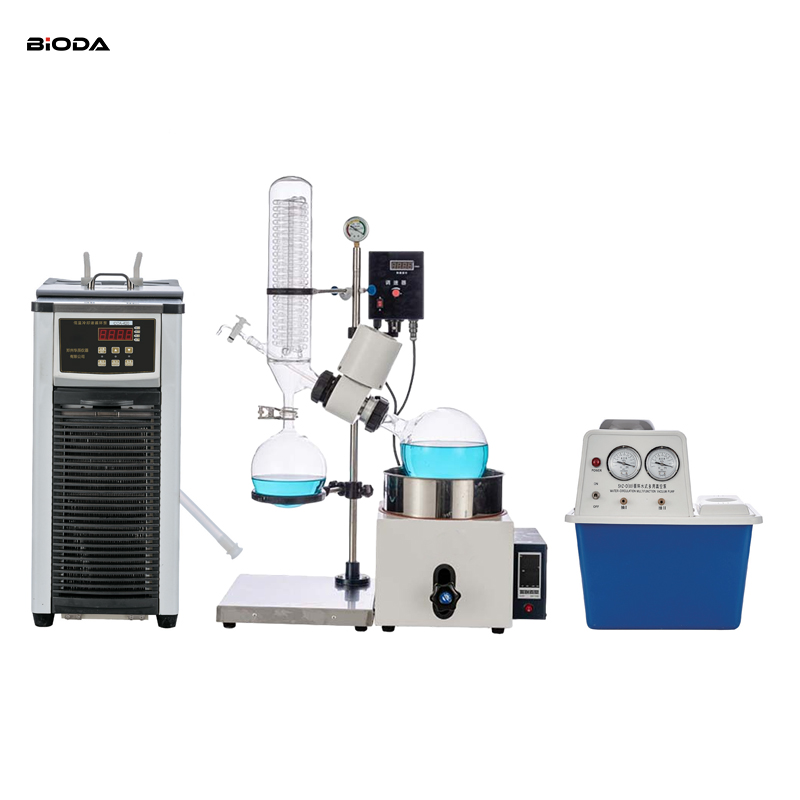

BRE-201D BRE-301 BRE-501 rotary evaporator
BRE-201D BRE-301 BRE-501 rotary evaporator
Brief introduction:
Rotary evaporator is an evaporation instrument widely used in laboratories. It consists of a motor, distillation bottle, heating pot, condenser tube and other parts. It is mainly used for continuous distillation of volatile solvents under reduced pressure conditions. , used in chemistry, chemical industry, biomedicine and other fields.
It is also the main means for manufacturing and analyzing experiments when they do extraction and concentration .
Technical parameters:
Model | BRE-201D | BRE-301 | BRE-501 |
Glass material | GG-17 | GG-17 | GG-17 |
Frame material | Stainless steel | Stainless steel | Stainless steel |
Pot shell Material | Spray anti-corrosion 270*270*195mm | Spray anti-corrosion 290*296*240mm | Spray anti-corrosion 310*320*240mm |
Pot bravery material | Stainless steel 250*140mm | Stainless steel 255*170mm | Stainless steel 280*170mm |
Plate size | 280*330mm | 350*330mm | 350*330mm |
Evaporator flask | 1L 24#standard port | 3L ￠50flange port | 5L ￠50flange port |
Collect flask | 1L 24#standard port | 2L 35#ball mill port | 3L 35#ball mill port |
Vacuum degree | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Rotary power | 30W | 40W | 40W |
Rotary speed | 0-120rpm | 0-120rpm | 0-120rpm |
Heating power | 1.5KW | 2KW | 2KW |
Heating temp.range | 0-400℃ | 0-400℃ | 0-400℃ |
Temp. accuracy | ±1℃ | ±1℃ | ±1℃ |
Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Lifting disctance | 120mm | 120mm | 120mm |
Dimension(mm*mm*mm) | 700*440*885 | 660*330*970mm | 700*335*1009mm |
Packing size(mm*mm*mm) | 600*460*460 0.12CBM | 1000*460*450 0.21CBM | 1010*610*470 0.29CBM |
Packing weight（KG） | 21 | 38 | 41 |
