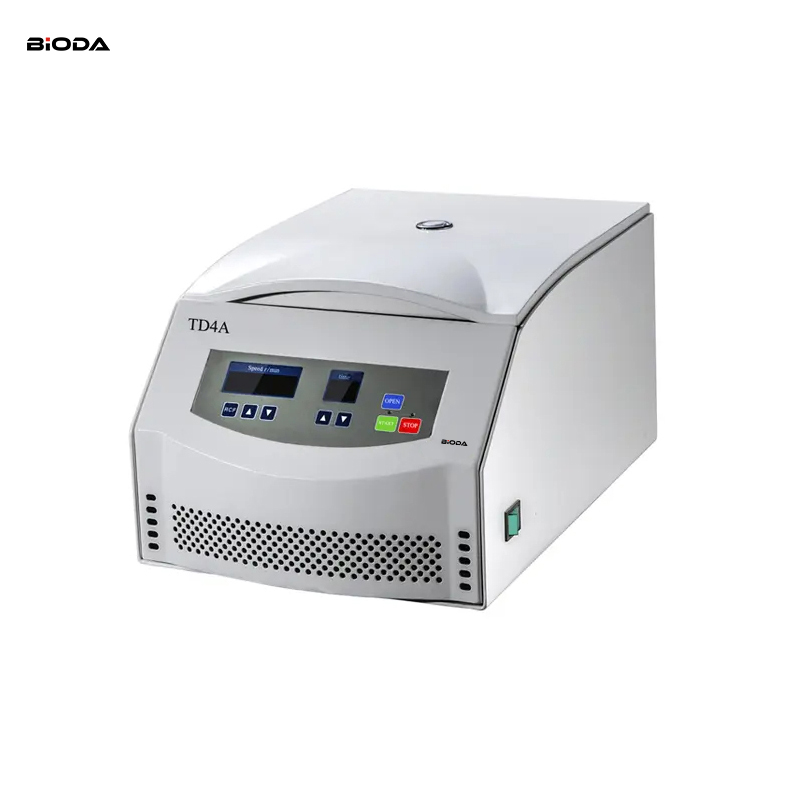

TD4A Low Speed Centrifuge
TD4A Low Speed Centrifuge
Features
1. TD4A centrifuge is of microprocessor control, less noisily, it is widely used to qualitative analysis of blood serum, plasma and urea in the fields of hospital, blood center, laboratory and biochemistry.
2. Brushless motor, free maintenance, no powder pollution, quick in speed up and down.
3. The flexible axle driven system which drive the rotor directly, smooth in operation and small vibration.
4. There are many rotors for your choice, suitable for different specifications meet customers’ different requirements of separation.
5. Micro computer control system, LED display the RCF，time and speed.
6 .Electric lid lock, compact design, super speed and imbalance protection.
TD4A Technical Parameter：
Max. Speed | 4000rpm |
Max. RCF | 2250×g |
Max. Capacity | 6×50ml |
Time Range | 0~99min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 45 |
Temperature | Normal |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±10r/min |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 485×320×255mm |
Net Weight/Gross Weight(Kg) | 18KG/21KG |
Matched Rotors for TD4A
Order No | Rotors | Max speed r/min | Volume(ml) | Max RCF(g) |
No31601
| Angle Rotor | 4000 | 12×10ml Vacuum tube | 2150 |
12×7ml Vacuum tube adapter | ||||
12×5ml Vacuum tube adapter | ||||
No31605 | Angle rotor | 4000 | 30x7/5ml | 2250 |
No31604 | Angle rotor | 4000 | 18×10ml | 2250 |
No31607 | Angle rotor | 4000 | 24x10ml | 2200 |
No31602 | Angle rotor | 4000 | 12×15ml/7ml/5ml | 2150 |
No31603 | Angle rotor | 4000 | 12×20ml | 2220 |
No31606 | Angle rotor | 4000 | 6x50ml | 2100 |
