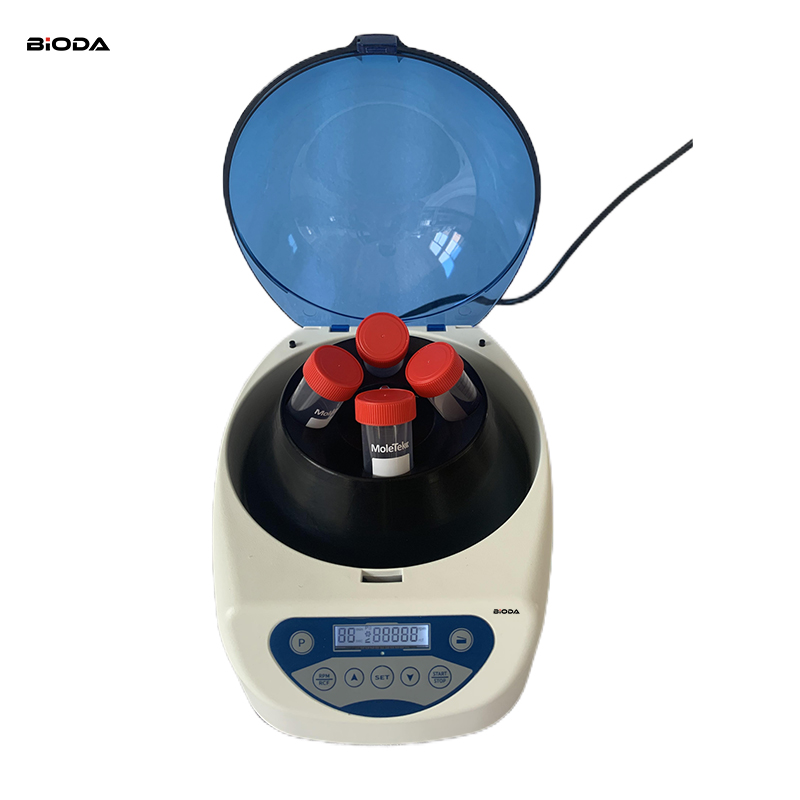

TD4B Portable Low Speed Centrifuge
Portable Low Speed Centrifuge
Application
Widely used in clinical or research lab.
Features
1.Maintenance -free brushless motor
2.LCD display of Speed, RCF and time.
3.Adjustable speed from 300r/min to 5000r/min
4.Timer from 1s to 99min or continuous operation
5.For 6x15ml centrifuge tube &10ml/7ml/5ml/3ml blood collection tube or 4x50ml centrifuge tube
6.Lid automatically open at the end of run to revent sample warming and to reduce handling time.
7.10 Program stored in memory and editable by ender user.
8.10 Acceleration/ 10 Deceleration profiles ,with soft brake system to get the good separation effect.
9.Electric cover lock, compact design, super speed and imbalance protection.
TD4B Technical Parameter：
Max. Speed | 5000rpm |
Max. RCF | 2635×g |
Max. Capacity | 4×50ml |
Time Range | 0~99min |
RPM/RCF Convert | Yes |
Noise (dB) | ≤ 55 |
Temperature | Normal |
Acc/Dec | 10 Kinds |
Speed Accuracy | ±20r/min |
Temperature Accuracy | / |
Voltage(V/Hz) | AC 220V/110V 50HZ/60HZ |
Size (W x D x Hmm) | 280×220×175mm |
Net Weight(Kg) | 3.5KG |
Matched Rotors for TD4B
Order No. | Rotor Type | Max Speed (rpm) | Max Volume (ml) | Max RCF (g) |
NO31501 | Angle Rotor | 5000 | 4×50ml | 2615 |
NO31502 | Angle Rotor | 5000 | 6x15/10ml | 2635 |
2635 | ||||
6x5ml vacuum tube adapter | 2635 |
