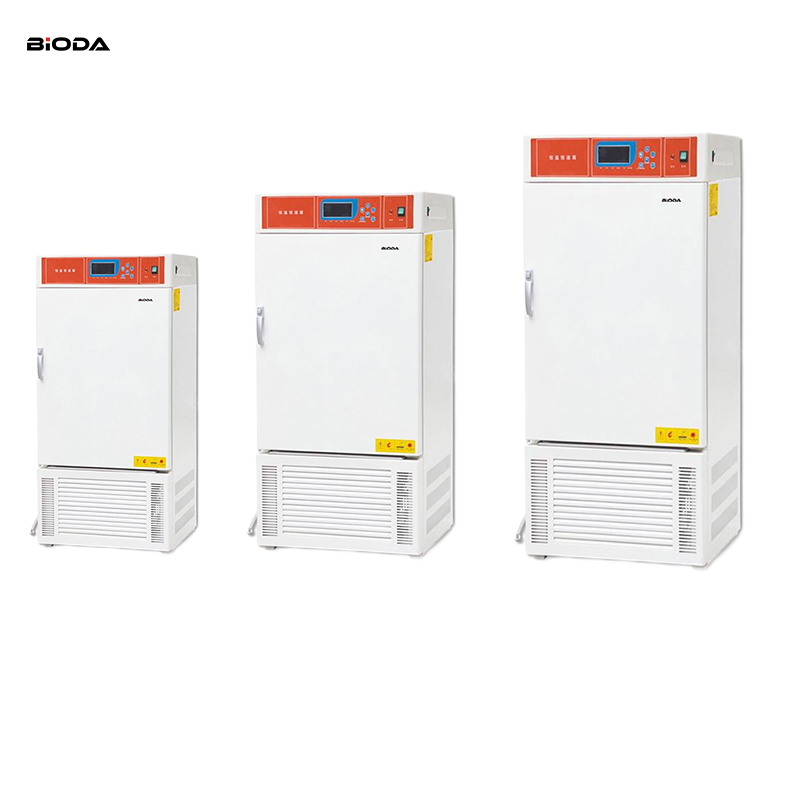

Programmable Constant Temperature And Humidity Chamber
Programmable Constant Temperature And Humidity Chamber
This series of products has precise temperature and humidity control systems, which provide various environmental simulation conditions required for industrial research and biotechnology testing. Therefore, it can be widely used in sterility tests such as drugs, textiles, and food processing. Stability inspection and testing of raw material performance, product packaging, product life, etc. of industrial products.
Features:
1. LCD (program) temperature and humidity controller, PID control temperature and humidity, the data is accurate and reliable.
2. It adopts high-quality stainless steel inner tank, with semi-circular corners and easy cleaning, and the distance between the partitions in the box is adjustable.
3. Fully imported compressor, environmentally friendly fluorine-free refrigerant (R404a), low energy consumption, promoting energy saving.
4. Imported low-noise roller fans and unique air duct design ensure uniform temperature and humidity distribution in the studio.
5. Bypass refrigeration capacity control technology and dynamic precision constant temperature and humidity control system ensure uninterrupted and reliable operation for a long time.
6. Built-in rapid humidification device, automatic water level height adjustment and alarm function ensure stable humidification capacity and long-term reliable operation.
7. The BHS series has a printing function and a USB interface, which can print and record temperature and humidity changes in real time. (Already equipped)
8. The 25mm diameter test hole on the left side of the box is convenient for experimental operation and temperature measurement. (Already equipped)
9. Set up an independent temperature limit alarm system, which will automatically interrupt when the temperature limit is exceeded to ensure the safe operation of the experiment. No accidents happen. (Already equipped)
10. The LCD program temperature and humidity controller can be set to 99 cycles and 30 segments, and each period is set to 1-9999 hours or minutes.
Technical parameters:
Model | BHS-150CL BHS-150CLY | BHS-250CL BHS-250CLY | BHS-500CL BHS-500CLY | BHS-150CA BHS-150CAY | BHS-250CA BHS-250CAY | BHS-500CA BHS-500CAY |
Voltage | AC 220V 50HZ | |||||
Temperature control range | -10℃-85℃ | -20℃-85℃ | ||||
Temperature resolution | 0.1℃ | |||||
Temperature control accuracy | ±0.3℃ | |||||
Temperature fluctuation / uniformity | ±0.5℃/±2℃ | |||||
Temperature control range | CL, CA=40%-95%RH CLY, CAY=30%-95%RH | |||||
Humidity deviation | ±3%RH | |||||
Input power | 1400W | 1600W | 2200W | 1800W | 2000W | 2500W |
Liner size (mm) | 500*505*700 | 550*520*900 | 720*660*1080 | 500*505*700 | 550*520*900 | 720*660*1080 |
Dimensions (mm) | 660*700*1475 | 720*720*1675 | 900*860*1880 | 660*700*1475 | 720*720*1675 | 900*860*1880 |
Carrier bracket (standard) | 3 | 4 | 3 | 4 | ||
Note: "Y" means LCD display with programmed temperature and humidity controller |
