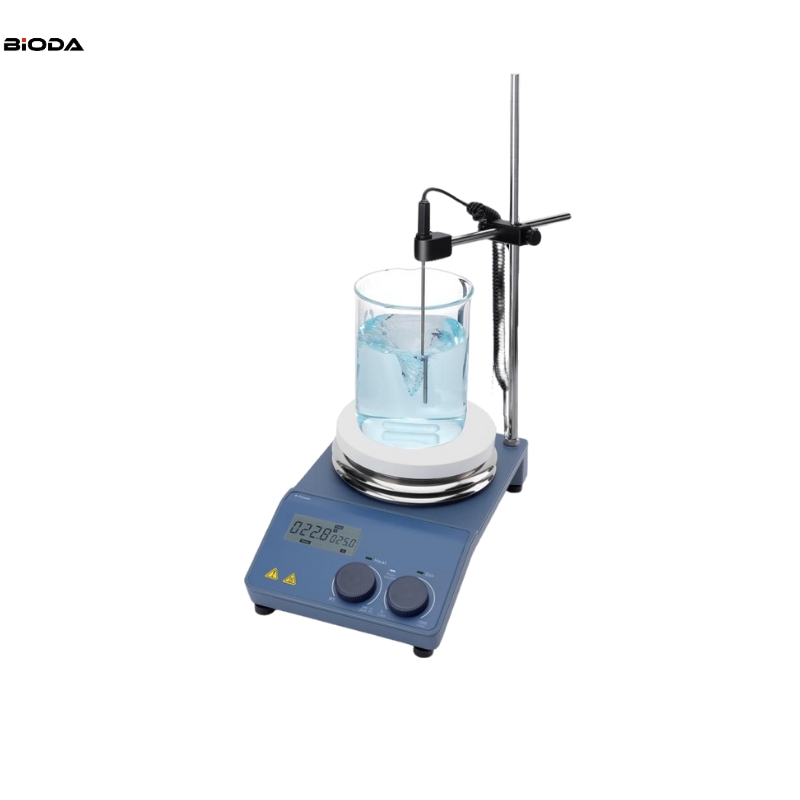

MS-H-ProM LCD Digital Enhanced Magnetic Hotplate Stirrer with Timer
Features
Enhanced magnets and powerful motors for outstanding performance in the stirring of viscous liquid.
Smooth acceleration and deceleration for stable running without spillage
Timer control from 1 minute to 99 hours and 59 minutes. When the time countdown completes, it will keep stirring but turn off heating to keep the sample safe from heat damage.
Three heating modes for different demands: A) Fast heating; B) Standard heating; C) Steady heating.
“HOT” warning flashes on the LCD display if the work plate tempe rature is above 50 °C after the user turn off the power switch.
Two independent safety circuits keep monitoring the instrument.When overheating is detected and the sensor malfunctions, it will stop heating and sound alarm; When short circuit is detected, it will cut off the power to ensure the human safety.
Can be connected to PC with remote control.
Technical parameters:
| Specifications | MS-H-ProM |
| Work plate dimension | 0135mm(5 inch) |
| Workplate material | Aluminum with ceramic coating |
| Motor type | Brushless DC motor |
| Stirring positions | 1 |
| Max.stirring quantity (H₂O) | 20L |
| Max.magnetic bar [length] | 80mm |
| Motor rating output | 15W |
| Speed range | 100-1500rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room temperature~340℃,increment 1℃ |
| Temperature controlaccuracy | ±1℃(<100℃),±1%(>100℃) |
| Overheatingprotection | 420℃ |
| Temperature display resolution | 0.1℃ |
| Extemal temperature sensor | PT1000(accuracy±0.2℃) |
| “Hot”waming | 50℃ |
| Data connection | RS232 |
| IP protection class | IP21 |
| Timer range | 1min~99h59min |
| Motor rating ouput | 10W |
| Total power | 720W |
| Heating power | 600W |
| Voltage,Frequency | 100~120/200~240V,50/60Hz |
| Dimensions(WxDxH) | 160x280x100mm |
| Weight | 2.8kg |
| Permissible ambient temperature and humidity | 5~40℃,80%RH |
