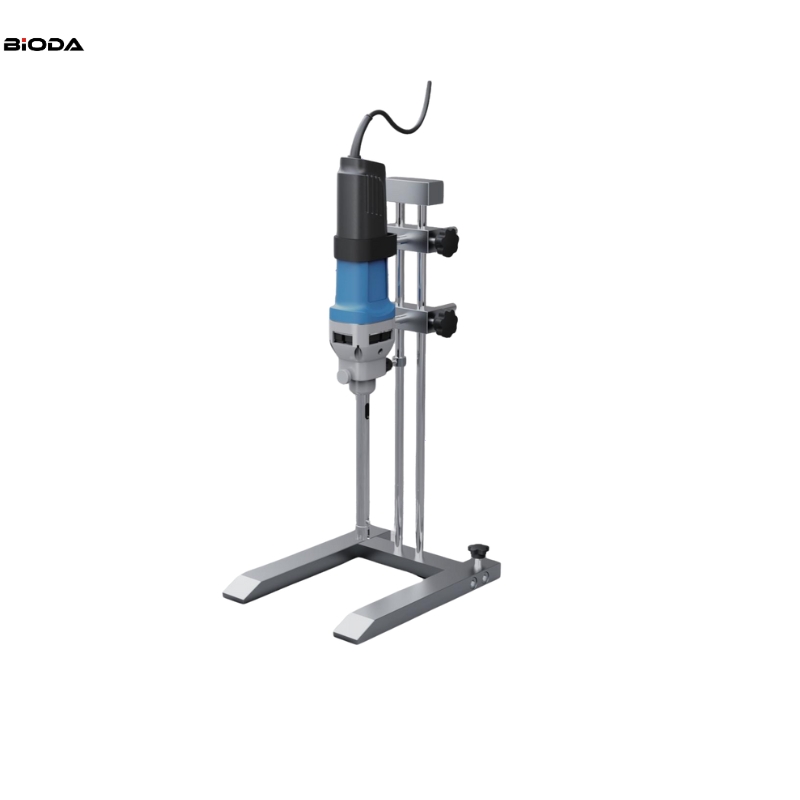

D-500 High Shear Homogenizer
Features
• Viscosity up to 10,000 mPas
• 6 modes of motor speed from 10,000 to 30,000 rpm
• All-round safety guarantee for motor drive, overload protection and smooth operation
• 316L stainless steel shafts are fully autoclavable and inert for highly corrosive solutions
• Easy dismantling for fast preparation
• All shafts are interchangeable for easy dismantling and cleaning
Technical parameters:
Specifications | D-500 |
Power Supply | 110-120V/60Hz 220-240V/50-60 Hz |
Motor Type Universal motor | 500 W AC carbon brush motor |
Speed Range | 10000-30000rpm |
Max. Circum. Speed | 22.7-36m/sec |
Speed Control Dial knob | 6 stage |
Working Volume [ H 2 O] | 10-40000mL (Optional) |
Max. Viscosity | 10,000 mPas |
Material of Dispersing Shaft | SS 316L stainless steel, PTFE |
Weight | 1.3 kg |
Dimension [L x W x H] | 70mm x 70mm x 255mm |
Noise | 79 dB(A) |
Operating Environment | 0-40 ℃, 85% rel. humidity |
Protection Class | IP20 |
