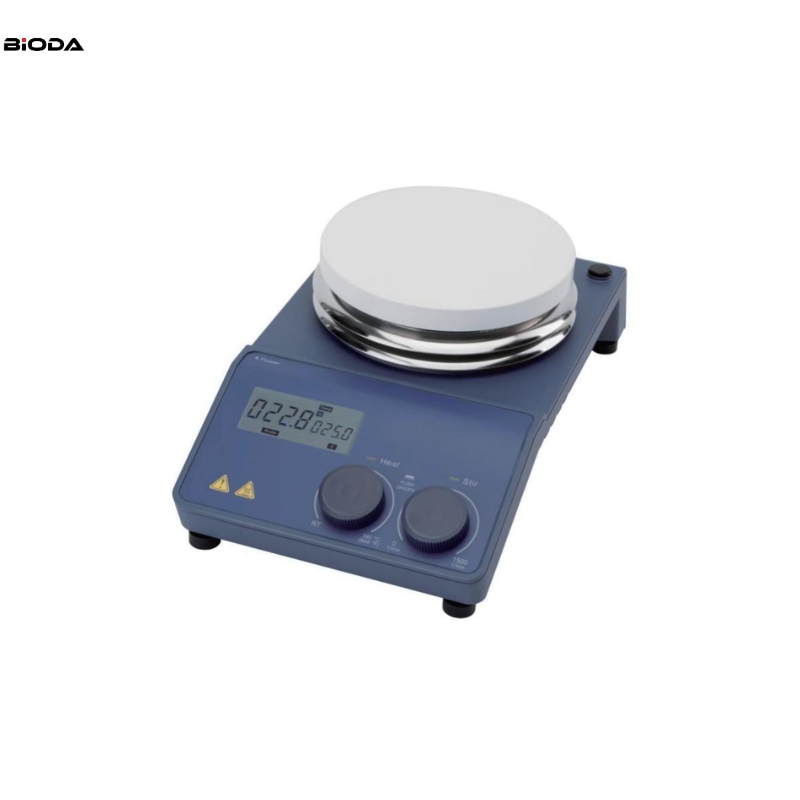

MS-H-PROA 20L 340℃ LCD Digital Magnetic Hotplate Stirrer
FeaturesDC brushless motor free of maintenance and spark, and with long service lifeDigital temperature control up to 34
Send Inquiry
Features
DC brushless motor free of maintenance and spark, and with long service life
Digital temperature control up to 340°C
Digital speed control up to 1500rpm
Maximum stirring quantity of H2O is 20L
Safety circuits provide overheating protection
"HOT" warning flashes if plate temperature is above 50°C even when hotplate is turned off
External temperature control is possible by connecting the temperature sensor(PT 1000)with accuracy at ±0.2°C
Work plate with ceramic coating provides good chemical-resistantperformance
Remote function provides PC control and data transmission
Wide variety of accessories available to choose
Technical parameters:
| Specifications | MS-H-ProA | MS-H-PRO+ | MS-H-PROT | MS-H-S | MS-H380-Pro | MS-H280-Pro |
| Work plate Dimension [WxD] | 0135mm(5 inch) | 0135mm (5inch) | 0135mm (5inch) | 0135mm(5 inch) | 140x140mm | 0135mm(5inch) |
| Workplate material | Aluminum cover with ceramic coating | stainless steel cover with ceramic coating | stainless steel cover with ceramiccoating | stainless steel cover with ceramiccoating | Aluminum cover with ceramic coating | stainless steel cover with ceramic coating |
| Motor type | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DCmotor | Brushless DC motor |
| Stirring positions | 1 | 1 | 1 | 1 | 1 | 1 |
| Max.stirring quantity, [H₂O] | 20L | 20L | 20L | 20L | 5L | 3L |
| Max.magnetic bar [length] | 80mm | 80mm | 80mm | 80mm | 50mm | 50mm |
| Speed range | 100-1500rpm resolution±1rpm | 100-1500rpm resolution±1rpm | 100-1500rpm resolution±1rpm | 0-1500rpm | 200-1500rpm | 200-1500rpm |
| Speed display | LCD | LCD | LCD | Scale | LCD | LED |
| Temperature display | LCD | LCD | LCD | Scale | LCD | LED |
| Heating temperature range | Room temp.-340℃, increment1℃ | Room Temp.-340℃, increment 1℃ | Room Temp.-340℃, increment 1℃ | Room Temp.-340℃ | Room Temp-380℃ | Room Temp-280℃ |
| Heatingliquid temperature control accuracy | ±1℃(<100℃) ±1%(>100℃) | ±1℃(<100℃) ±1%(>100℃) | ±1℃(<100℃) ±1%(>100℃) | ±1℃(<100℃) ±1%(>100℃) | ±1℃(<100℃) ±1%(>100℃) | |
| Overheating temperature protection | 420℃ | 420℃ | 420℃ | 420℃ | 420℃ | 320℃ |
| Temperature displayaccuracy | ±0.1℃ | ±0.1℃ | ±0.1℃ | ±0.1℃ | ±1℃ | |
| External temperature sensor | PT1000 (accuracy±0.2℃) | PT1000 (accuracy±0.2℃) | PT1000 (accuracy±0.2℃) | PT1000 (accuracy±0.2℃) | PT1000 (accuracy±0.2℃) | |
| "Hot"waming | 50℃ | 50℃ | 50℃ | 50℃ | ||
| Data connector | RS232 | RS232 | RS232 | |||
| Protection class | IP21 | IP21 | IP21 | IP21 | IP21 | IP42 |
| Timer function | 1min to 99h59min | 1min to 99h59min | ||||
| Motor rating output | 10W | 10W | 10W | 10W | 1.8W | 3W |
| Power | 720W | 550W | 550W | 530W | 510W | 515W |
| Heating output | 600W | 500W | 500W | 500W | 500W | 500W |
| Voltage,Frequency | 100-120/200-240V, 50/60Hz | 100-120/200-240V, 50/60Hz | 100-120/200-240V, 50/60Hz | 100-120/200-240V, 50/60Hz | 100-120/200-240V, 50/60Hz | 100-120/200-240V, 50/60Hz |
| Dimension [WxDxH] | 280x160x100mm | 160x280x100mm | 160x280x100mm | 160x280x100mm | 320x180x108mm | 150x260x100mm |
| Weight | 2.8kg | 2.8kg | 2.8kg | 2.8kg | 2.2kg | 1.8kg |
| Permissible ambient temperature and humidity | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH |
