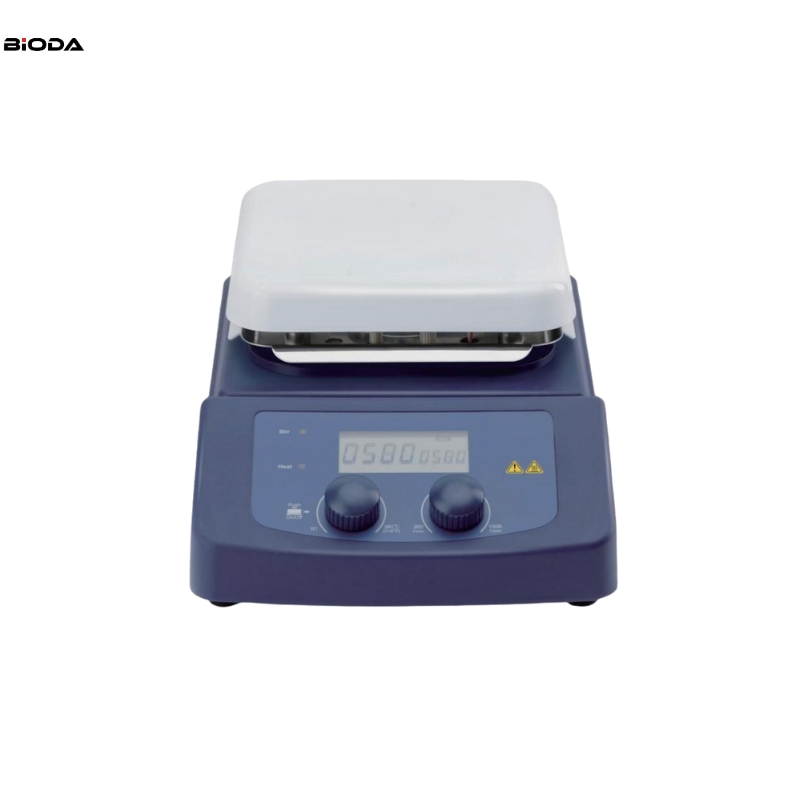

MS-H380-Pro 5L 380℃ LCD Digital Magnetic Hotplate Stirrer
FeaturesMaximumheatingtemperatureis380°CHighresolutionLCDdisplaysactual
Send Inquiry
Features
Maximum heating temperature is 380°C
High resolution LCD displays actual temperature and speed
Brushless DC motor is maintenance free
Aluminum ceramIc coating work plate, allowing immediate heat transfer
External temperature control is possible with temperature sensor PT1000
Digital speed control with maximum speed up to 1500rpm
Maximum stirring quantity of H2O at 5L
Technical parameters:
| Specifications | MS-H-ProA | MS-H-PRO+ | MS-H-PROT | MS-H-S | MS-H380-Pro | MS-H280-Pro |
| Work plate Dimension [WxD] | 0135mm(5 inch) | 0135mm (5inch) | 0135mm (5inch) | 0135mm(5 inch) | 140x140mm | 0135mm(5inch) |
| Workplate material | Aluminum cover with ceramic coating | stainless steel cover with ceramic coating | stainless steel cover with ceramiccoating | stainless steel cover with ceramiccoating | Aluminum cover with ceramic coating | stainless steel cover with ceramic coating |
| Motor type | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DCmotor | Brushless DC motor |
| Stirring positions | 1 | 1 | 1 | 1 | 1 | 1 |
| Max.stirring quantity, [H₂O] | 20L | 20L | 20L | 20L | 5L | 3L |
| Max.magnetic bar [length] | 80mm | 80mm | 80mm | 80mm | 50mm | 50mm |
| Speed range | 100-1500rpm resolution±1rpm | 100-1500rpm resolution±1rpm | 100-1500rpm resolution±1rpm | 0-1500rpm | 200-1500rpm | 200-1500rpm |
| Speed display | LCD | LCD | LCD | Scale | LCD | LED |
| Temperature display | LCD | LCD | LCD | Scale | LCD | LED |
| Heating temperature range | Room temp.-340℃, increment1℃ | Room Temp.-340℃, increment 1℃ | Room Temp.-340℃, increment 1℃ | Room Temp.-340℃ | Room Temp-380℃ | Room Temp-280℃ |
| Heatingliquid temperature control accuracy | ±1℃(<100℃) ±1%(>100℃) | ±1℃(<100℃) ±1%(>100℃) | ±1℃(<100℃) ±1%(>100℃) | ±1℃(<100℃) ±1%(>100℃) | ±1℃(<100℃) ±1%(>100℃) | |
| Overheating temperature protection | 420℃ | 420℃ | 420℃ | 420℃ | 420℃ | 320℃ |
| Temperature displayaccuracy | ±0.1℃ | ±0.1℃ | ±0.1℃ | ±0.1℃ | ±1℃ | |
| External temperature sensor | PT1000 (accuracy±0.2℃) | PT1000 (accuracy±0.2℃) | PT1000 (accuracy±0.2℃) | PT1000 (accuracy±0.2℃) | PT1000 (accuracy±0.2℃) | |
| "Hot"waming | 50℃ | 50℃ | 50℃ | 50℃ | ||
| Data connector | RS232 | RS232 | RS232 | |||
| Protection class | IP21 | IP21 | IP21 | IP21 | IP21 | IP42 |
| Timer function | 1min to 99h59min | 1min to 99h59min | ||||
| Motor rating output | 10W | 10W | 10W | 10W | 1.8W | 3W |
| Power | 720W | 550W | 550W | 530W | 510W | 515W |
| Heating output | 600W | 500W | 500W | 500W | 500W | 500W |
| Voltage,Frequency | 100-120/200-240V, 50/60Hz | 100-120/200-240V, 50/60Hz | 100-120/200-240V, 50/60Hz | 100-120/200-240V, 50/60Hz | 100-120/200-240V, 50/60Hz | 100-120/200-240V, 50/60Hz |
| Dimension [WxDxH] | 280x160x100mm | 160x280x100mm | 160x280x100mm | 160x280x100mm | 320x180x108mm | 150x260x100mm |
| Weight | 2.8kg | 2.8kg | 2.8kg | 2.8kg | 2.2kg | 1.8kg |
| Permissible ambient temperature and humidity | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH | 5-40℃,80%RH |
