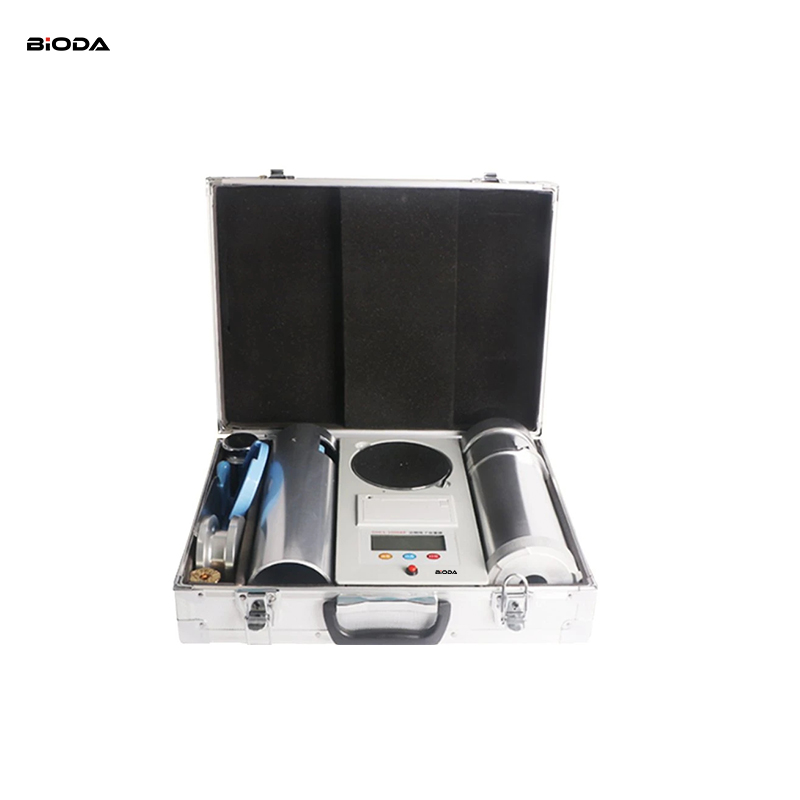

Grain Volume-Weight Meter with Printer GHCS-1000AP

Grain Volume-Weight Meter with Printer GHCS-1000AP

Weight capacity is one of the mandatory inspection items for grain purchase, GHCS-1000AP electronic grain weigher is developed according to LS/T3701-1993 "HGT-1000A Grain Weigher" standard and "Citation Standard" in the standard and GB1353-2009 "Corn" in the new national standard for measuring the weight capacity of grain. The product is developed. The product measures the weight of grain and sets its grade through the standard requirements, so it plays a key role in grain purchase, storage and processing.

The electronic grain weigher is widely used in grain, wheat, sorghum, corn, soybeans and other large and small particles of grain weight measurement.

Features:

1、Automatic printing.

2、Easy to operate.

3, digital presentation of the results.

4.Fast measuring speed and high precision.

GHCS-1000AP Technical parameters:

According to the measurement needs, with 30mm funnel, 40mm funnel fixed

1. Maximum working weight of the loader: 5000±2g.

2. Resolution of the weigher: 1g

3.Capacity: 1000ml±1.0ml

4. Power supply: AC100V-240V 50Hz10W (7.4V battery, charger output voltage 8.4V, 100V-240V AC voltage)

5. Working environment temperature: 5°C-40°C Relative humidity: <90%RH

6.Measurement mode: combined measurement

7. Appearance size: 430mm*330mm*135mm

8.Overall weight: 7.8kg
