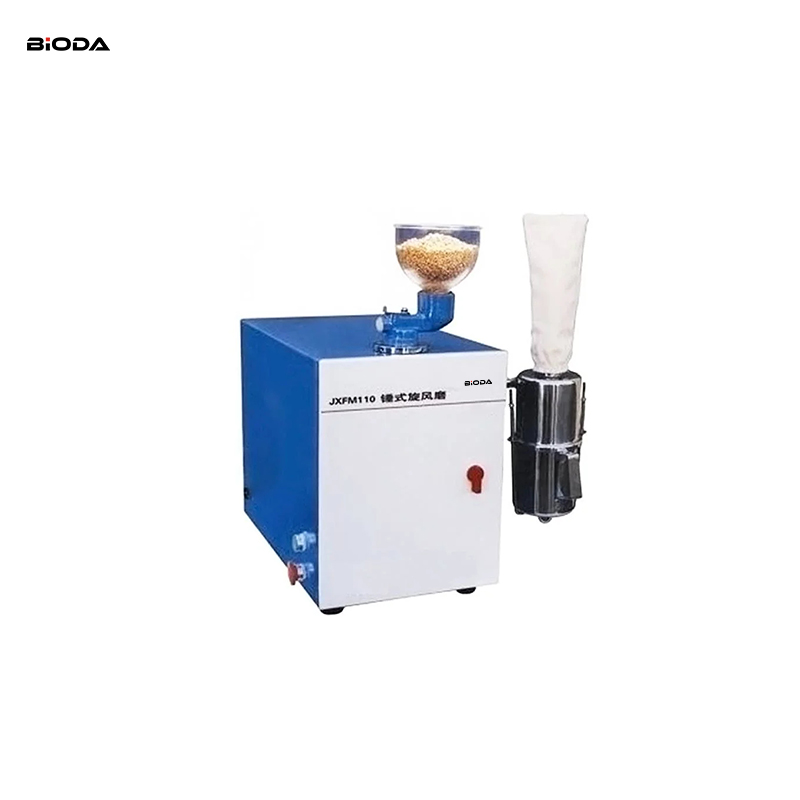

Hammer cyclone mill (semi-automatic) JXFM110

Hammer cyclone mill (semi-automatic) JXFM110

Hammer cyclone mill high speed, high efficiency, pulverized matter fine. The sample is hammered into a fine uniform powder by the high speed mill, and the crushed high speed airflow is prepared into the sample through the stainless steel sieve Jingru integrator. Wheat, grain, corn, rice, etc. can be measured.

Features:

1, high speed, high efficiency, fine pulverized material. The sample is hammered into a fine uniform powder by the high-speed mill, with the high-speed airflow through the stainless steel sieve into the integrator to prepare samples.

2, the box wall pasted domestic advanced sound-absorbing materials, noise lower than similar products at home and abroad

3、The motor has built-in temperature protector, once the motor exceeds the set temperature, it will shut down automatically and restart after the temperature drops to normal.

4、Hammer cyclone mill can be installed directly on the automatic feeder, can effectively control the higher moisture samples and shelled grain samples of the feed rate, improve the crushing effect.

5, crushed samples are suitable for gluten quantity, quality, grain viscosity, wheat landing value, near infrared composition and other indicators of determination.

6, easy to operate, built-in protection switch, the use of safety

7、Hammer cyclone mill is not suitable for the determination of sample moisture.

Technical parameters:

Working power supply: AC220±10V 50Hz

Motor power: 750W

Workshop diameter: 110mm

Rotating speed of grinding hammer: 16800r/min

Sieve plate aperture (mm): 0.5, 0.8, 1.5mm

Weight of the whole machine: 51kg
