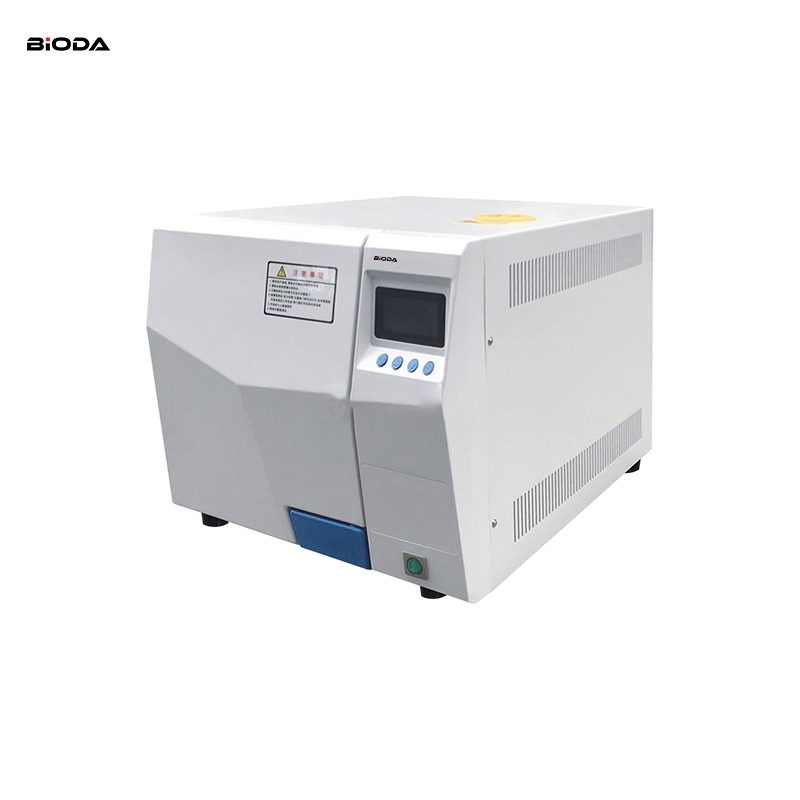

TM-XD20D/ TM-XD24D Table top steam sterilizer
Application
The table type sterilizers are safely autocontrolled, which are designed for the dental clinics, hospitals, school lab. scientific research institutionsand laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culturemedium and biological dressing, food, etc.
Characteristics
• Sterilizing course: Automatic sterilization controlled by computer, easy to operate.
• Maximum temperature: 134℃, suitable for 4-6 minutes flash sterilizing.
• Safe protection of water lacking.
• With over heat and over pressure protection.
• After sterilization it will automatically cut the power and then alarm.
• Fully stainless steel structure.
Technical parameters
MODEL | TM-XD20D | TM-XD24D |
Technical Data | ||
Sterilizing chamber volume | 20L φ250×420mm | 24L φ250×520mm |
Working pressure | 0.22Mpa | |
Working temperature | 134℃ | |
Temperature adjust range | 105-134℃ | |
Timer range | 0-99min | |
Heat average | ≤±1℃ | |
Power | 1.5KW/AC220V.50Hz | |
Sterilizing plate | 340×200×30(3 piece) | 400×200×30(3 piece) |
Dimension | 480×480×380 | 580×480×384 |
Exerior package dimension | 700×580×500 | 800×580×500 |
G.W/N.W | 43/40Kg | 50/45Kg |
