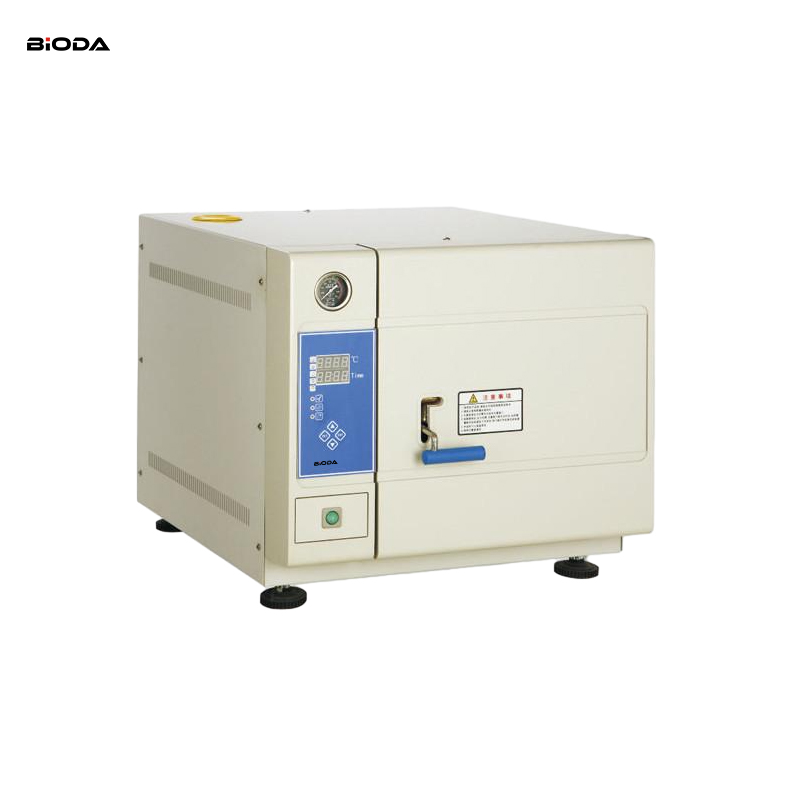

TM-XD35D/TM-XD50D Table top steam sterilizer

TM-XD35D/TM-XD50D Table top steam sterilizer

The product utilizes saturated steam to rapidly and efficiently sterilize articles. It can be used in hospitals, public health centers, health stations,clinics in factories and mines, scientific research institutes, etc, to sterilize medical equipment, su
Send Inquiry

Application

The product utilizes saturated steam to rapidly and efficiently sterilize articles. It can be used in hospitals, public health centers, health stations,clinics in factories and mines, scientific research institutes, etc, to sterilize medical equipment, surgical dressings, glass utensils, solutions,substrata. It can also be used as cooker in plateau areas and be used to make high quality drinking water in industrial and mining enterprises.



Characteristics

• For 4~6 minutes rapidly sterilizin.

• Digital display of working status, touch type key.

• Witprotection of water lacking.

• Exhaust the h 3 fixed .cycles of sterilizing program and adjustable for user.

• The whole process of water adding, temperaturerising, sterilizing, drying steam discharging controlled automatically.

• Steamwater inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

• Safe cool air automatically.

• Door safety lock system.

• With four stainless steel sterilizing plates.

• The chamber of the sterilizer is made of stainless steel.

• Automatically shut off with beep reminding after sterilization.

• With drying function.


Technical parameters

MODEL

TM-XD35D

TM-XD50D

Technical Data

Sterilizing chamber volume

35L

φ300×500mm

50L

φ340×550mm

Working pressure

0.22Mpa

Working temperature

134℃

Temperature adjust range

105-134℃

Timer range

0-99min

Heat average

≤±1℃

Power

2.7KW/AC220V.50Hz

Sterilizing plate

400×200×30(4piece)

500×250×30(4piece

Dimension

730×550×510

770×600×540

Exterior package dimension

810×680×650

880×730×700

G.W/N.W

90/73Kg

105/86Kg
