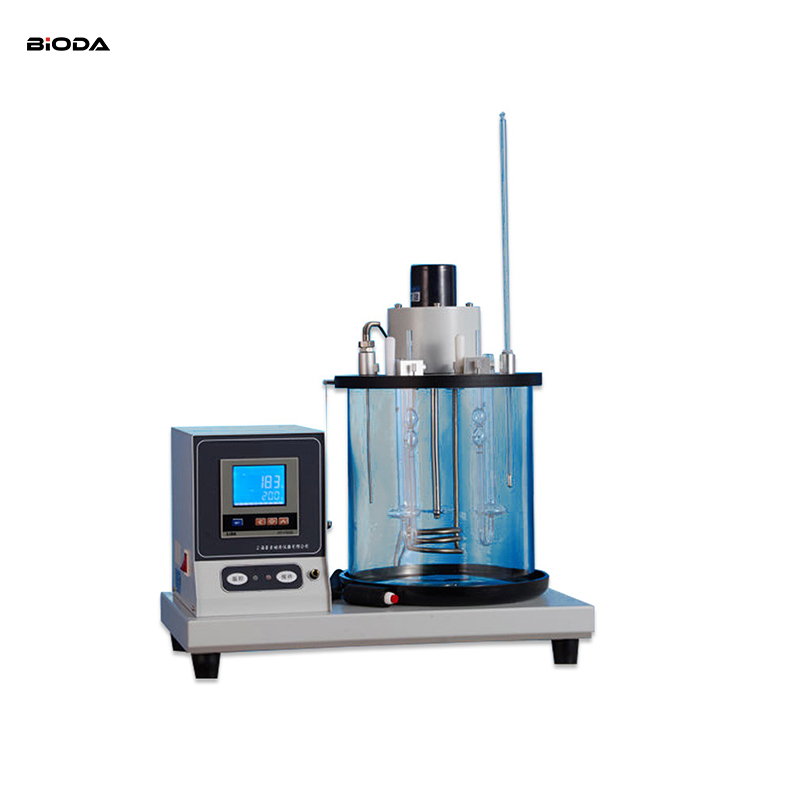

BYD-265BKinematic Viscometer
Summary 1. Equipped with timing. 2. This instrument adopts hard glass bath and electric stirring device.Easy to observe the sample.The temperature in water bath is uniform.
This instrument is designed and made as per the industrial standard of People’s Republic of China SY/T5651 Technical Condition of Petroleum Products Kinematic Viscosity Tester. It is suitable to determine kinematic viscosity of liquid petroleum products(Newtonian fluids)at a constant temperature as per the stipulation in the national standard of People’s Republic of China GB/T265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity.
I. Main technical features
II. Main technical specifications
1. Power supply： AC(220±10%)V，50Hz
2. Total power consumption：≤ 650W 3. Stirring motor： 1200RPM 4. Temperature control range： Ambient to 100℃ 5. Temperature control accuracy： ±0.1℃ 6. Temperature sensor： RTD, Pt100 7. Timing range：0s～9999.9s 8. Ambient temperature： 15℃～35℃ Relative humidity： ≤85％ 9. Capillary viscometer tubes (Pinkevitch viscometer)： 6 pieces in total, inner diameter for each：0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm 10. Dimension： 500mm×310mm×500mm 11. Net weight：11.5kg.
