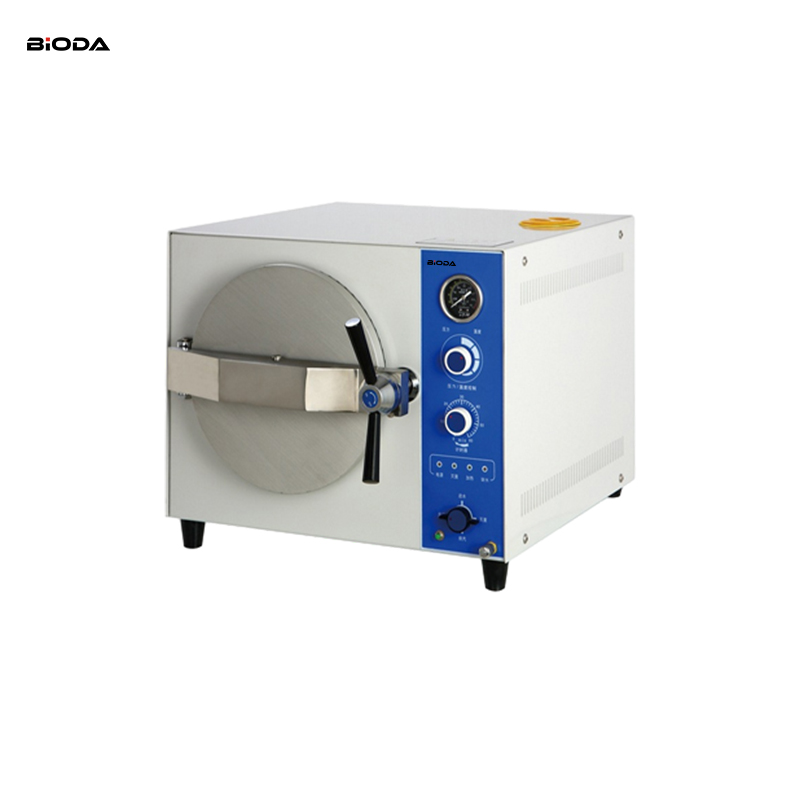

TM-XB20J TM-XB24J Table top steam sterilizer

TM-XB20J TM-XB24J Table top steam sterilizer

The product utilizes saturated steam to rapidly and efficiently sterilize articles. It can be used in hospitals, public health centers, health stations,clinics in factories and mines, scientific research institutes, etc, to sterilize medical equipment, su
Send Inquiry

Application

The product utilizes saturated steam to rapidly and efficiently sterilize articles. It can be used in hospitals, public health centers, health stations,clinics in factories and mines, scientific research institutes, etc, to sterilize medical equipment, surgical dressings, glass utensils, solutions,substrata. It can also be used as cooker in plateau areas and be used to make high quality drinking water in industrial and mining enterprises.


Characteristics

• Indicator light indicates working state.

• For 4~6 minutes rapidly sterilizing.

• Sterilizing temperature and time can be preset.

• Steamwater inner circulation systemno steamdischarge, and the environment for sterilizing will,be clean and dry.

• Over temperature &over pressure auto -protection.

• Safe protection of water lacking.

• Exhaust the cool air automatically.

• With three stainless steel sterilizing plates.

• The chamber of the sterilizer is made of stainless steel.

• Automatically shut off with beep reminding after sterilization.


Technical parameters

MODEL

TM-XB20J

TM-XB24J

Technical Data

Sterilizing chamber volume

20L

φ250×420mm

24L

φ250×50mm

Working pressure

0.22Mpa

Working temperature

134℃

Temperature adjust range

105-134℃

Timer range

0-60min

Heat average

≤±1℃

Power

1.5KW/AC220V.50HzAC110V.60Hz

Sterilizing plate

340×200×30(3piece)

400×200×30(3piece

Dimension

480×480×384

580×480×384

Exerior package dimension

700×580×500

800×580×500

G.W/N.W

44/40Kg

50/45Kg
