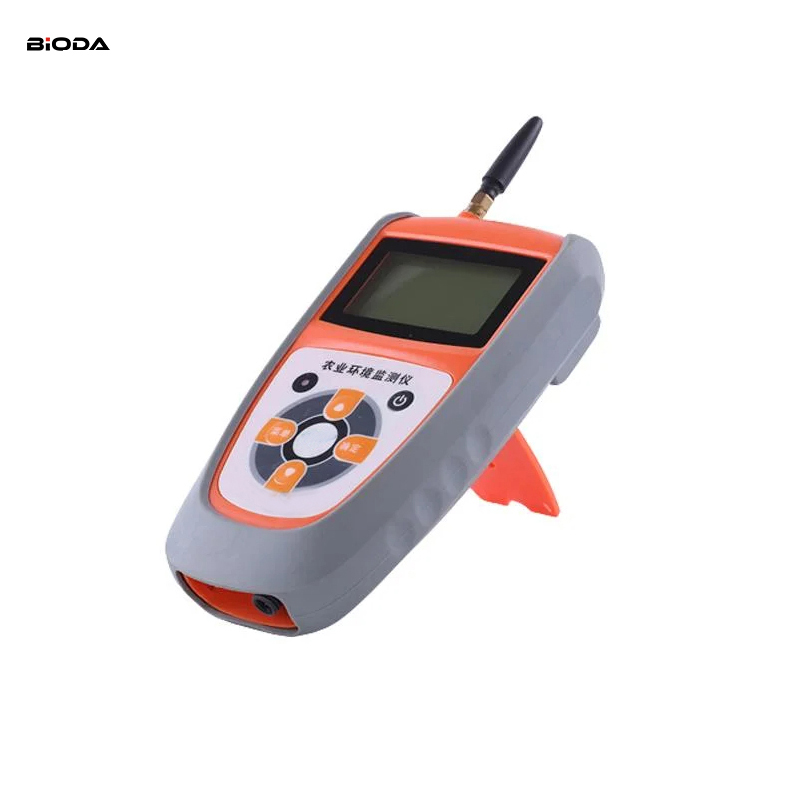

Multi-Parameter Soil Meter
Multi-Parameter Soil Meter
This multi-parameter soil moisture recorder can test all kind of soil moisture in the long run or directly
Difference Between Models:
Model No | Function difference |
TZS-1K | Record 1 parameters: soil moisture |
TZS-2X | Record 2 parameters: soil temperature and moisture |
TZS-3X | Record 3 parameters: soil temperature, moisture, and air temperature |
TZS-5X | Record 5 parameters: soil temperature and moisture, air temperature and moisture, dew point |
Technical parameters:
Soil moisture | |
Unit | % (m3/m3) |
Test range | 0-100% |
Test time | ≤2S |
Absolute error | ≤2% |
Relative error | ≤3% |
Moisture probe working temperature | -10~70°C |
Moisture probe size | ss probe:80mm, Whole length:205mm |
Standard cable length | 1700mm(can custom according to client's requirement, max length: 100 meters) |
Soil temperature | |
Unit | °C |
Test range | -55~99°C |
Test time | ≤2S |
Absolute | ±0.5°C |
Probe length | stainless steel part: 20cm |
Saving data | 2000 groups |
Standard cable length | 1700mm(can custom according to client's requirement, max length: 100 meters) |
Air temperature | |
Range | -40-80ºC |
Accuracy | ±0.4ºC |
Resolution | 0.1ºC |
Air humidity | |
Range | 0-100%RH |
Accuracy | 0.1%RH |
Resolution | 0.1ºC |
Dew point | |
Range | 40-120ºC |
Accuracy | ±0.4ºC |
Resolution | ±3%RH |
