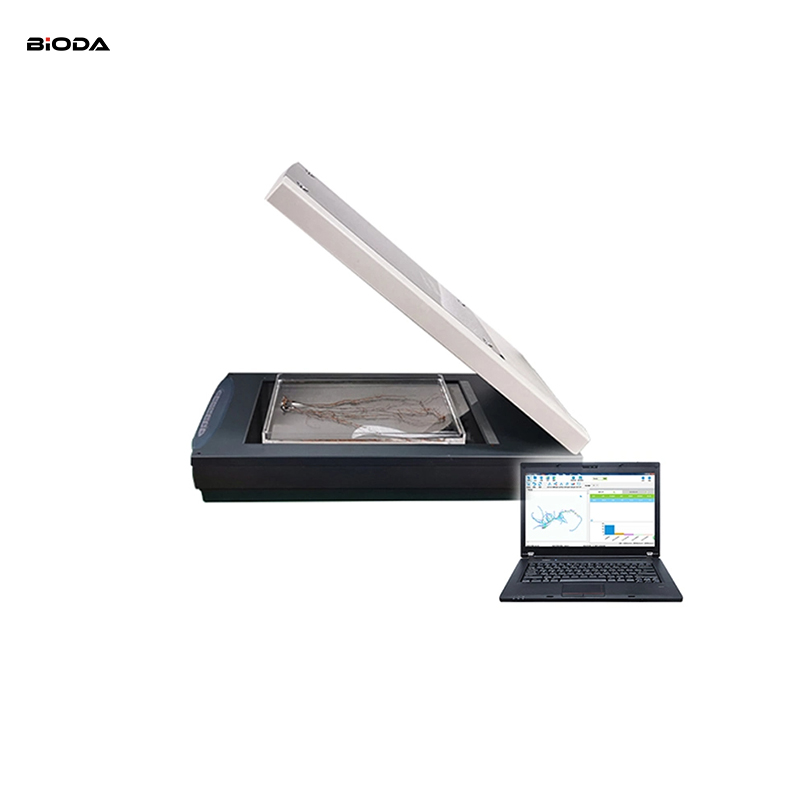

Plant Root Phenotype Analysis Instrument GXY-A
Plant Root Phenotype Analysis Instrument GXY-A
1. Plant root phenotype analysis system is based on image recognition technology. It is professionally used for root analysis of plants after washing the roots in vitro. It can analyze root length, diameter, surface area, volume, root tip number, branch number, etc., and is widely applicable to root morphology and structure research, using non-statistical methods to measure and calculate parameters such as the length of the root system in the overlapping part, and the analysis results are highly accurate.
2. It can be used to solve the problem that root structure and geometric parameters are difficult to obtain. It has the characteristics of convenience, efficiency, and high accuracy, which can improve the work efficiency of practitioners, reduce labor costs, provide rapid multi-parameter root phenotype analysis methods, and serve plant science research.
Features:
1. Clear interface design, modular function design
2. User learning cost is lower, the operation is more convenient and smoother
3. The analysis results are more accurate
Technical parameters:
Model | GXY-A |
Overall parameters | Total root length range: 0-10000mm Total Root Tip Number Range: 0-1000 Projection area range: 0-200000mm² Surface area range: 0-1,000,000mm² Volume range: 0-2000000000mm³ Average root diameter range: 0-20mm Total number of overlaps: 0-10000 Lateral root bifurcation number range: 0-10000 |
Parameters for topological analysis (requires relatively complete root system) | Range of root length at all levels: 0-10000mm Average diameter range of roots at all levels: 0-20mm Number of root connections at each level: 0-100 Root projection area at all levels: 0-200000mm². Surface area of roots at all levels ranges from 0-100000000mm². Root volume range at all levels: 0-2,000,000,000mm³. |
Connection analysis parameters | Average length: the total average length of each root section range: 0-10000mm Average Angle: Total average angle range of each root section: 0-180 degrees Average projected area: Total average range of projected area for each segment: 0-200000mm². Average Surface Area: Total average surface area of each root section range: 0-1,000,000mm². Average volume: total average volume range of each root section: 0-2,000,000,000mm³. Average Diameter: Total average diameter of each root section in the range of 0-20mm. |
Parameters for rhizoma analysis | Number of rhizomes: Number of rhizomes on the root system: 0-1000 Root tumor area: Total surface area of the root tumor: 0-1,000,000mm². Contribution of rhizomes to the total surface area of the root system: 0-100%. Root nodule volume: Total nodule volume range: 0-2,000,000,000mm³. Root tumor volume contribution: the proportion of root tumor in the total volume of root system range: 0-100%. |
