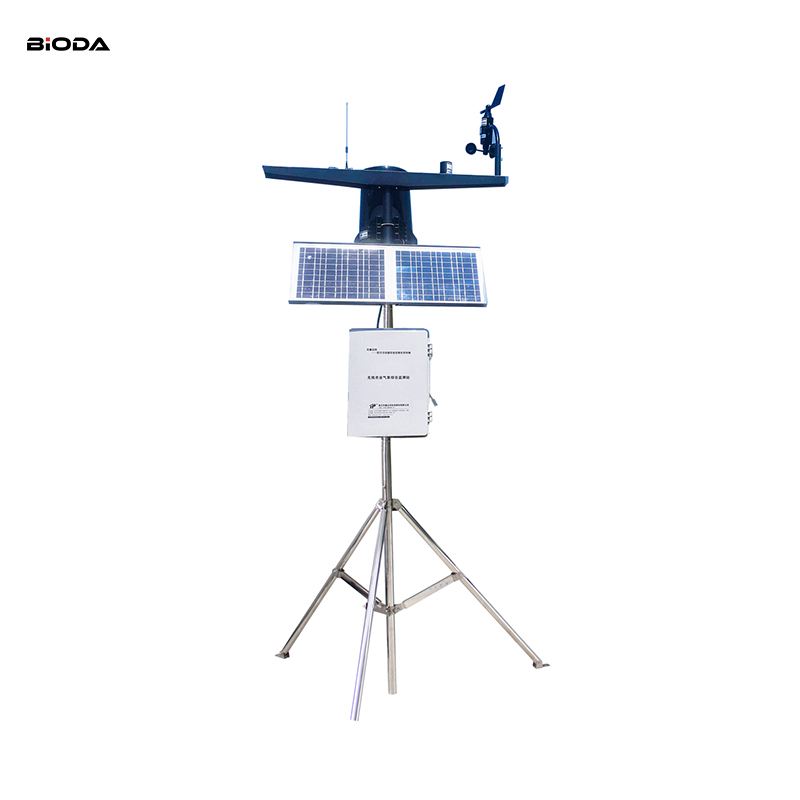

Microclimate Information Collector NL-5G
Microclimate Information Collector NL-5G
Handheld function:
1. It adopts stainless steel material and has good water resistance.
2. Large screen dot matrix LCD display, full Chinese menu operation.
3. The sampling interval can be set at time, and the data can be automatically recorded and stored.
4. The built-in SD card can store up to 40 million sets of data, which can be viewed on the host or imported into the computer for viewing.
5. After unexpected power failure, the data saved in the SD card will not be lost.
6. The probe is consistent and can be connected to more than a dozen kinds of sensors. Sensor interfaces of different meteorological parameters can be interchanged without affecting accuracy.
7. Low power consumption design, the lowest power consumption is only 300uA during operation
Upper computer software function:
1. Display the process curve trend of each parameter, display and view the maximum, minimum and average values, zoom in and zoom out.
2. With the coloring function of setting the over-limit area, the display is more intuitive and brings more convenience to customers.
3. The stored and recorded data can be backed up and saved in EXCEL format for later recall.
4. The reports and graphs of each parameter can be inquired and viewed during the selected time period, and can be printed by computer.
5. The curve coordinates can be set and moved by themselves, making analysis of historical trends clearer and time grasping clearer.
6. Fully compatible with all 32-bit Windows systems on the market.
Technical parameter:
Solar panel: 10wp
Standby adapter power supply: DC9V/1A
Whole machine power: ≤1.5W
Storage capacity: 1M local +4G (SD card):
Coordinate accuracy: 3 decimal places, ±0.05 minutes (≤50M): N: 0~90° E: 0~180°
Waterproof rating: IP54
Measurement index | Parameter | Measurement index | Parameter |
Temperature | Range: -40℃~120℃ Accuracy: ±0.4℃ Resolution: 0.1℃ | Wind direction | Range: wind direction 0~-359° Accuracy: ±3° |
Humidity | Range: 0~100%RH Accuracy: ±3%RH Resolution: 0.1%RH | Wind speed | Range: wind speed 0~45m/s Accuracy: ±(0.3+0.015)m/s |
Light intensity | Range: 0~200000LUX Accuracy: ±2% (0-20000LUK) Resolution: 1LUX | Rainfall | Range: 0~4mm/min Accuracy: ±0.1mm Resolution: 0.1mm |
The optional parameters of the small weather station are as follows:
Digital temperature and humidity sensor (including dew point and without dew point), digital air pressure sensor, digital light intensity sensor, digital photosynthetic active radiation sensor, digital CO2 sensor, digital wind direction sensor, digital wind speed sensor, digital rain sensor, digital floor temperature sensor, Digital soil moisture sensor, digital soil salinity sensor, effective radiation total radiation sensor.
