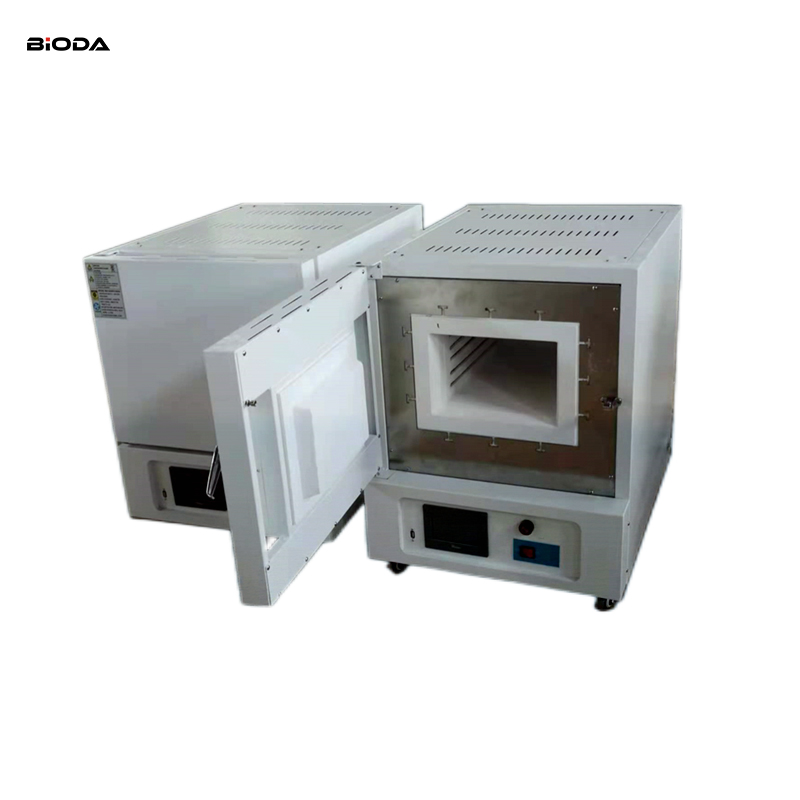

1000℃ Ceramic Fiber Muffle Furnace
Ceramic Fiber Muffle Furnace 1000℃
Integrated ceramic fiber muffle furnace adopts overall design and humanized menu design, adopts high-temperature resistant ceramic fiber vacuum forming as furnace liner, electromechanical integration design, program control, digital display. Energy saving rate of 40%, tested to meet the national standards for C-class furnace. After setting the temperature, the meter controls the heating output by itself, the temperature control is precise and stable. Fault sound and light alarm and automatically cut off the heating output.
Features：
Series of integrated ceramic fiber muffle furnace adopts domestic advanced technology, the furnace shell is made of high quality steel plate by folding edge welding and pulling, the control box and the furnace body is an integrated structure. Beautiful appearance, avoiding the customer installation of cumbersome. The inner lining of the furnace is made of ceramic fiber refractory material with rectangular overall lining. The heating element made of high temperature resistant nickel-chromium wire wound into a spiral is threaded in the wire groove on the top, bottom, left and right of the inner lining. Up and down, left and right heating. Furnace for the sealed structure, the inner furnace and furnace shell with refractory fiber aluminum silicate cotton, diatomaceous earth products masonry for the insulation layer.
Technical parameters:
Model | BZ-2.5-10TC | BZ-4-10TC | BZ-8-10TC | BZ-12-10TC |
Temperature Range | 100~ 1000℃ | 100 ~ 1000℃ | 100 ~ 1000℃ | 100~ 1000℃ |
Fluctuation | ±2℃ | ±2℃ | ±2℃ | ±2℃ |
Display accuracy | 1℃ | 1℃ | 1℃ | 1℃ |
Furnace chamber size | 80*120*200 | 120*200*300 | 200*200*300 | 160*250*400 |
Heating speed | 1-35℃/min | |||
Overall power | 2kw | 3.6kw | 6kw | 10kw |
Electricity source | 220V, 50Hz | 220V, 50Hz | 380V, 50Hz | 380V, 50Hz |
Furnace shell material | The outer shell is made of high quality cold plate treated with phosphoric acid film salt and then sprayed at high temperature, the color is computer gray. | |||
Furnace chamber material | Ceramic fiber refractory materials made of rectangular overall furnace lining, high-temperature furnace on the left and right multi-surface heating | |||
Insulation method | Insulation bricks and insulation cotton | |||
Temperature measurement port | Thermocouples enter the furnace from the back of the upper | |||
Terminal block | Furnace wire terminals are located at the bottom rear of the furnace. | |||
Controller | Located underneath the furnace, built-in control system, compensation wire connects to the furnace. | |||
Heating element | High temperature resistance wire | |||
Standard Packaging | Wooden box | |||
Temperature measurement | K-index Nichrome-NiSi thermocouple | |||
Control systems | PID regulation, display accuracy of 1 ℃ | |||
Complete set of electrical appliances | Adopt brand contactor, cooling fan, solid state relay | |||
Time system | Can set the working time, constant temperature time arrives, automatic shutdown | |||
Over-temperature protection | Built-in secondary over-temperature protection device, double insurance. Over-temperature alarm, over-temperature cut-off | |||
Operation mode | 1-30 segments of the program, constant operation | |||
