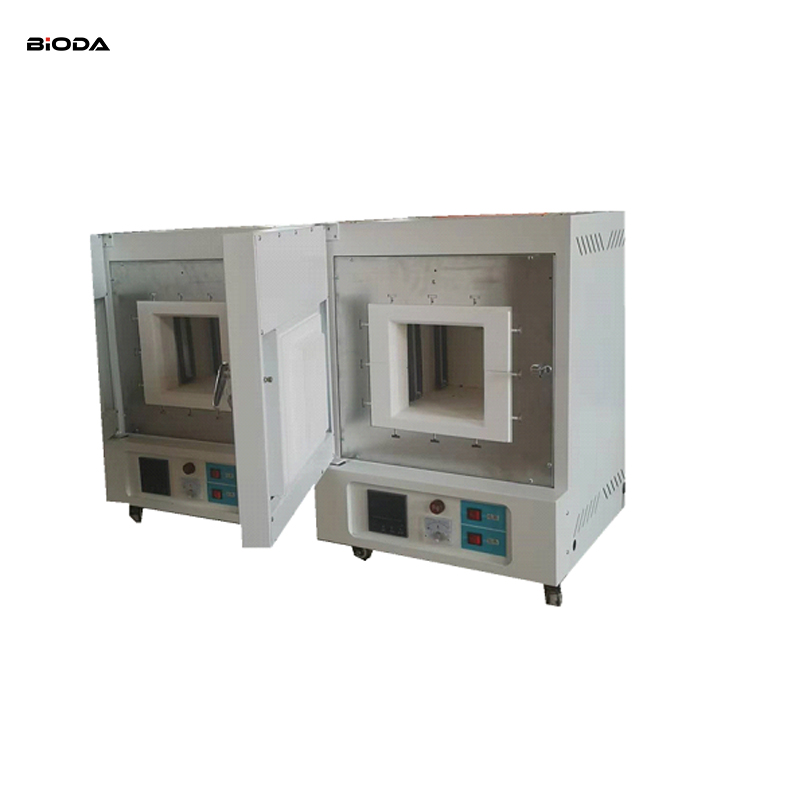

1600℃ Muffle Furnace

1400℃ Integrated high temperature muffle furnace

Scope of application:

Colleges and universities, scientific research institutes, industrial and mining enterprises to do powder roasting, ceramic sintering, high-temperature experiments, material processing, quality testing.

This product is a silicon molybdenum rod as a heating element; the use of intelligent temperature control system, silicon controlled, phase-shifting trigger; furnace chamber using imported technology vacuum adsorption molding 1800-type alumina polycrystalline fiber inorganic materials; furnace body for the double-layer shell, the use of air insulation technology with heat-sensing technology to drive the intelligent air-cooling system, the use of soft-start constant-current control, to prolong the life of the heating element.

Main functions and features:

1, the furnace chamber adopts vacuum adsorption molding 1800-type alumina polycrystalline fiber inorganic materials, good heat preservation performance, durability, high tensile strength, no stray balls, high purity, the inner surface of the furnace chamber is coated with an imported 1800 degrees of high-temperature resistant thermal insulation insulation and heat preservation coatings, which can improve the reflectivity and the heating efficiency of the chamber, and at the same time, extend the service life of the chamber, energy-saving effect is obviously superior to that of ordinary fiber materials;

2、Heating element adopts silicon molybdenum rods, with high heating efficiency and long service life;

3, the use of patchwork hearth design, after strict thermal calculation, durable, not collapse, the hearth is equipped with breathing holes, which can reduce the contraction of the hearth and extend the service life of the hearth;

4、Side opening furnace door;

5, reserved for the data conversion interface, and computer interconnection, can realize a single or multiple electric furnace remote control, real-time tracking, historical records, output reports and other functions; can be installed paperless recording device, to achieve the storage and output of data; [Optional].

6, with over-temperature alarm power-off function and leakage protection measures, safe and reliable operation.

Technical parameters：
