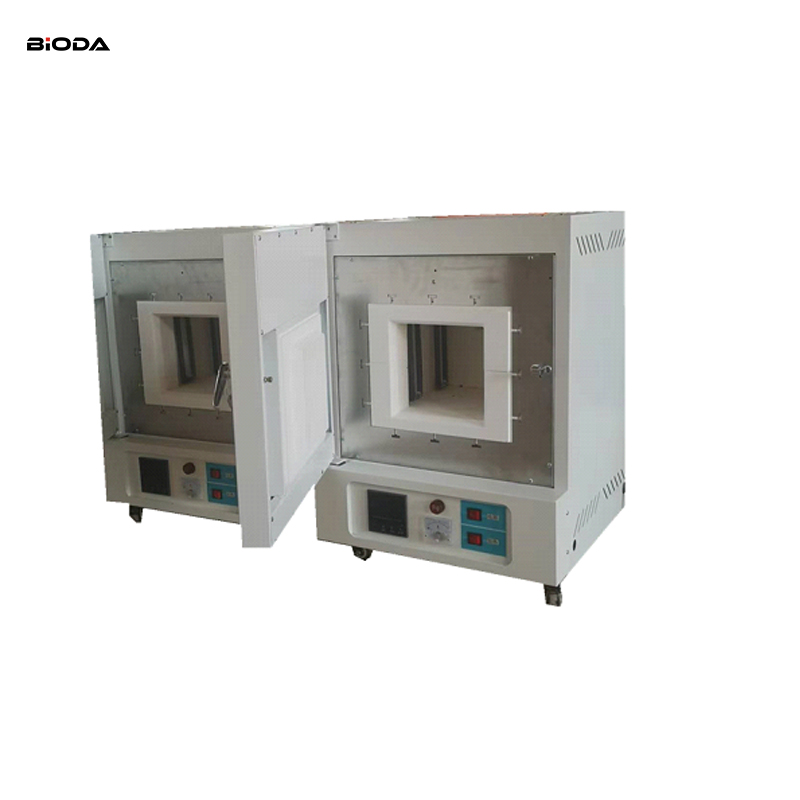

1400℃ high temperature muffle furnace

1400℃ high temperature muffle furnace

Application：

Colleges and universities, scientific research institutes, industrial and mining enterprises to do powder roasting, ceramic sintering, high-temperature experiments, material processing, quality testing.

This product is a silicon carbon rod as a heating element; intelligent temperature control system, silicon controlled, phase-shifting trigger; furnace chamber using imported technology vacuum adsorption molding of high-quality 1600-type alumina polycrystalline fiber inorganic materials; furnace body for the double shell, the use of air insulation technology with thermal inductance technology to drive the intelligent air-cooling system, the use of soft-start constant-current control, to prolong the life of the heating element。

Features：

1、Furnace chamber adopts vacuum adsorption molding 1600 type alumina polycrystalline fiber inorganic materials, good heat preservation, durable, high tensile strength, no miscellaneous balls, high purity, energy saving effect is obviously better than ordinary refractory materials;

2、Heating element adopts silicon carbon rod, high heating efficiency, long service life;

3、Adopting patchwork hearth design, after strict thermal calculation, durable, not collapse, the hearth is equipped with breathing holes, which can reduce the contraction of the hearth and prolong the service life of the hearth;

4, side-opening furnace door, with open door power failure function;

5, reserved for the data conversion interface, and computer interconnection, can realize a single or multiple electric furnace remote control, real-time tracking, historical records, output reports and other functions; can be installed paperless recording device, to achieve the data storage, output; [optional].

6、With over-temperature alarm power-off function and leakage protection measures, safe and reliable operation.

Technical parameters：
