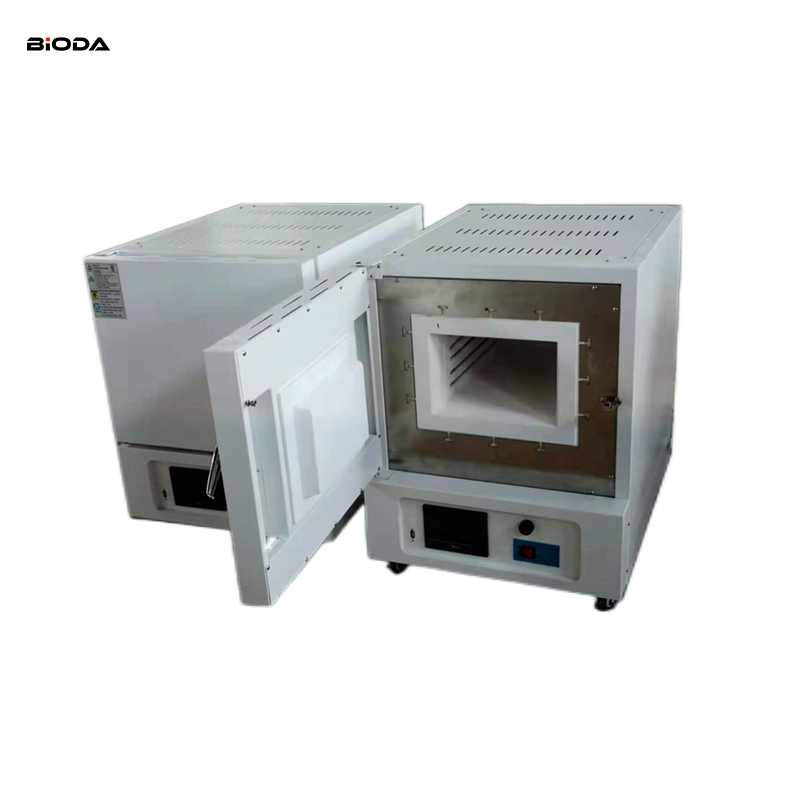

1200℃ ceramic fiber muffle furnace
1200℃ Ceramic fiber muffle furnace
One-piece ceramic fiber muffle furnace adopts overall design and humanized menu design, adopts high-temperature resistant ceramic fiber vacuum forming as furnace liner, electromechanical integration design, program control, digital display. Energy saving rate of 40%, tested to meet the national standards for C-class furnace. After setting the temperature, the meter controls the heating output by itself, the temperature control is precise and stable. Fault sound and light alarm and automatically cut off the heating output.
Product Features:
Series of integrated ceramic fiber muffle furnace adopts domestic advanced technology, furnace shell made of high-quality steel plate by folding edge welding and pulling, control box and the furnace body is an integrated structure. Beautiful appearance, avoiding the customer installation of cumbersome. The inner lining of the furnace is made of ceramic fiber refractory material with rectangular overall lining. The heating element made of high temperature resistant nickel-chromium wire wound into a spiral is threaded in the wire groove on the top, bottom, left and right of the inner lining. Up and down, left and right heating. Furnace for the sealed structure, the inner furnace and furnace shell with refractory fiber aluminum silicate cotton, diatomaceous earth products masonry for the insulation layer.
Model | BZ-2.5-12TC | BZ-5-12TC | BZ-10-12TC | BZ-12-12TC |
Temperature Range | 100~ 1200℃ | 100 ~ 1200℃ | 100 ~ 1200℃ | 100~ 1200℃ |
Fluctuation | ±2℃ | ±2℃ | ±2℃ | ±2℃ |
Display accuracy | 1℃ | 1℃ | 1℃ | 1℃ |
Furnace chamber size | 80*120*200 | 120*200*300 | 160*250*400 | 200*300*500 |
Heating speed | 1-35℃/min | |||
Overall power | 2.kw | 4kw | 8kw | 10kw |
Voltage | 220V, 50Hz | 220V, 50Hz | 380V, 50Hz | 380V, 50Hz |
Furnace Shell Materials | The outer case shell is made of high-quality cold plate by phosphoric acid film salt treatment after high temperature spraying, the color is computer gray. | |||
Furnace chamber material | Rectangular monolithic furnace lining made of ceramic fiber refractory, high-temperature furnace heating on all sides, top, bottom, left, right and left | |||
Insulation Methods | Insulation bricks and insulation wool | |||
Temperature measurement port | The thermocouple enters from the top rear of the furnace | |||
Terminal block | The heating wire terminal is located at the lower rear of the furnace body. | |||
Controller | Located underneath the furnace body, with built-in control system and compensation lead to the furnace body | |||
Heating element | High Temperature Resistance Wire | |||
Standard Packaging | Wooden case | |||
Temperature measurement | K scale NiCr-NiSi thermocouples | |||
Control systems | PID regulation, display accuracy 1℃ | |||
Complete set of electrical appliances | Adopt brand contactor, cooling fan, solid state relay | |||
Time system | Working time can be set, constant temperature time reaches, automatic shutdown | |||
Over-temperature protection | Built-in secondary over-temperature protection device, double insurance. Over-temperature alarm, over-temperature cut-off | |||
Operation mode | Can be 1-30 sections of the program morning, constant operation | |||
