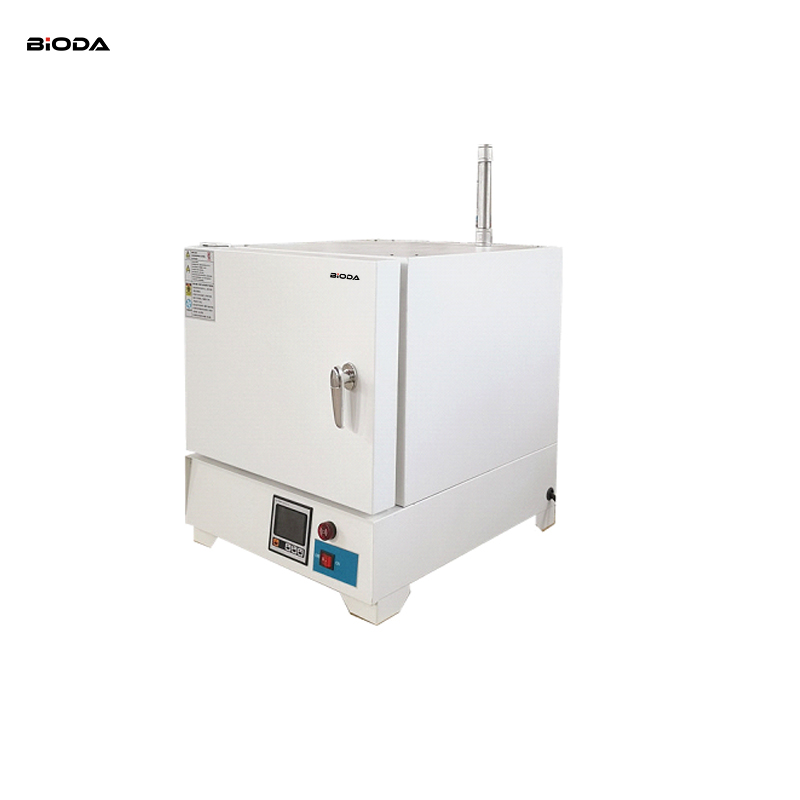

1000℃ ash content muffle furnace
Ash content meter muffle furnace 1000℃
Overview of use:
The ash content meter is a new generation of intelligent product with high performance mechatronics, which can be used to measure the ash content of raw materials such as plastics, chemicals, food, building materials, and materials. The upgraded product improves the organic matter exclusion function.
Features:
The ash content meter adopts domestic XJ technology. The furnace shell is made of steel plates that are folded, welded and drawn. The control box and the furnace body are integrated structures. The appearance is beautiful and avoids the cumbersome installation for customers. The furnace has a sealed structure, and refractory fiber aluminum silicate wool and diatomite products are used as insulation layers between the inner furnace and the furnace shell. The furnace door and chimney exhaust device are opened on the left side for easy operation. Beautiful appearance, exquisite craftsmanship, sturdy and durable, reasonable overall design and long service life.
Temperature control:
The ash content measuring box-type over-temperature alarm device adopts an overall design and a humanized menu design, and adopts industrial PID self-tuning control technology. The LCD wide window display makes the indication clear and intuitive. Microcomputer intelligent control solves problems such as temperature overshoot, and the temperature control effect is HAO. After setting the temperature, the instrument automatically controls the heating output, and the temperature control is accurate and stable. Over-temperature alarm and automatic cut off heating output. It has the function of starting the timer or starting the constant temperature after reaching the set temperature.
Technical parameters:
Model | BZH-2.5-10 | BZH-4-10 | BZH-8-10 | BZH-12-10 |
Temperature range | 100~ 1000℃ | |||
Volatility | ±2℃ | |||
Display accuracy | 1℃ | |||
Furnace size | 80*120*200 | 120*200*300 | 160*250*400 | 200*300*500 |
Heating rate | 1-35℃/min | |||
Total power | 2.kw | 4kw | 8kw | 12kw |
power supply | 220V, 50Hz | 380V, 50Hz | ||
Furnace shell material | The outer box shell is made of cold plate, which is processed and then sprayed with high-temperature plastic. The color is computer gray. | |||
Furnace material | The rectangular integral furnace lining made of high-aluminum refractory material generates heat from all sides of the high-temperature furnace. | |||
Insulation method | Insulation bricks and insulation cotton | |||
Thermometer port | The thermocouple enters from the back and top of the furnace body | |||
Binding post | The heating furnace wire terminal is located at the rear and lower part of the furnace body | |||
controller | Located under the furnace body, it has a built-in control system and the compensation wire is connected to the furnace body. | |||
Heating element | Corrosion-resistant resistance wire | |||
standard packaging | wooden box | |||
temperature measurement | K-grading nickel-chromium-nickel silicon thermocouple | |||
Control System | PID adjustment, display accuracy 1℃ | |||
Complete sets of electrical appliances | Using brand contactors, cooling fans, solid state relays | |||
time system | The working time can be set, and the machine will stop automatically when the constant temperature time is reached. | |||
Over temperature protection | Built-in secondary over-temperature protection device, double insurance. Over-temperature alarm, over-temperature cut-off | |||
Operation mode | Fixed value, timing, constant operation | |||
