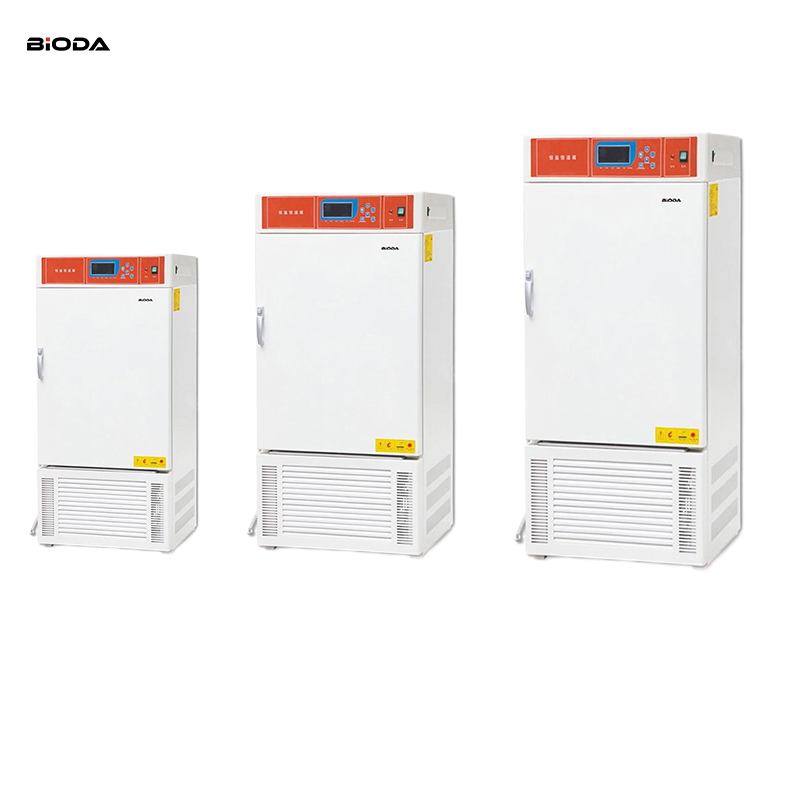

Balance Constant Temperature And Humidity Chamber
Balance Constant Temperature And Humidity Chamber
This series of products has precise temperature and humidity control systems, which provide various environmental simulation conditions required for industrial research and biotechnology testing. Therefore, it can be widely used in sterility testing and stability inspection of drugs, textiles, food processing, etc., as well as testing of raw material performance, product packaging, and product life of industrial products.
Features:
1. LCD temperature and humidity controller, PID control temperature and humidity, the data is accurate and reliable.
2. Made of high-quality stainless steel liner with semi-circular corners, easy to clean, and the shelf spacing inside the box is adjustable.
3. All imported compressors, environmentally friendly fluorine-free refrigerant (R404a), low energy consumption, promote energy saving.
4. Imported low-noise roller fans and unique air duct design ensure uniform distribution of temperature and humidity in the studio.
5. Bypass refrigeration capacity control technology and dynamic precision constant temperature and humidity control system ensure uninterrupted and reliable operation for a long time.
6. Built-in rapid humidification device: automatic adjustment of water level height and alarm function to ensure stable humidification capacity and long-term reliable operation.
7. The LHS series has a printing function and a USB interface, which can print and record temperature and humidity changes in real time. (Already equipped)
8. Set up an independent temperature limit alarm system, which will automatically interrupt when the temperature exceeds the limit to ensure safe operation of the experiment and no accidents. (Already equipped)
Technical parameters:
Model | BHS-100CH | BHS-150CH | BHS-150HC | BHS-250HC | BHS-500HC | BHS-800HC | BHS-1000HC |
Voltage | AC 220V 50HZ | AC 380V 50HZ | |||||
Temperature control range | Rt+10℃-85℃ | 0℃-60℃ | |||||
Temperature resolution | 0.1℃ | ||||||
Temperature control accuracy | ±0.5℃ | ±0.3℃ | |||||
Temperature fluctuation / uniformity | ±1℃/±3℃ | ±0.5℃/±2℃ | |||||
Temperature control range | 80%RH-95%RH | 20%-95%RH/40%-95% RH | |||||
Humidity deviation | ±3%RH | ||||||
Input power | 1400W | 1500W | 2000W | 2500W | 4000W | 4300W | |
Liner size (mm) | 500*400*550 | 500*505*700 | 550*520*900 | 720*660*1080 | 900*660*1440 | 900*700*1640 | |
Dimensions (mm) | 650*800*1300 | 660*700*14750 | 720*720*1675 | 900*860*1880 | 1400*880*1700 | 1440*920*1900 | |
Carrier tray | 3 | 4 |
