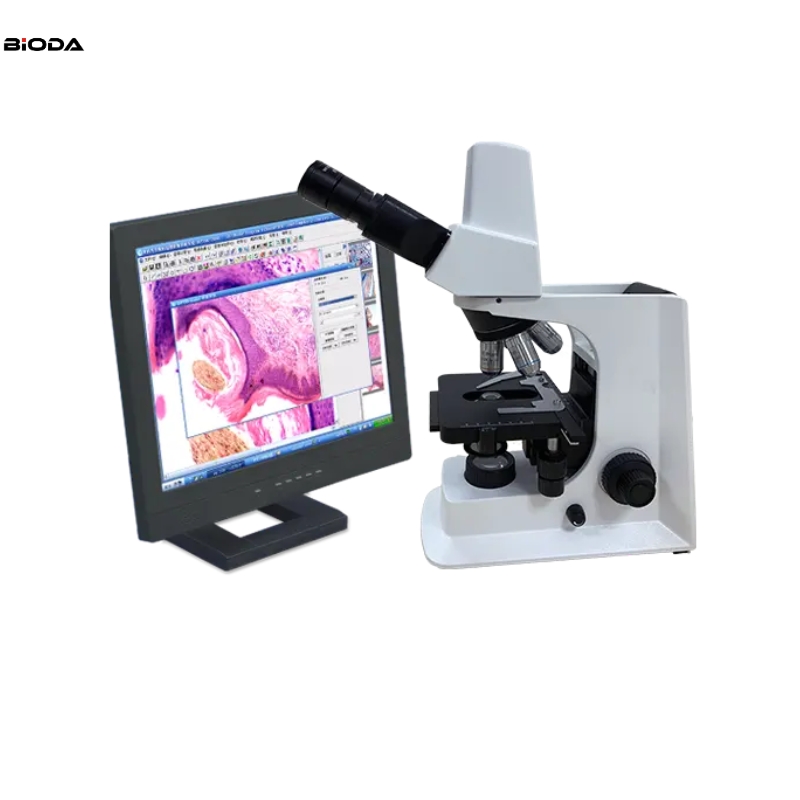

SMART-E500 Digital Microscope

Performance characteristics:● Excellent OTICS infinity optical system, outstanding resolution and definition.● Ori

Send Inquiry

● Excellent OTICS infinity optical system, outstanding resolution and definition.

● Original integrated stand for excellent stability.

● Unique aspheric illumination system, provide bright and comfortable lighting.

● Various colorful matching looking can provide lively environment and happy mood.

● Various accessories for upgrading.

● Back handle and observing hole convenient for carry and operation.

● Alternative color for main body.

Smart-E Digital Microscope

● Wire winding device convenient for carry and storage (optional)

Smart-E Digital Microscope

● Phase contrast unit, Independent phase contrast unit (apply to infinity optical system)

Smart-E Digital Microscope

● Polarizer, analyzer for simple polarizing unit.

Smart-E Digital Microscope

● Dry Dark Field Condenser

Smart-E Digital Microscope

● Mirror

Dustproof, moisture-proof, built-in chip.
Light distribution20:80, eyepiece observation synchronized with digital imaging without switching.
Built-in 5MP digital camera system,1/2.8’’CMOS colorsequential scanning.
0 connection without external power supply.
Available for WINDOWS system.

Items	Specification	SMART-E500
Eyepiece	WF 10X-20mm	●●
Infinity EPlan Objective	4X	●
	10X	●
	40X/0.65 (S)	●
	100X/1.25 (Oil) (S)	●
Seidentopf Binocular Head	Inclined 30°,Rotatable 360°,Interpupilary Distance: 50-75mm	●
Nosepiece	Quadplex	●
Mechanical Stage	Stage Size: 145mm×140mm Travel: 76mm×52mm, Scale: 0.1mm,Two Slide Holder	●
Condenser	Abbe N.A. 1.25(Iris Diaphragm)	●
Illumination	3W LED Illumination Systems	●
	12V/20W Halogen Lamp	○
	12V/30W Halogen Lamp	○
Image Systems		5 MP Pixel

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

Packing Size: 550mm×380mm×290mm Gross Weight: 8 kgs Net Weight: 7 kgs

SMART-E500 Digital Microscope Size(mm)
