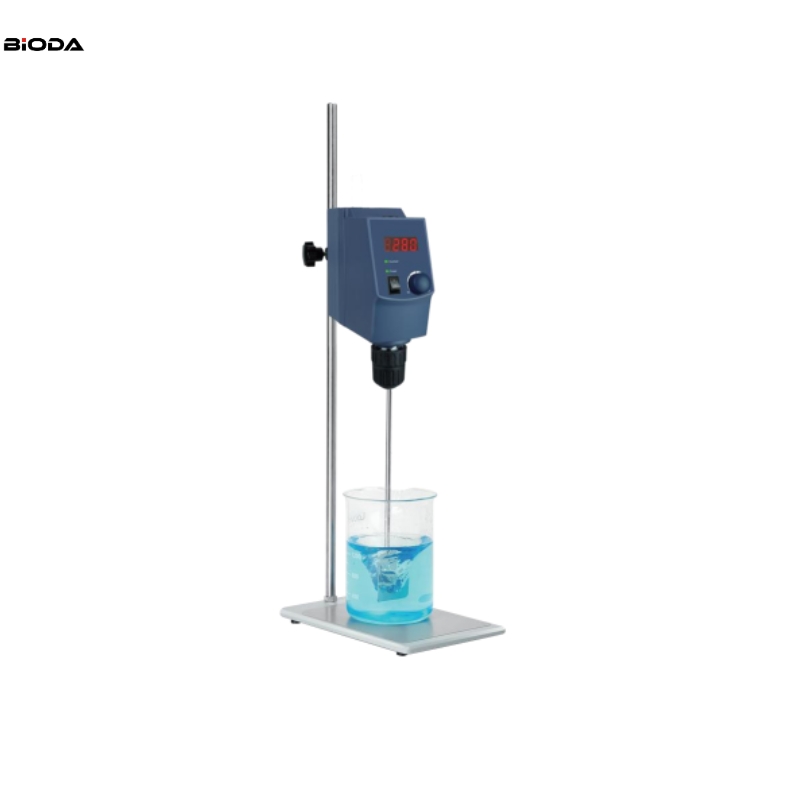

OS20-S OS40-S LED Overhead Stirrer
Technical parameters:SpecificationsOS20-SOS40-SMax.stirringquantity(H2O)20L40LMotor typebrushless DC motorbr
Send Inquiry
Technical parameters:
Specifications | OS20-S | OS40-S |
Max. stirring quantity(H2O) | 20L | 40L |
Motor type | brushless DC motor | brushless DC motor |
Motor input power | 60W | 120W |
Motor output power | 50W | 100W |
Voltage | 100-220V, 50/60 Hz | 100-220V, 50/60 Hz |
Power | 70W | 130W |
Speed range | 50-2200rpm | 50-2200rpm |
Speed display accuracy | ±3rpm | ±3rpm |
Speed display | LED | LED |
Overload protection display | LED lights | LED lights |
Max. torque | 40Ncm | 60Ncm |
Viscosity max. | 10000mPas | 50000mPas |
Chuck range diameter | 0.5-10mm | 0.5-10mm |
Dimension[WxHxD] | 83x220x186mm | 83x.220x186mm |
Weight | 2.8kg | 2.8kg |
Protection class | IP42 | IP42 |
Permissible ambient temperature and humidity | 5-40°C, 80%RH | 5-40°C 80%RH |
