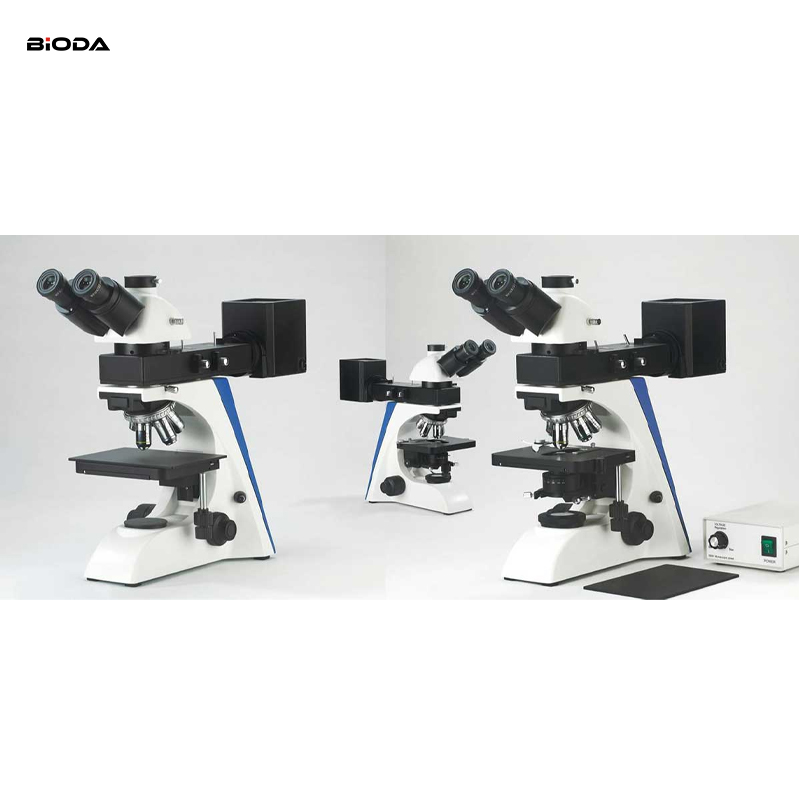

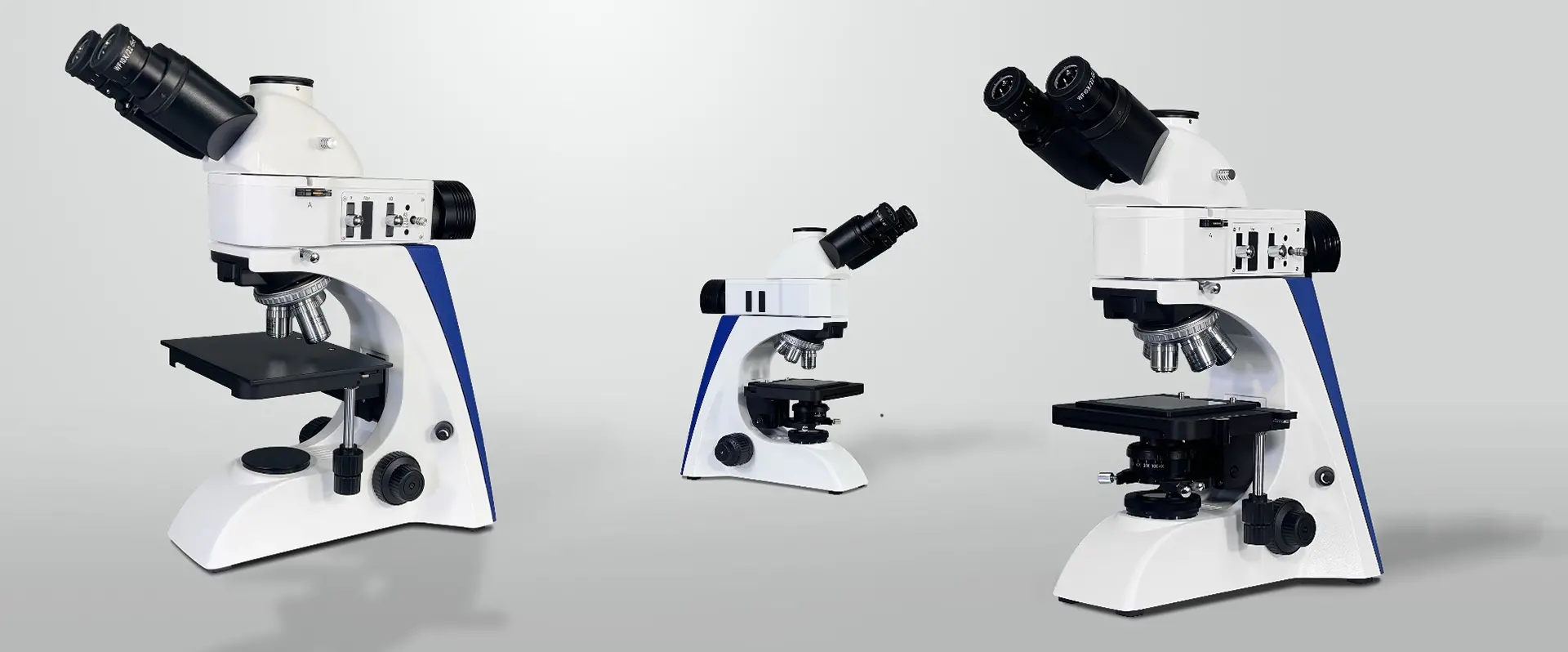

Dark Bright Field Digital Metal Analysis Upright Polarizing Metallurgical Microscope for Sale

Metallurgical LWD Infinity

Plan Objectives

LMPlan FL 5×

(Semi Apochromatic Objective)

0.15

21.00

●

LMPlan FL 10×

(Semi Apochromatic Objective)

0.30

20.00

●

LMPlan FL 20×

(Semi Apochromatic Objective)

0.40

15.00

●

LMPlan FL 50×

(Semi Apochromatic Objective)

0.75

4.25

●

LPL 80×

0.80

0.85

○

LMPlan 100×（Dry）

(Semi Apochromatic Objective)

0.85

3.00

○

Metallurgical LWD Infinity

Plan Objectives for  Bright/Dark Field

M PLAN  5× BD

0.15

7.40

●

M PLAN 10× BD

0.25

11.50

●

M PLAN 20× BD

0.40

4.80

●

M PLAN 50× BD

0.75

1.90

●

Eyepiece

WF10X／22mm （adjustable）

●

●

●

●

WF10X／22mm （adjustable, reticule 0.1mm）

●

●

●

●

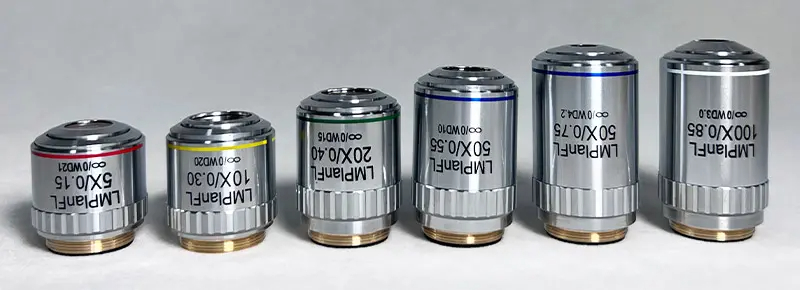

Metallurgical LWD Infinity Plan Objective

LMPlan FL 5×/0.15

(Semi Apochromatic Objective)

W.D=21.00mm

●

●

LMPlan FL 10×/0.30

(Semi Apochromatic Objective)

W.D=20.00mm

●

●

LMPlan FL 20×/0.40

(Semi Apochromatic Objective)

W.D=15.00mm

●

●

LMPlan FL 50×/0.75

(Semi Apochromatic Objective)

W.D=10.00mm

●

●

LPL80X／0.80

W.D=0.85mm

○

○

LMPlan FL 100×/0.85 (Dry)

(Semi Apochromatic Objective)

W.D=3.00mm

○

○

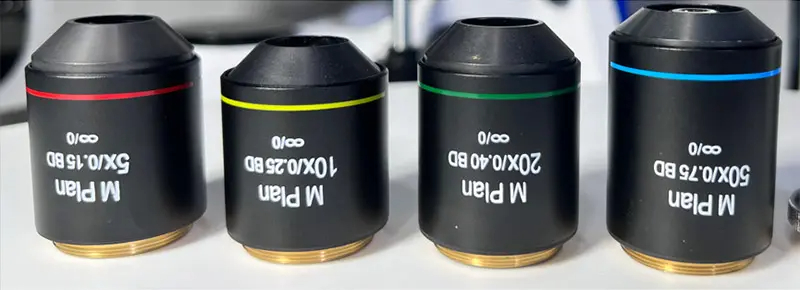

Metallurgical LWD Infinity Plan Objectives for   Bright & Dark Field

M PLAN  5×／0.15 BD

W.D=7.40mm

●

●

M PLAN 10×／0.25 BD

W.D.= 11.50mm

●

●

M PLAN 20×／0.40 BD

W.D.= 4.80mm

●

●

M PLAN 50×／0.75 BD

W.D.= 1.90mm

●

●

Seidentopf Trinocular Head

Inclined 30°,rotatable 360°,

Interpupilary distance: 48mm～76mm
Light distribution (both): 100: 0 （100% for eyepiece）

                      80:20  (80% for trinocular head and 20% for eyepiece)

●

●

●

●

Nosepiece

Quintuple

●

●

Quadplex （specially for bright /dark field objectives M26x1/36"）

●

●

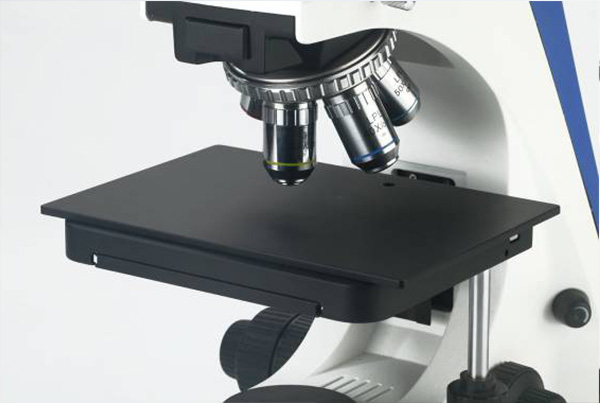

Mechanical Stage

Stage size: 200mm x 150mm  Travel range: 77mm x 52mm

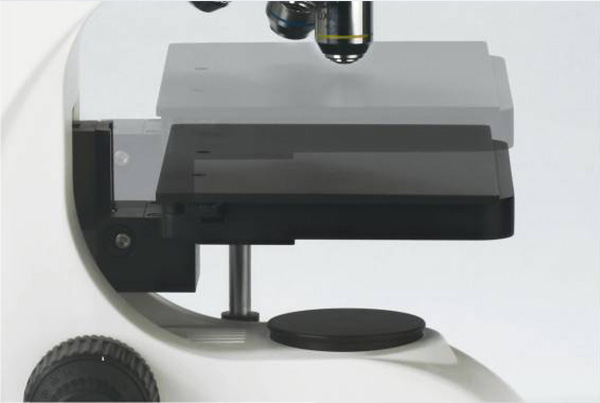

Stage fast lowering unit: Up-Down moving range can be increased 50mm.

●

●

Stage size: 182mm x 140mm, Travel range: 77mm x 52mm

●

●

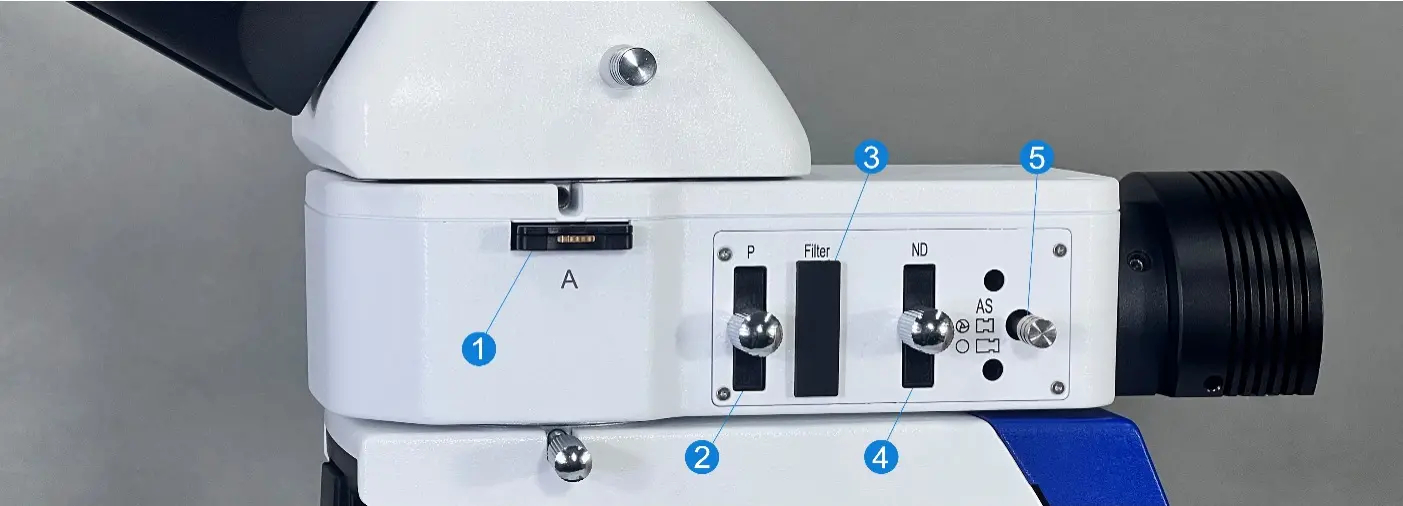

Polarizing Unit

Polarizer /Analyzer

●

●

●

●

Condenser

Abbe N.A.1.25 , with Iris Diaphragm.

●

●

Coaxial Coarse and

Fine Focusing Unit

Coarse stroke: 25mm,

Fine stroke per rotation: 0.2mm, fine division 2 μm, Tightness adjustment, upper distance limiter.

●

●

●

●

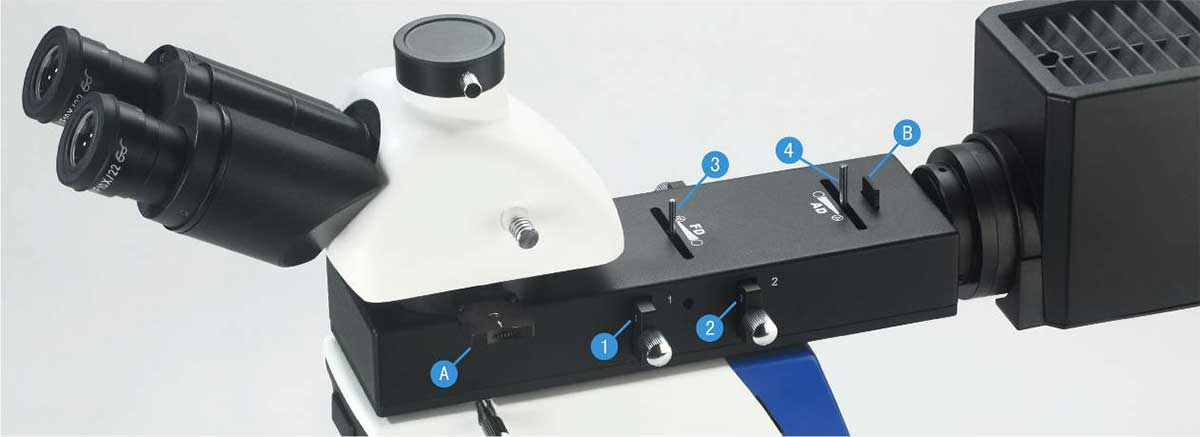

Reflecting Illumination

5WLED lamp (Input voltage: 100V～240V)

●

●

12V/50W Halogen lamp (Input voltage: 100V～240V)

○

●

○

●

10WLED lamp DC input (Universal voltage: 100V~240V)

○

○

Transmitting Illumination

5WLED lamp (Input voltage: 100V～240V)

●

12V/30W Halogen lamp (Input voltage: 100V～240V)

○

●

10WLED lamp DC input (Universal voltage: 100V~240V)

○

Filter

Blue

○

○

○

○

Green/ Amber/ Grey

○

○

○

○

C-Mount

1 X /0.35X/0.75X/0.5X( Focus Adjustable)

○

○

○

○
