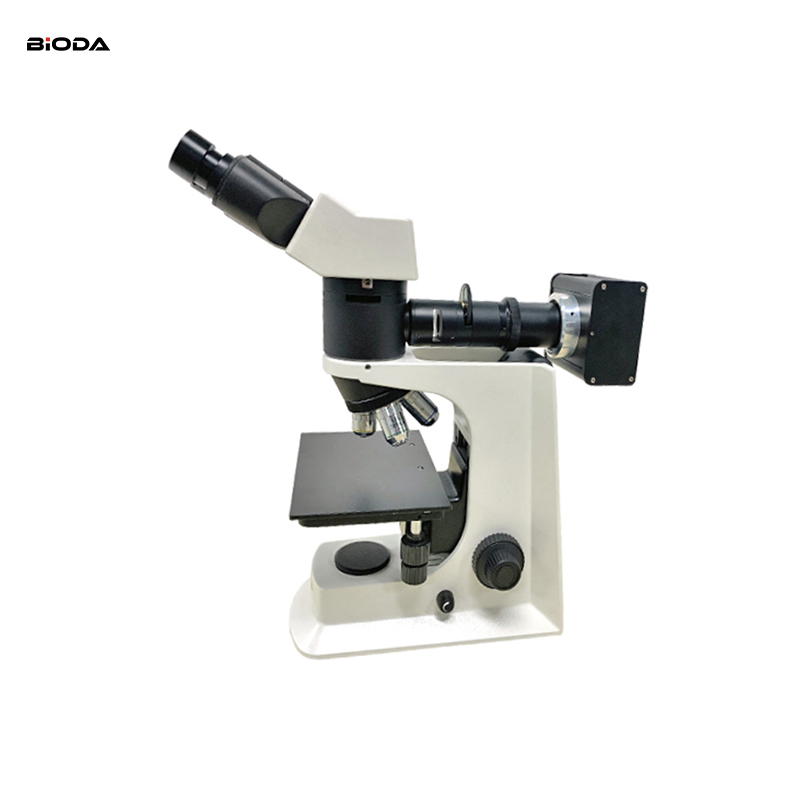

Electronics Metal Materials Minerals Geology Analysis Binocular Upright Metallurgical Microscope
Description

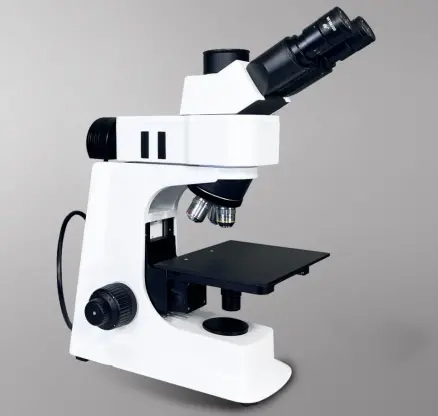

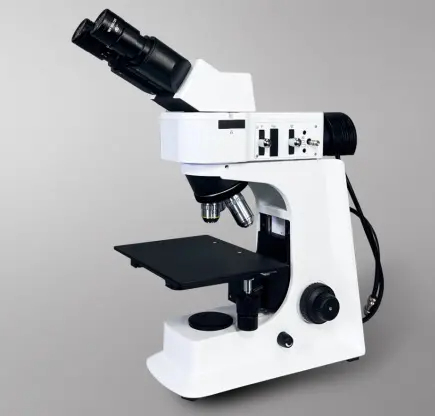

MIT200 MIT200-TR

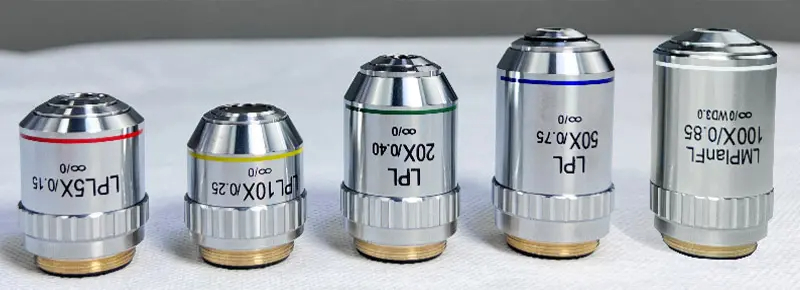

L.W.D Metallurgical Objective

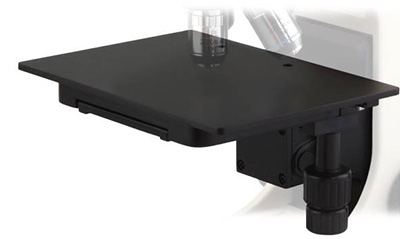

200mmX140mm Stage

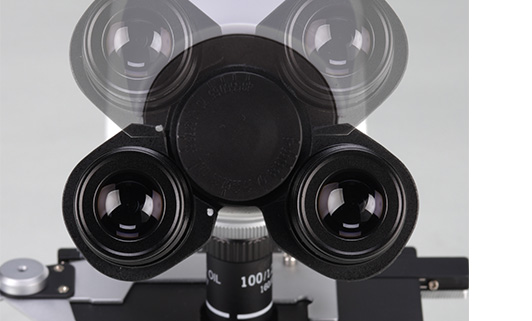

● New designed and humanized butterfly binocular Head-Tubes which can be 360° rotated to raise observing Height position than normal tubes to be more convenient for users with different height.

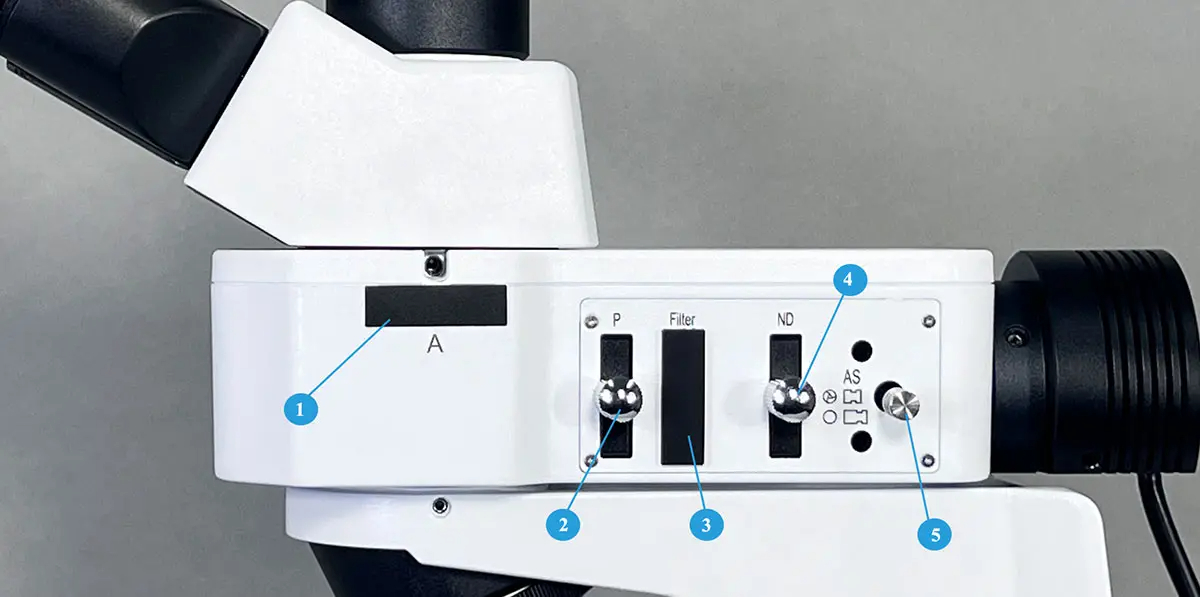

EPI reflection illumination device(LED lamp version)
1. Analyzer 2. Polarizer 3. Filter switch handle 4. Ground glass slider 5. Aperture diaphragm
MIT200 Metallurgical Microscope Outfits
Items | Specification | MIT200 | |
Eyepiece | WF10X/20mm (High eyepoint) | ● | |
WF10X/20mm(H, adjustable Focus,Reticule 0.1mm) | ● | ||
Long Working Distance Infinity Plan Objective (no cover glass) | LPL 5×/0.15 | W.D=15.00mm | ● |
LPL 10×/0.25 | W.D=18.17mm | ● | |
LPL 20×/0.4 | W.D=8.7mm | ○ | |
LPL 50×/0.75 | W.D=2.55mm | ● | |
LPL 80×/0.8 | W.D=0.85mm | ○ | |
LMPlan FL 100×／0.85(Dry) | W.D=3.00m | ○ | |
Swiveling Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance: 48 -75mm | ● | |
Swiveling Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance: 48 -75mm Light Distribution 80:20 | ○ | |
Nosepiece | Quadplex | ● | |
Mechanical Stage | Stage Size: 200×140mm, Travel : 76mm×52mm Coaxial Coarse and Fine Focusing Knobs | ● | |
Reflection Illumination | 5WLED Warm lamp (Input voltage：100V～240V) | ● | |
Filter for Refection Illumination (Ф2 1mmn) | blue, green, amber, grey | ○ | |
Polarizing Attachment | Analyzer/ Polarizer | ○ | |
C-mount | 1× | ○ | |
0.5X （Focus Adjustable） | ○ | ||
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
MIT200 Packing Size: 570mm×275mm×450mm Gross Weight: 10.5 kgs Net Weight: 8 kgs
